73
ATTACHMENT ARM
Removing And Installing (Models HD and
HD
PTO)
Installing (Cont’d):
6. Start the engine. See page 41. Press the bottom of the joy-
stick lockout switch to enable the joystick.
WARNING! Avoid Injury. Keep fingers and hands out of pinch points
when removing and installing the attachment arm.
7. Extend the lift cylinder fully.
8. Extend the tilt cylinder fully.
9. Press the top of the
joystick lockout switch
to lockout the joystick.
Turn the key to the
OFF position and exit
the utility vehicle.

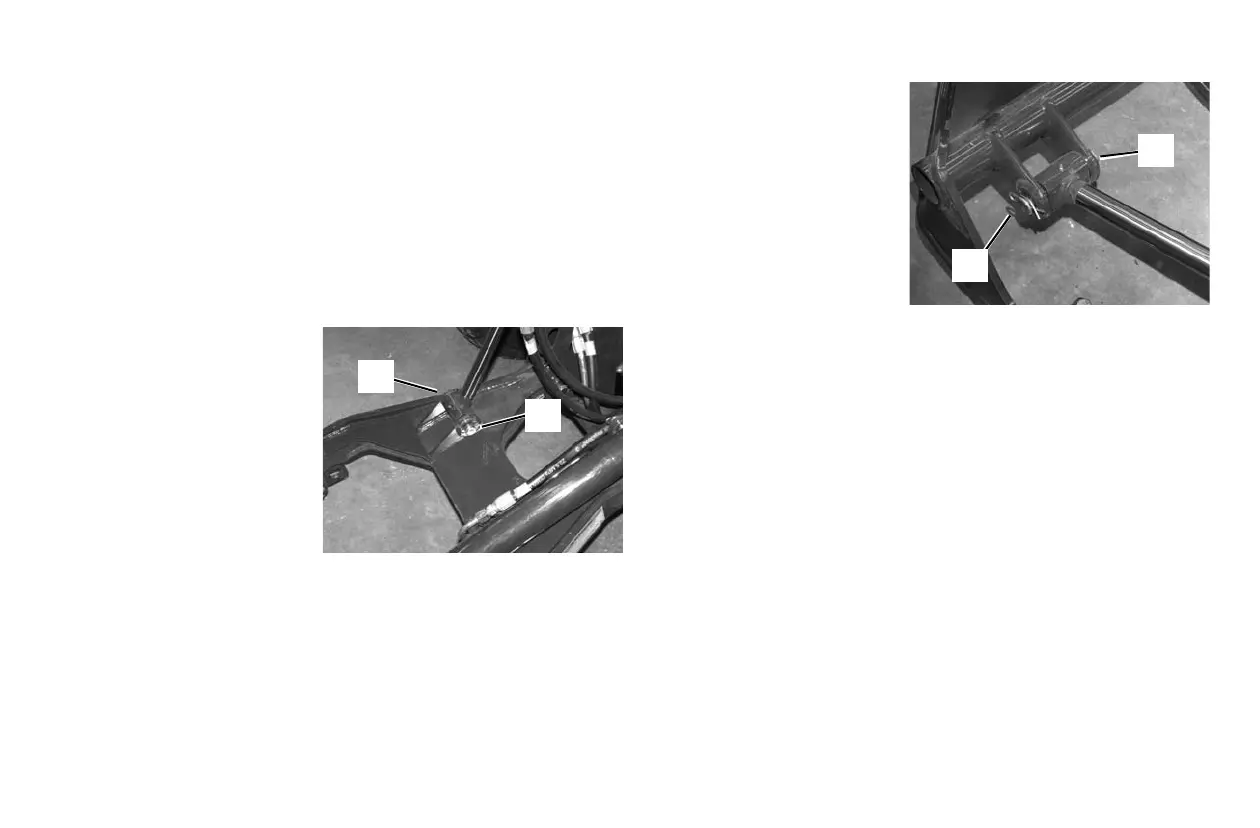

10. Raise the interface
until it is aligned with
the rod end of the lift
cylinder. Install the pin
(Item 1) and retainer
pin (Item 2).
11. Rotate the interface
upward until it is
aligned with the rod
end of the tilt cylinder.
Install the pin (Item 3)
and retainer pin (Item
4).
Lubricate the attachment
arm and the cylinder
grease fittings. See page
120.
