74
PTO SYSTEM
Removing And Installing PTO Shafts
(Models HD
PTO)
Description
If the utility vehicle will not be used for PTO driven attach-
ments for extended periods of time, it is possible to remove the
PTO drive shaft assembly from the PTO clutch. This will pre-
vent damage to the PTO system if the utility vehicle will be
used off road or if additional ground clearance is desired.
Removing:
1. Stop the engine. See page 41.
2. Make sure the PTO driveline and all rotating components
have come to a complete stop before exiting the utility
vehicle.
3. Install the utility vehicle on jack stands. See page 111.

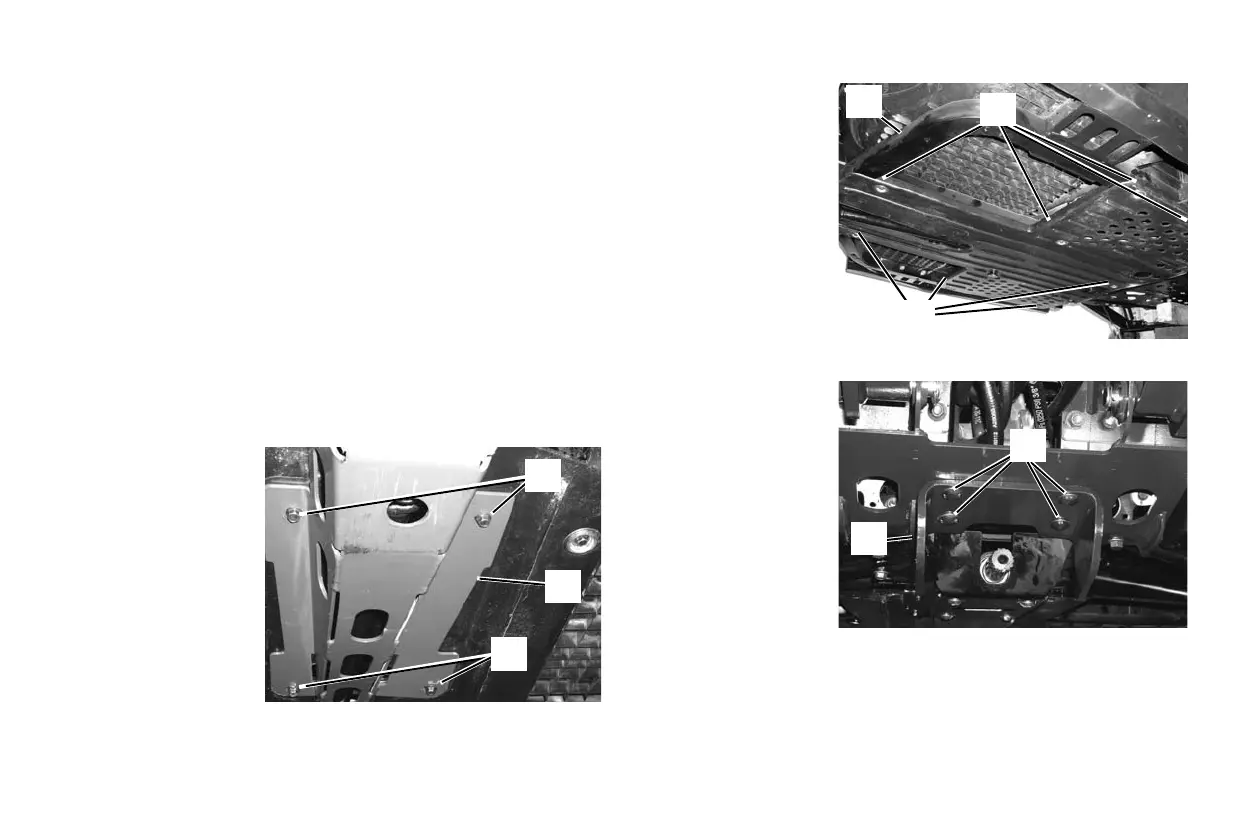

4. Remove the four
bolts (Item 1) and
remove the shield
(Item 2).
Installation: Tighten
the bolts to 7 - 8 ft-lb
(9 - 10 Nm) torque.
5. Remove the
eight bolts (Item
3) and remove
the belly pan
(Item 4).
Installation: Tighten
the bolts to 7 - 8 ft-lb
(9 - 10 Nm) torque.
6. Remove the four
bolts and nuts
(Item 3) and
remove the guard
(Item 4).
Installation: Tighten
the bolts to 32 - 35 ft-
lb (43 - 47 Nm)
torque.
To Next Page
