110
MAINTENANCE
Fuses
If the engine stops or will not start, or if you experience other electrical failures, a fuse or
relay may need replacement. Locate and correct any short circuits that may have caused a
blown fuse, then replace the fuse. Spare fuses are provided in the fuse box.
If you suspect that a fuse or relay may not be working properly, please see your POLARIS
dealer.

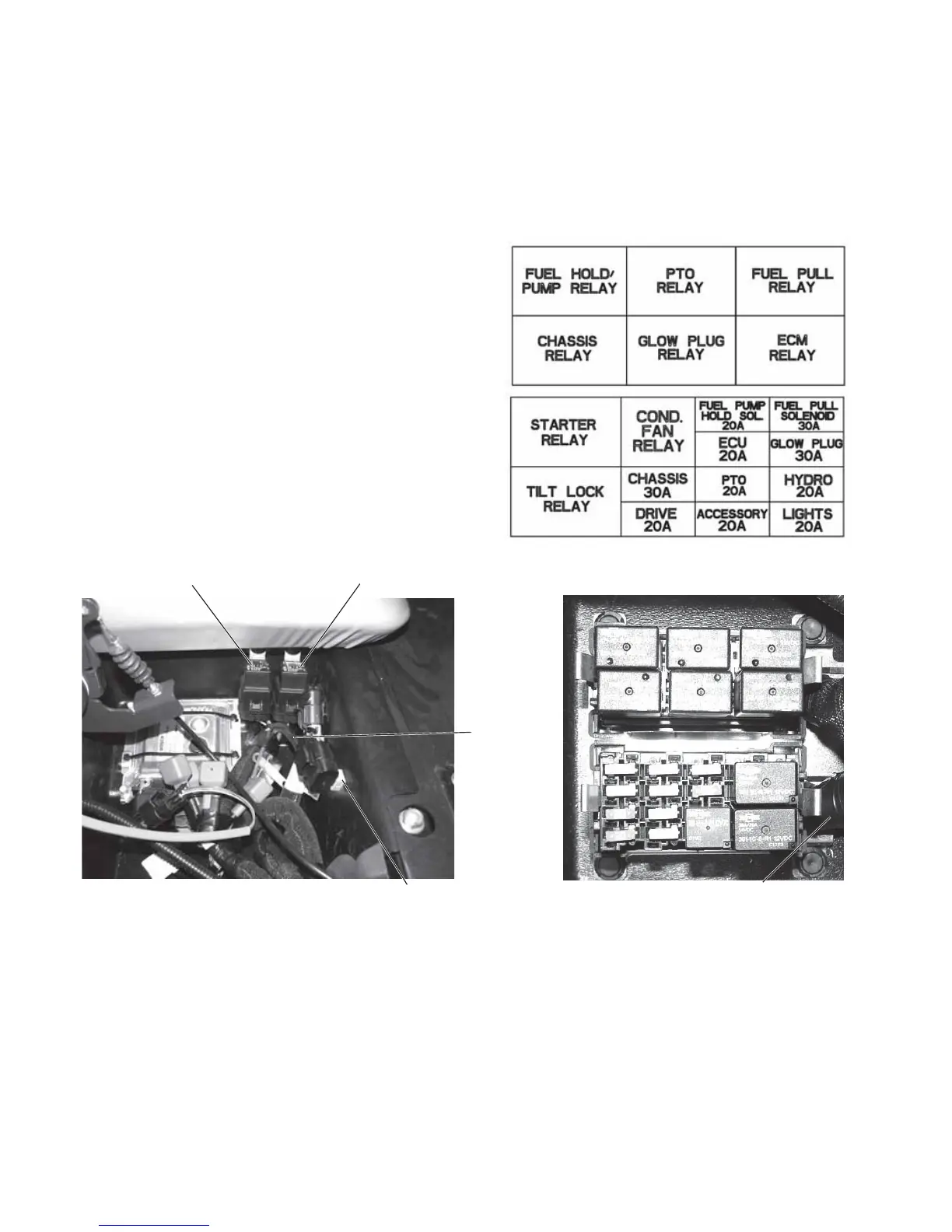

The fuse panel is located below the seat
between the operator and passenger. For the
BRUTUS model, remove the seat. For HD and
HD
PTO models, the center console will need to
be removed.
Additional relays and fuses are also located in
the same area as the fuse and relay panels.
1. Relay = Radiator fan motor
2. Relay = HVAC (if equipped)
3. In-line fuse (30A) = HVAC (if equipped)
4. Circuit Breaker (40A) = Radiator fan motor
5. Circuit Breaker (20A) = Condenser fan
motor (if equipped)
