ATTACHMENT ARM
Removing And Installing (Models HD and HDPTO)
When the PRO-TACH attachment system is not being used, it can be removed from the
vehicle.
Tip: Remove the bucket or attachment before removing the attachment arm from the vehicle.
Removing
1. Park the vehicle on a flat level surface.
2. Lower the attachment arm fully and tilt the PRO-
TACH fully forward.
Tip: In muddy conditions or to prevent the attachment arm
from freezing to the ground, put the attachment arm on
planks or blocks before removing the attachment arm
from the vehicle.
3. Move the gear selector lever to PARK and stop the
engine. See page 40.
WARNING! Avoid Injury. Keep fingers and hands out of
pinch points when removing and installing the attachment
arm.
Tip: When the pin is removed from the tilt cylinder, the
interface will be free to tilt down to the ground. Support
the interface while the pin is being removed.

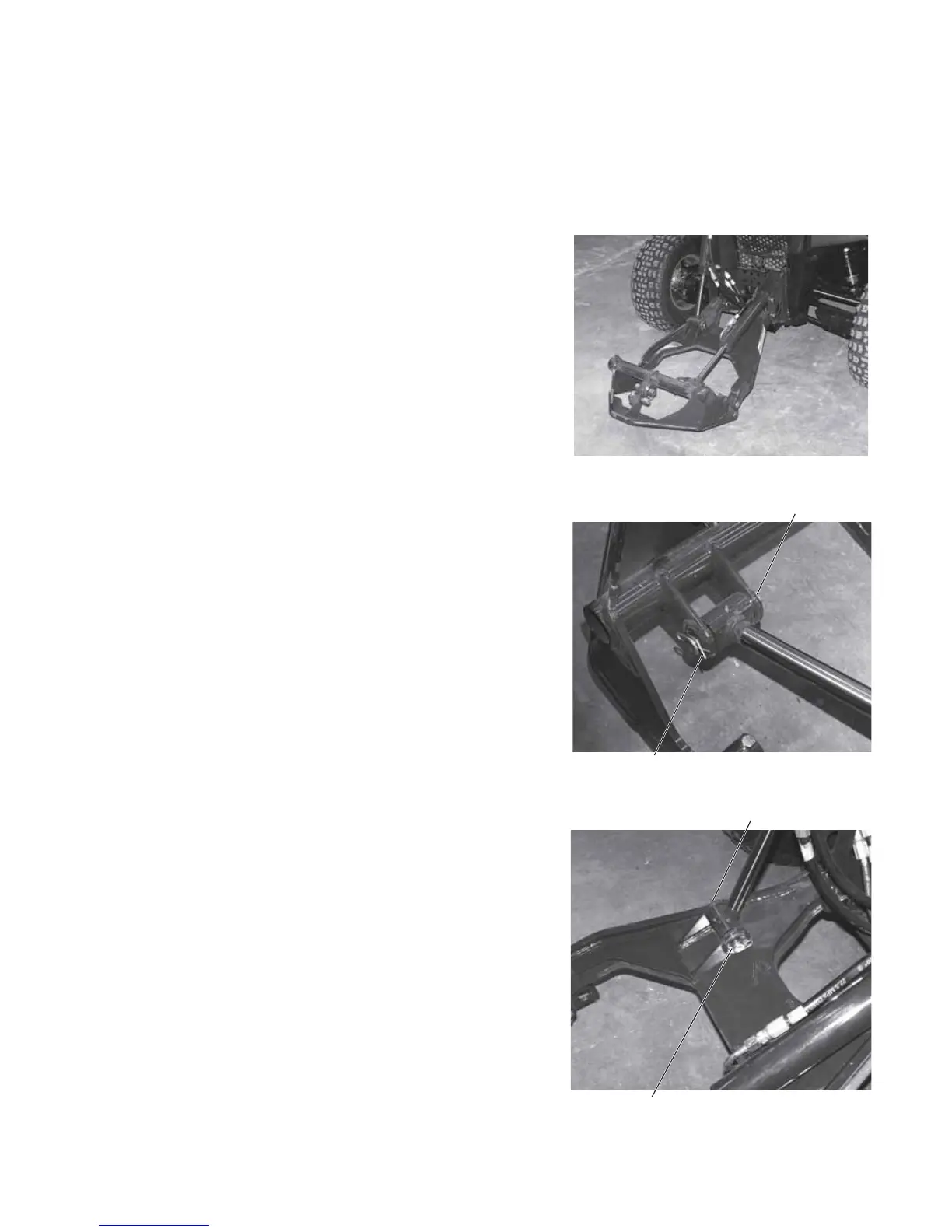

4. Remove the retainer pin and the pin from the rod
end of the tilt cylinder and position the interface
flat on the ground.
5. Remove the retainer pin and pin from the rod end
of the lift cylinder.
6. Start the engine. See page 39.
7. Press the bottom of the joystick lockout switch to
enable the joystick.
8. Retract both the lift and tilt cylinders fully.
9. Press the top of the joystick lockout switch to
disable the joystick.
10. Turn the key to the off position and exit the
vehicle. See page 40.
