ELECTRICAL 5 - 78
November 2007 GEM Service Manual
HEADLIGHT HARNESS

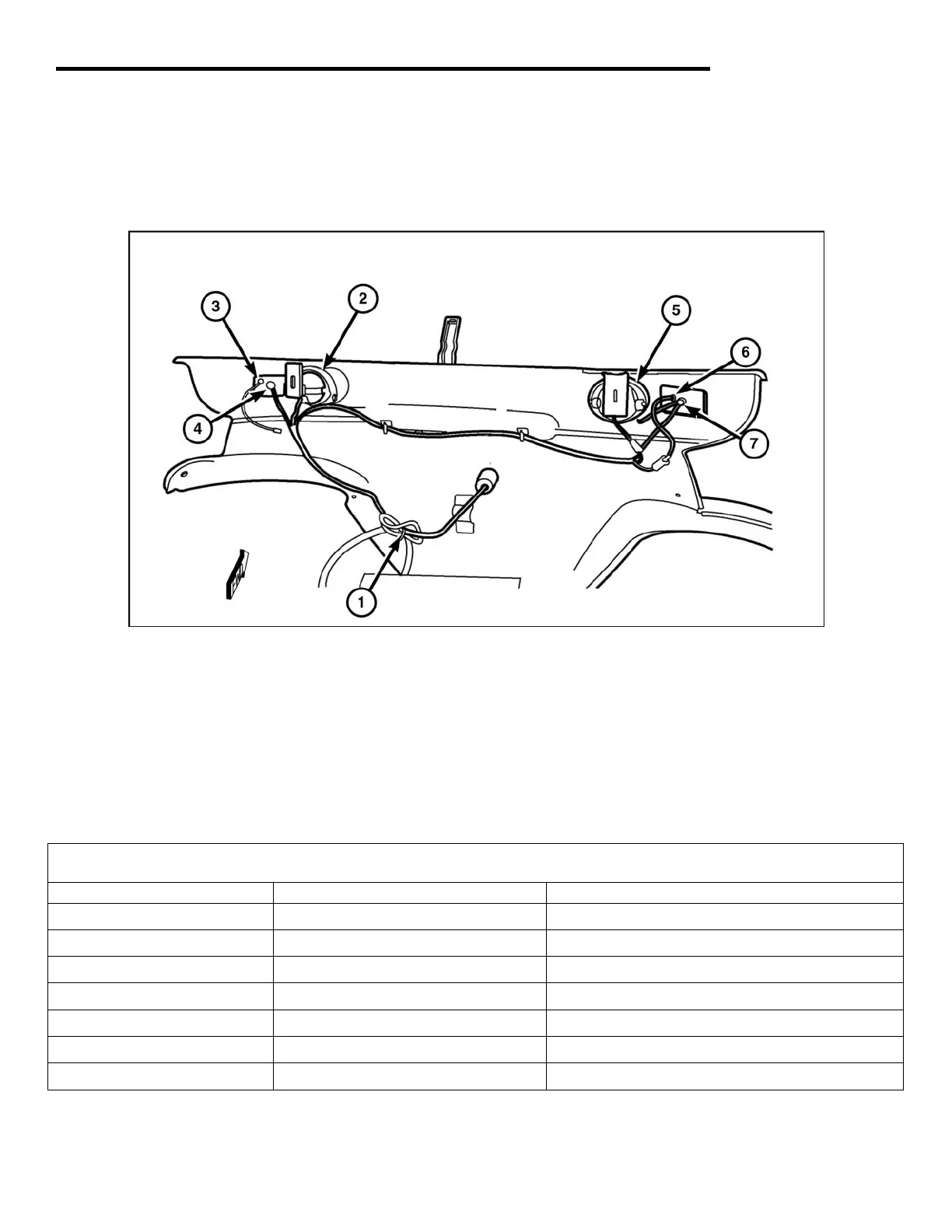

HEADLIGHT HARNESS CONNECTIONS
Connector Number Connects To Number of Pins in Connector
1 Headlight Harness 6
2 Headlamp-Left 1
3 Lamp-Turn-Left 1
4 Lamp-Turn-Left (Ground) 1
5 Headlamp-Right 1
6 Lamp-Turn-Right 1
7 Lamp-Turn-Right (Ground) 1
