5 - 79 ELECTRICAL
GEM Service Manual November 2007

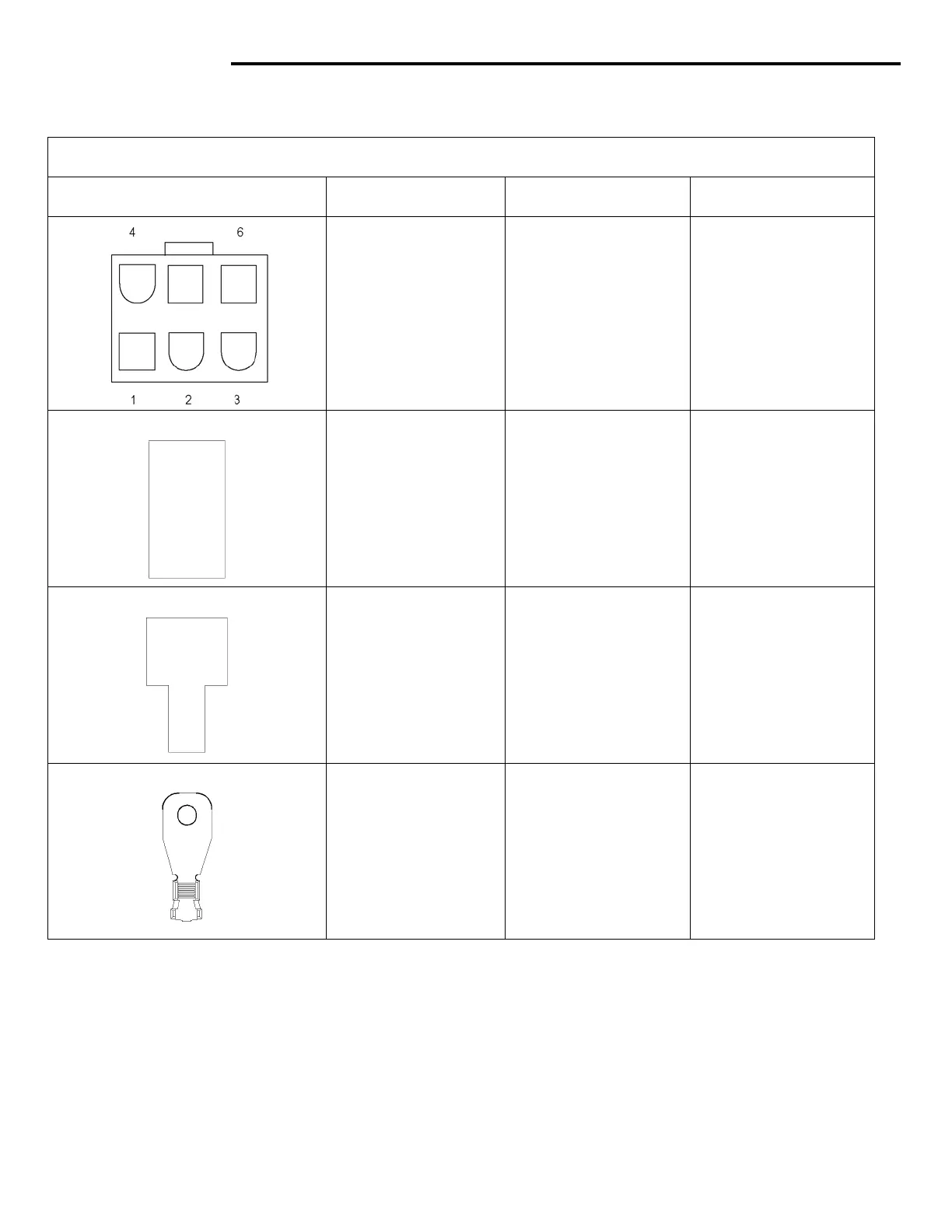

PIN LOCATIONS FOR HEADLIGHT HARNESS CONNECTORS
Connector Illustration Connector Number Connects To Number of Pins in
Connector
1
Headlight Harness
6
2,5
Headlamps (Power)
1
3,6
Turn Lamps (Power)
1
4,7
Turn Lamps (Ground)
1
