ELECTRICAL 5 - 90
November 2007 GEM Service Manual

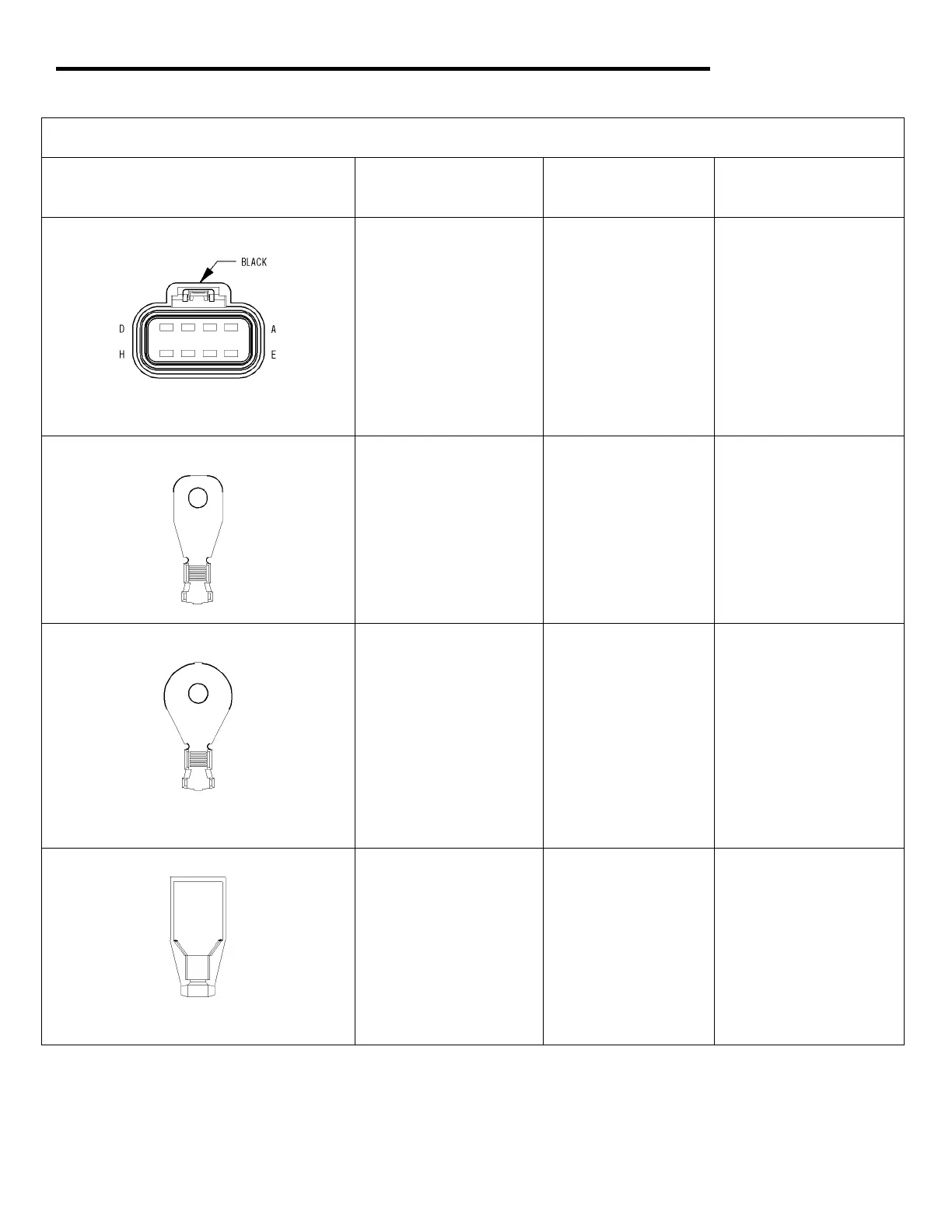

PIN LOCATIONS FOR MAIN HARNESS CONNECTORS
Connector Illustration
Connector Number
Connects To
Number of Pins in
Connector
1 PSDM J6 8
2,5
12 Volt Ground,
72 Volt Ground
1
3,4,16,17
PSDM-Disconnect
Switch, PSDM-
BATT(-), BATT 1(-),
BATT 6(+)
1
6,7,8,9,10,11,12,14,15
Charger for BTS,
Switch-Park Brake,
Lamp-CHMSL,
Lamp-License,
Lamp- Back-Up,
Lamp-License
(Ground), Battery
Temperature
Sensor
1
