5 - 89 ELECTRICAL
GEM Service Manual November 2007
MAIN HARNESS (CONTINUED)

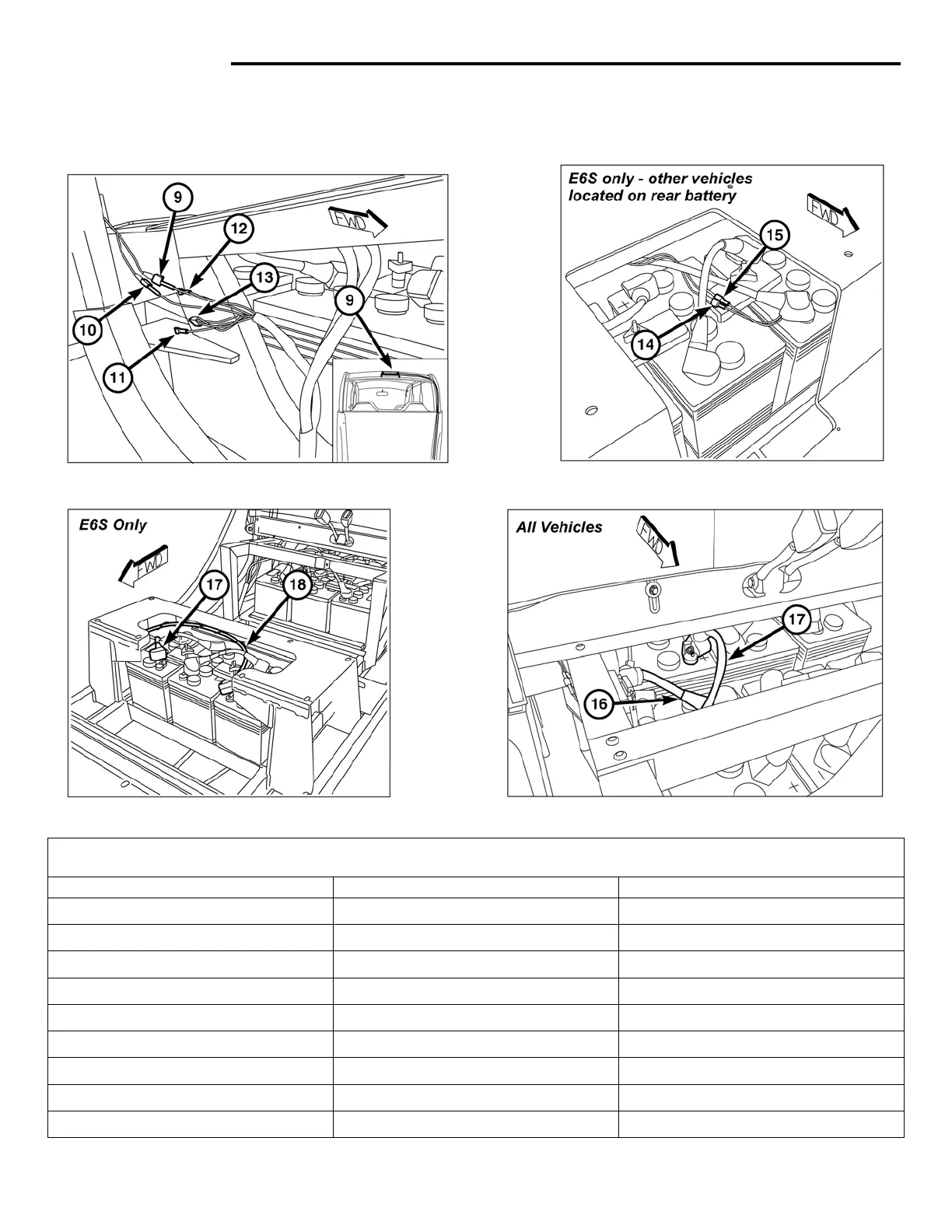

PASSENGER REAR HARNESS CONNECTIONS
Connector Number Connects To Number of Pins in Connector
9 Lamp-CHMSL 1
10 Lamp-CHMSL (Ground) 1
11 Lamp-License 1
12 Lamp-Back-Up 1
13 Taillight Harness 4
14,15 Battery Temperature Sensor 1
16 BATT (-) 1
17 BATT (+) 1
18 Main Harness 1
