5 - 93 ELECTRICAL
GEM Service Manual November 2007

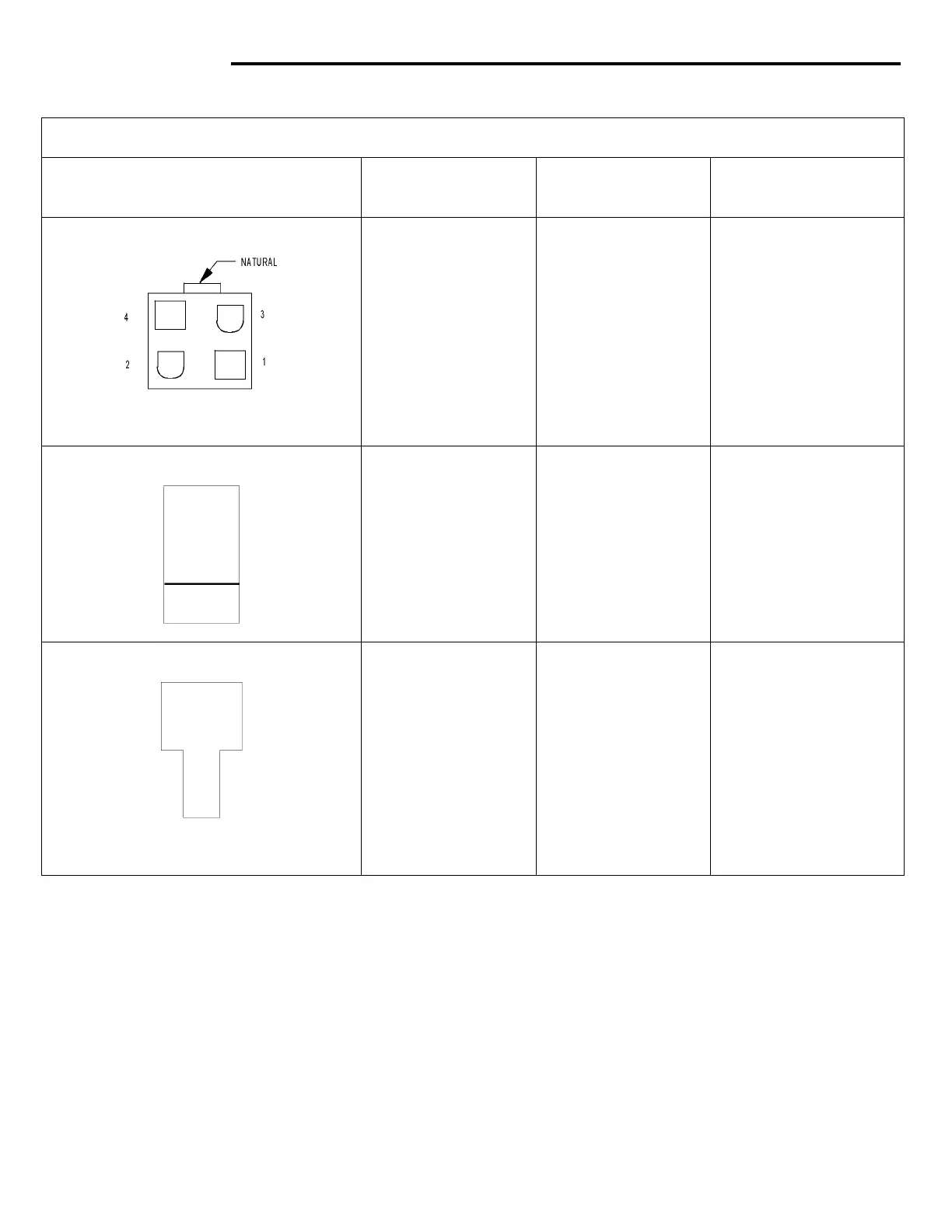

PIN LOCATIONS FOR TAIL LIGHT HARNESS CONNECTORS
Connector Illustration
Connector Number
Connects To
Number of Pins in
Connector
1
Rear Harness
4
2,3,5,6
Lamp-Taillight-Left,
Lamp-Taillight-Right
1
4,5
Lamp-Taillight-Left,
Lamp-Taillight-Right
1
