EFI SYSTEM COMPONENT LOCATIONS

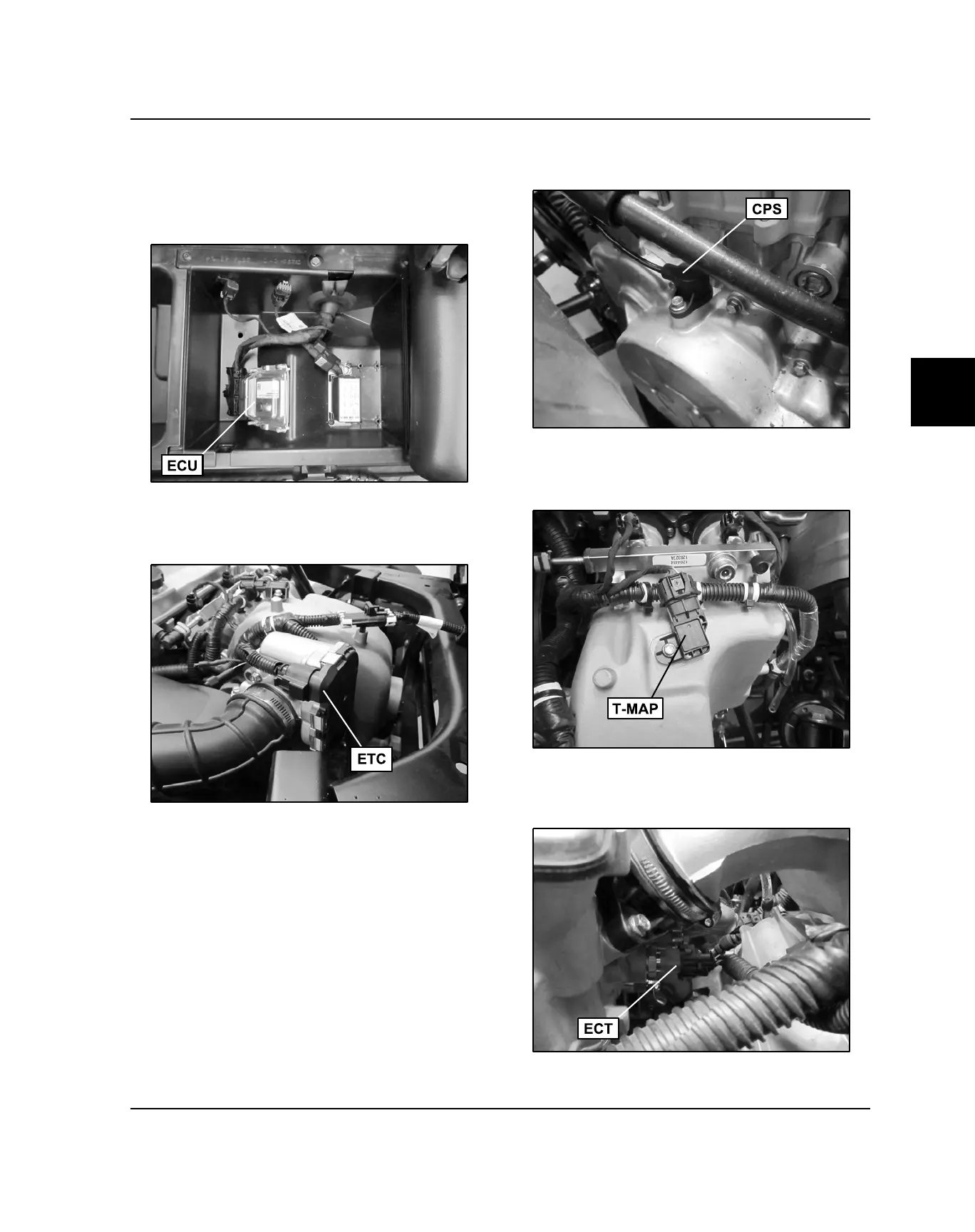

1. Electronic Control Unit (ECU)
- Located under the passenger seat. (Rear
passenger seat on CREW 900).
2. Electronic Throttle Control (ETC)
- Located between the intake boot and intake
plenum.
3. Crankshaft Position Sensor (CPS)
- Located on top of the stator cover.
4. Temperature / Manifold Absolute Pressure
Sensor (T-MAP)
- Located on top of the intake plenum.
5. Engine Coolant Temperature Sensor (ECT)
- Located on the cylinder head below the intake
manifold.
