9.17

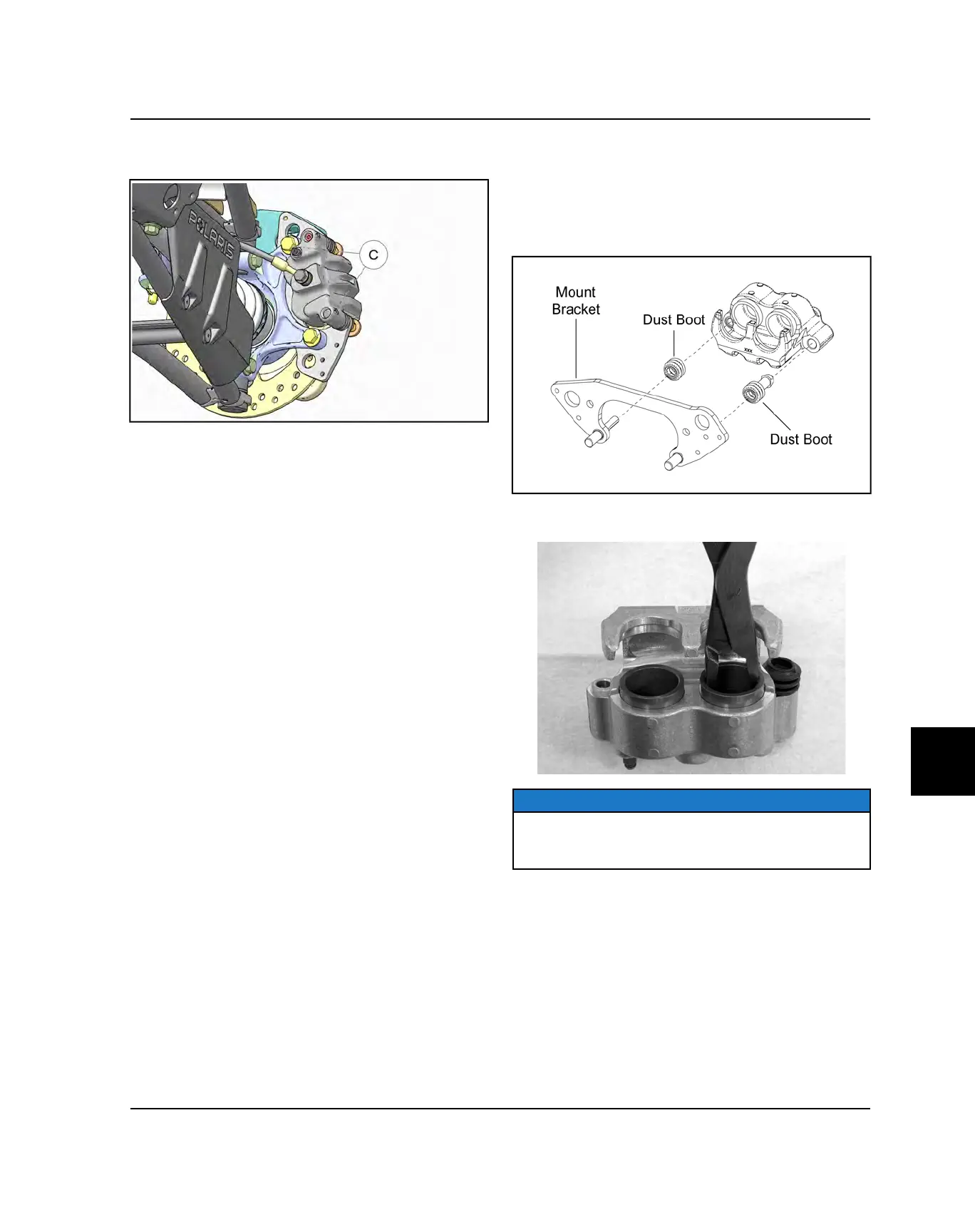

6. Remove the two caliper mounting bolts (C) and
caliper.
CALIPER DISASSEMBLY
1. Remove both brake pads from the caliper (see
“FRONT BRAKE PADS - Pad Removal”).
2. Remove the mount bracket assembly and dust boots
from caliper. Thoroughly clean caliper before
disassembly and prepare a clean work area.
3. Use a commercially available caliper piston pliers to
extract the pistons from the caliper.
NOTE
Do not remove the caliper pistons with a standard
pliers. The piston sealing surfaces will become
damaged if a standard pliers is used.
BRAKES
