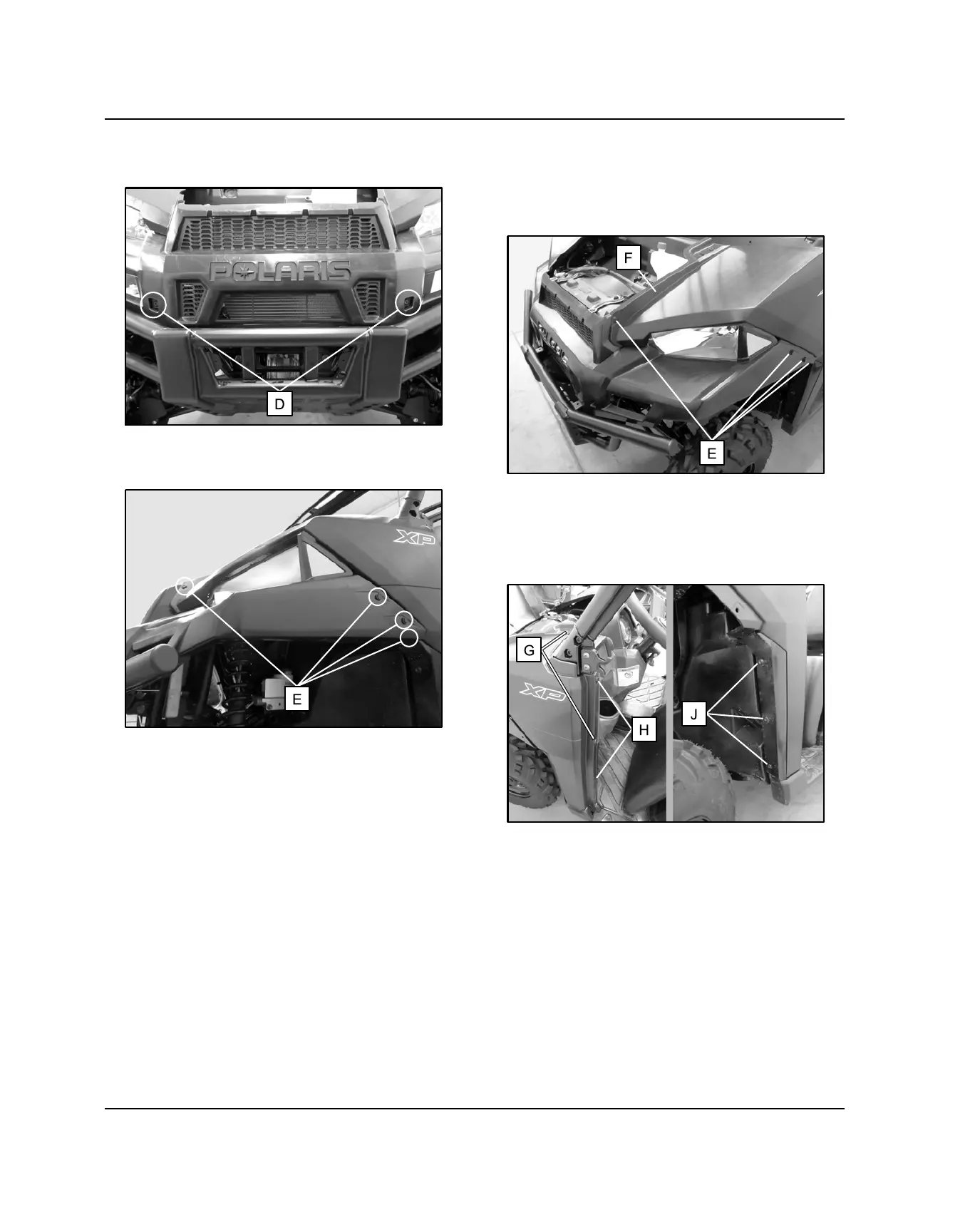

4. Remove the (2) T-40 Torx-head screws (D) retaining
the front fascia to the frame.
5. Remove the push rivets (E) retaining the front fascia
to the front fenders on each side.
6. Carefully pull the front fascia straight out to remove it
from the vehicle.
FRONT FENDERS
1. Remove the hood (see “Hood” removal).
2. Remove the push rivets (E) retaining the front fascia
to the front fender (F).
3. Remove the (2) T-40 Torx-head screws (G) and (2)
push rivets (H) retaining the top and rear portion of
the fender. Remove the (3) T-40 Torx-head screws
(J) retaining the front portion of the fender to the
frame.
BODY / STEERING / SUSPENSION
