6.34
9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.

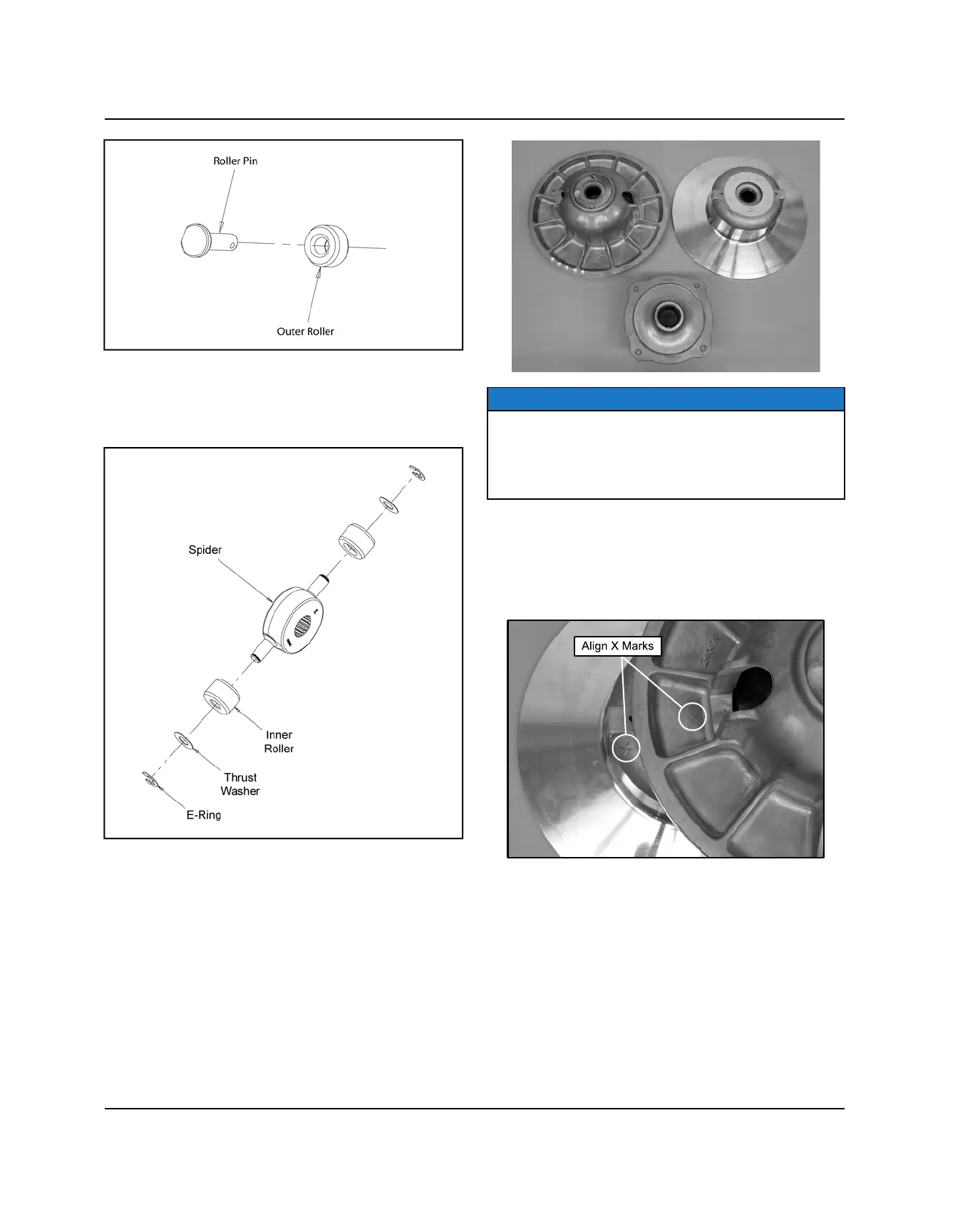

4. Remove the E-rings and thrust washers from each end
of the spider assembly. Remove and inspect the inner
clutch rollers for excessive wear or damage. Replace
components as needed. Use new E-rings upon
assembly.
5. Inspect the flanged bearings in the clutch sheaves and
cam (helix). If bearings are damaged or have an
excessive amount of wear, the entire component must be
replaced.
NOTE
The flanged bearings are not serviceable. If either
clutch sheave bearing requires replacement, the entire
driven clutch assembly must be replaced. Refer to the
Polaris Electronic Parts catalog for specific parts
availability.
CLUTCH ASSEMBLY 2014 (EBS)
1. Line up the “X” on the moveable sheave with the “X”
on the stationary sheave and place the sheaves
together.
2. Install the outer clutch roller and roller pin on both
sides of the moveable sheave.
CLUTCHING
