6
9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
6.35

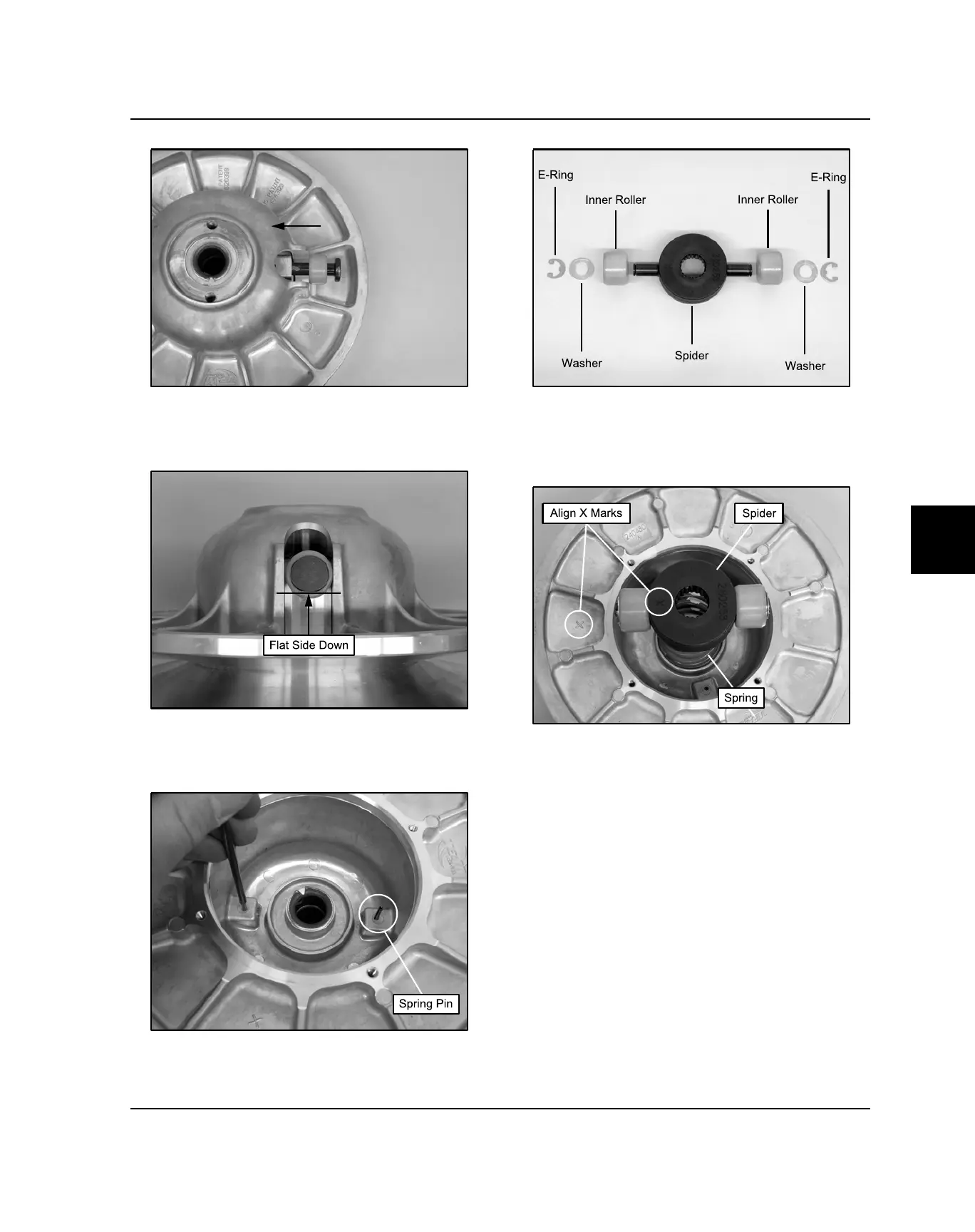

3. Press the roller pin into the moveable sheave on each
side with the flat side of the roller pin facing down as
shown.
4. Install new spring pins to secure the roller pins in the
moveable sheave. Tap the spring pins in until they are
flush with sheave surface.
5. Install the inner clutch rollers, thrust washers and E-
rings onto the spider if previously disassembled.
6. Install the compression spring and spider assembly
into the moveable sheave. Align the “X” mark on the
spider with the “X” mark on the moveable sheave as
shown.
7. Install the cam (helix) on top of the spider. Align the “X”
mark on the cam (helix) with the “X” mark on the
moveable sheave.
8. Place the clutch assembly onto the Universal Clutch
Compressor PU-50518. Turn the compression tool
handle clockwise to overcome spring pressure and force
the cam (helix) into the moveable sheave.
CLUTCHING
