4.20
9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
16. Gently push down on fuel pump flange ensuring
flange is centered.

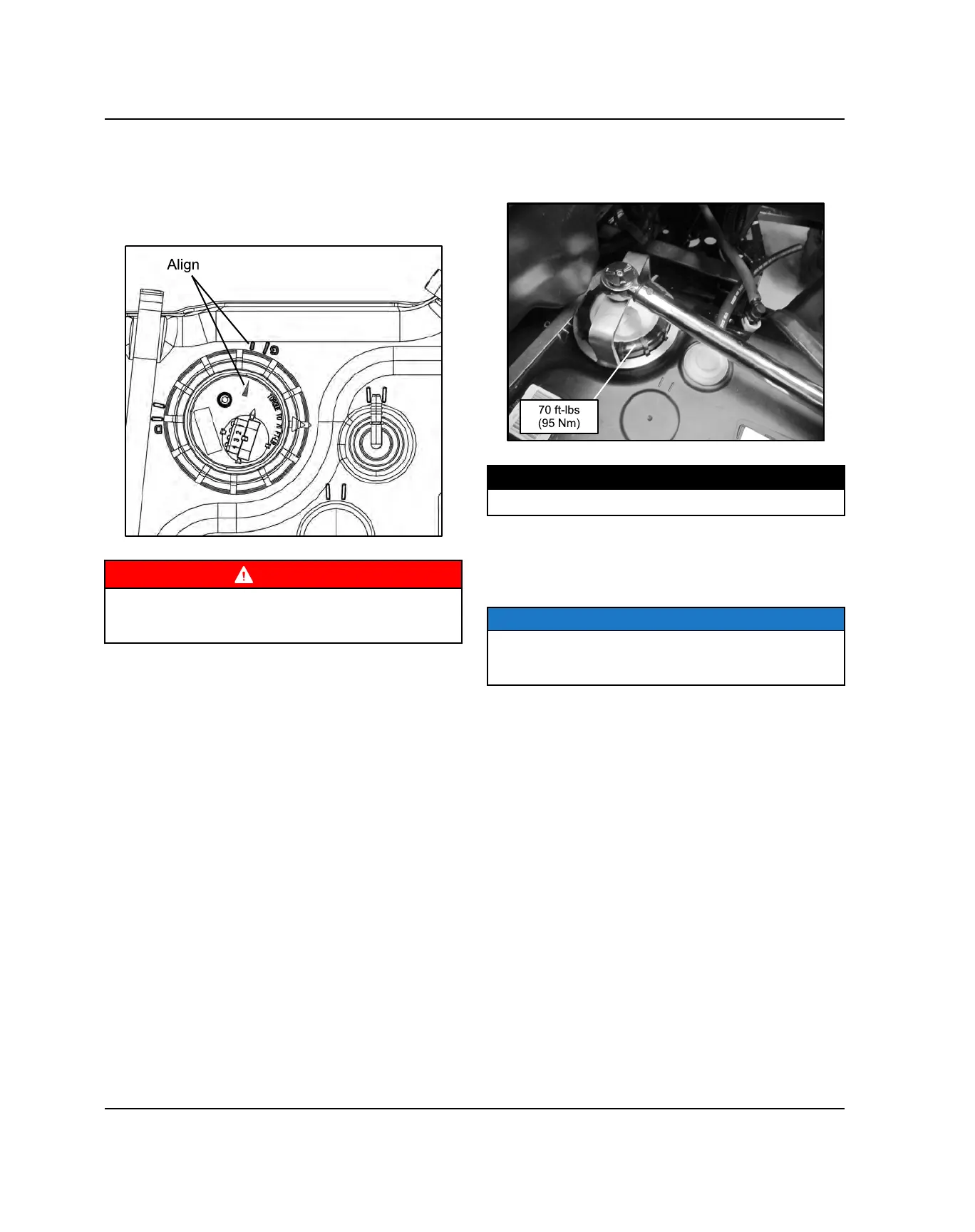

17. Roughly align orientation mark on fuel pump
between the orientation marks on fuel tank to ensure
float arm does not get bent or snagged.
WARNING
Failure to align the orientation marks may lead to
interferences with the fuel level float armand cause
incorrect function.
18. While maintaining downward pressure, thread new
PFA nut onto fuel tank and hand tighten. Use care
when starting PFA nut, ensuring threads are properly
aligned. Verify orientation marks are still aligned
between fuel pump and fuel tank.
19. Torque PFA nut to specification using the Fuel Pump
Service Tool (PU-50326) and a calibrated torque
wrench.
TORQUE
Fuel Pump PFA Nut:70 ft-lbs (95 Nm)
20. Verify alignment of fuel pump and tank orientation
marks.
21. Connect the fuel supply line to the pump (see “Fuel
Line Removal / Installation”).
NOTE
Be sure to engage the retainers on each fuel line until
each snaps into place. Pull on fuel lines lightly to
confirm connection.
22. Connect the fuel pump electrical harness.
23. Test the fuel pump by turning on the key and
listening for the pump to activate. Cycle the key
several times to prime the system.
24. Install storage bin and driver’s seat base.
FUEL SYSTEM - GENERAL
