6.26
9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.

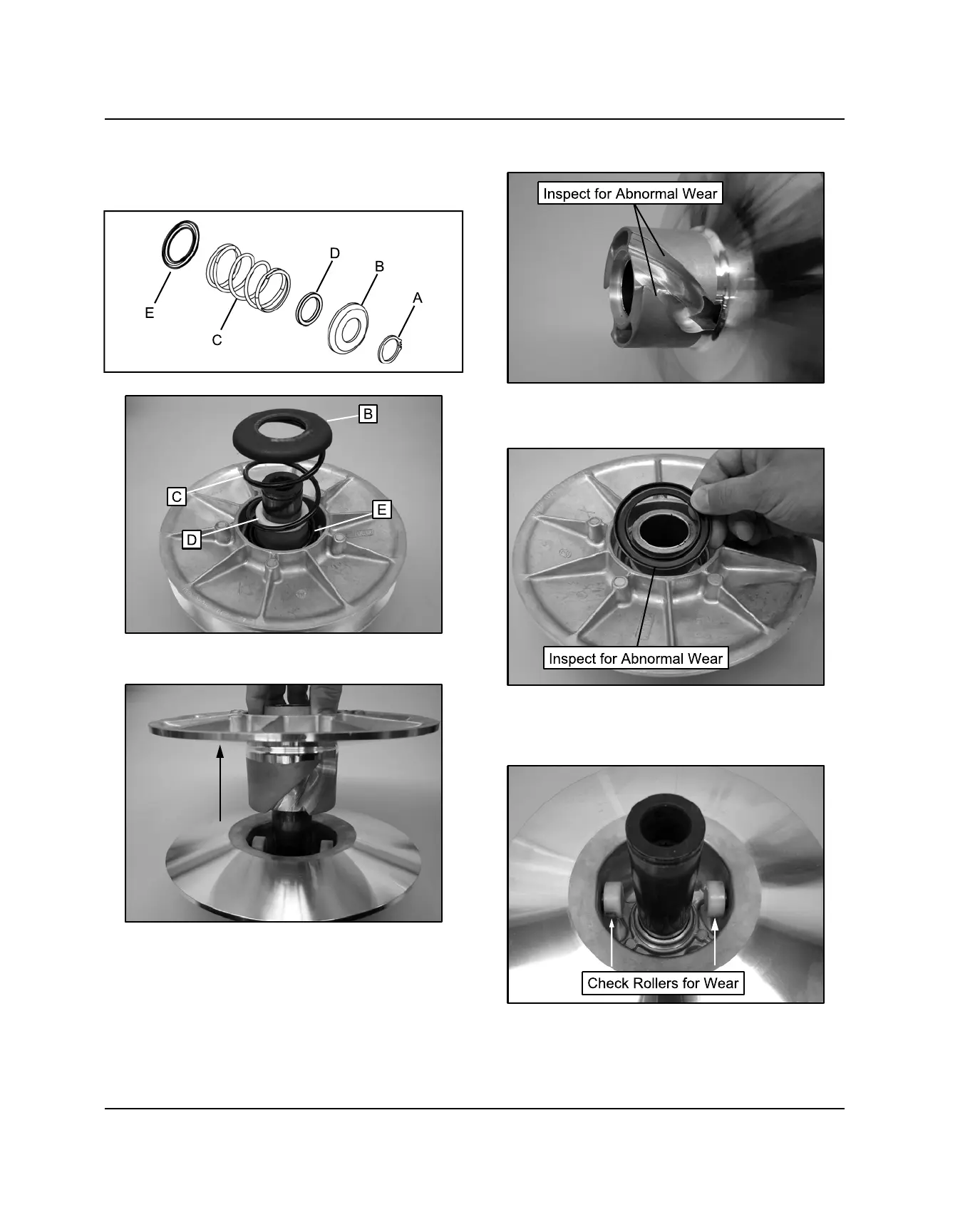

4. With the snap ring (A) removed and spring pressure
relieved, remove the outer spring retainer (B),
compression spring (C), spacer (D), and inner spring
retainer (E).
5. Separate the two clutch sheaves.
6. Inspect the helix on the moveable sheave.
7. Inspect the inner spring retainer for wear and replace
as needed.
8. Check the rollers in the stationary sheave for wear. If
rollers are worn, a new driven clutch assembly may
be needed.
CLUTCHING
