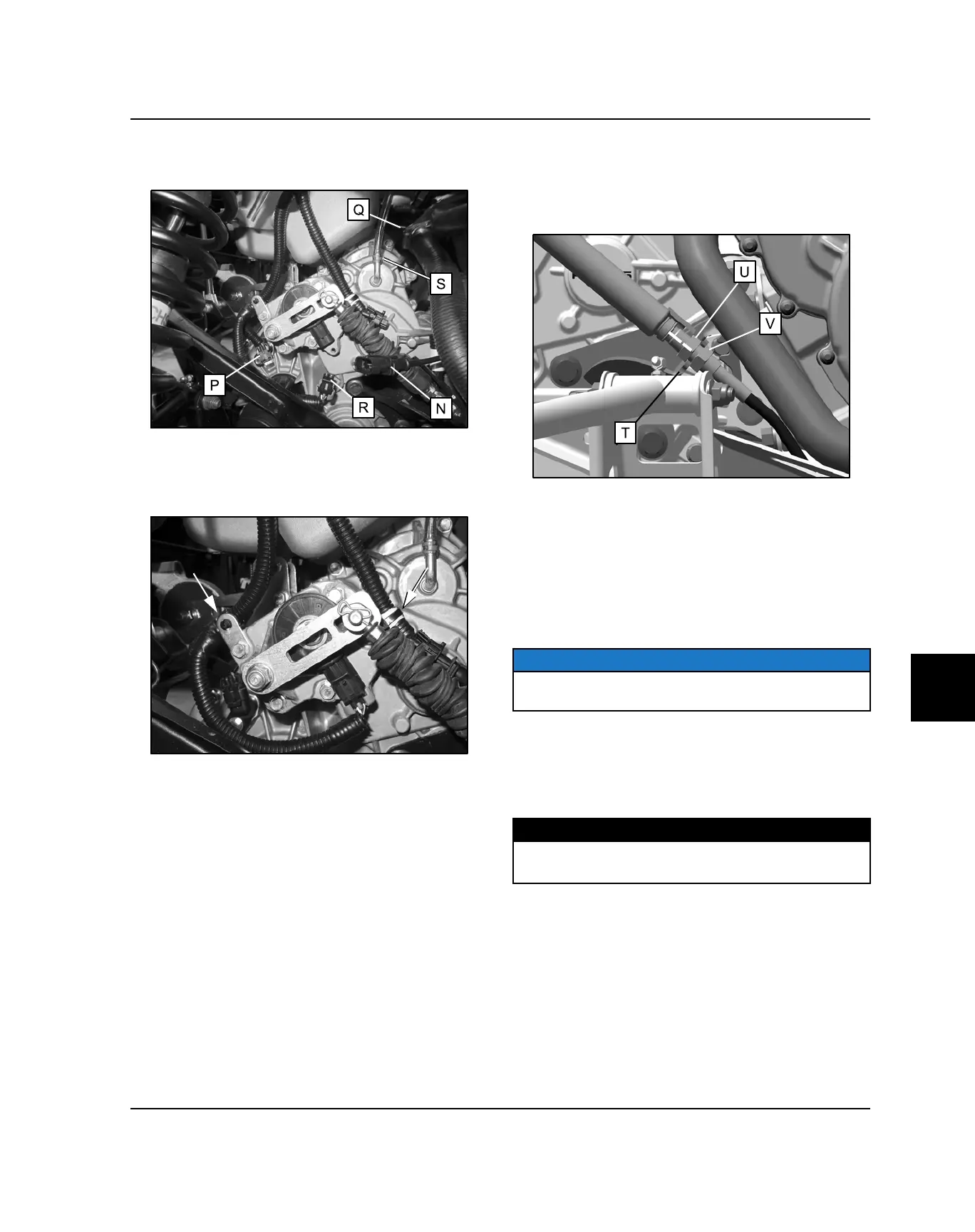

21. Connect the CPS (N), vehicle speed sensor (P), ECT
sensor (Q) and transmission switch (R).
22. Install the vent line (S) to the transmission fitting.
23. Install (2) new plastic tie straps to retain the harness
to the transmission.
24. Note the location marks on the shift cable made
during transmission removal and install the shift
cable on the bracket (T). While holding the upper
shift cable jam nut (U), tighten the lower jam nut (V)
to secure the shift cable in the bracket.
25. Install the PVT inner clutch cover, drive clutch, driven
clutch, drive belt and outer clutch cover (see Chapter
6 “PVT Assembly”).
26. Install both rear drive shafts (see Chapter 7).
27. Install the front propshaft (see Chapter 7).
28. Safely lower the vehicle.
29. Install the rear cargo box assembly (see Chapter 5).
NOTE
Be sure to connect the tail light harness upon
installation.
30. Connect the (-) negative battery cable.
31. If the transmission lubricant was drained for service,
fill the transmission with the specified amount of
Polaris AGL (see Chapter 2 “Transmission
Lubrication”).
FLUID CAPACITY
Recommended Transmission Lubricant:AGL(PN
2878068) (Quart)Capacity: 41 oz. (1200 ml)
