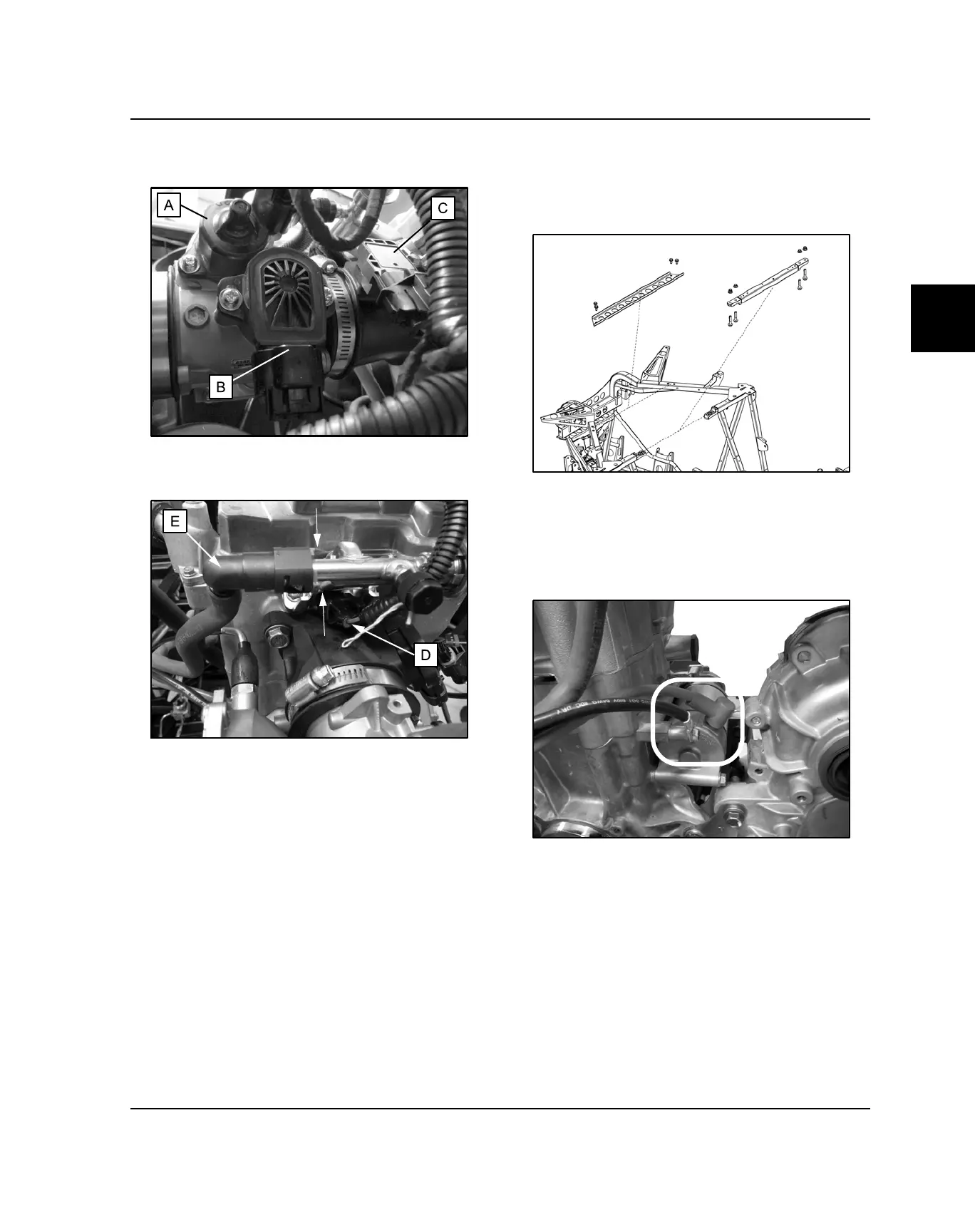

12. Disconnect the IAC valve (A), TPS (B), T-MAP
sensor (C), harness leads from the throttle body.
13. Disconnect the fuel injector harness lead (D) from
the fuel injector.
14. Properly relieve fuel pressure from the fuel rail.
15. Place a shop to beneath the fuel line quick connector
to catch any excess fuel. Disconnect the fuel line (E)
from the fuel rail by pressing in on the quick
connector tabs.
16. Move fuel line to the left-hand side of the engine
compartment. Make note of line routing for
installation.
17. Disconnect the ignition coil harness connector and
remove the spark plug wire from the engine.
18. Remove the eight fasteners securing the two bolt in
braces to the vehicle main frame. Maneuver the
braces for engine removal clearance. Note the
routing of the transmission breather hose and wire
harness.
19. Remove (+) positive cable from the starter motor.
20. If desired, remove the remaining starter motor bolt
and remove the starter motor from the engine.
21. Remove (-) negative cable from the starter mounting
bolt.
