Polaris RZR 900 2016 Service Manual

3
9926814 R08 - 2015-2016 RZR 900 2016 RZR S 1000 Service
Manual
© Copyright Polaris Industries Inc.
3.31

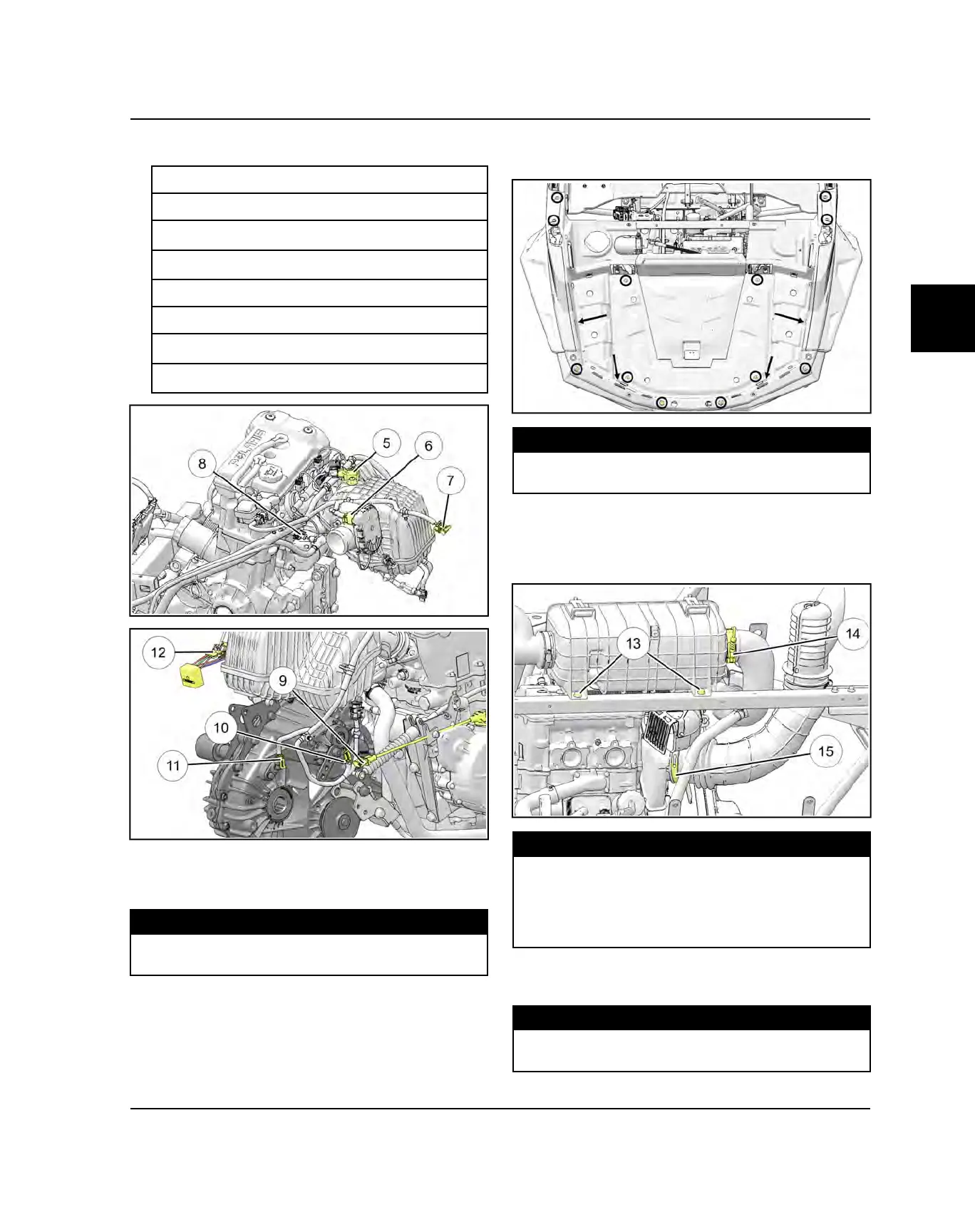

15.Connect the following electrical components:
t
TMAP
y
Electronic Throttle Control
u
Taillight Harness
i
Engine Temp Sensor
o
CPS
a
Transmission Switch
s
Speed Sensor
d
Differential Relay (if equipped)
16.Install the ignition coil. Connect the wiring leads and
spark plug caps. Torque mounting bolts to
specification.
TORQUE
Ignition Coil Mounting Bolts:
75 in-lb (9 Nm)
17.Install the 22 Torx screws retaining the cargo box
panel. Torque screws to specification.
TORQUE
Cargo Box Screws:
8 ft-lb (11 Nm)
18.Install the two bolts mounting the air box to the frame
bracket
f
and tighten the clamp on the air box duct
g
. Also tighten the PVT intake clamp
h
. Torque
fasteners to specification.
TORQUE
Duct Clamp:
17 in-lb (2 Nm)
Air Box Mounting Bolts:
8 ft-lb (11 Nm)
19.Install the four screws mounting the engine and PVT
intake vents. Torque screws to specification.
TORQUE
PVT and Engine Air Intake Screen Screws:
35 in-lb (4 Nm)
ENGINE / COOLING SYSTEM
