9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.
3.129

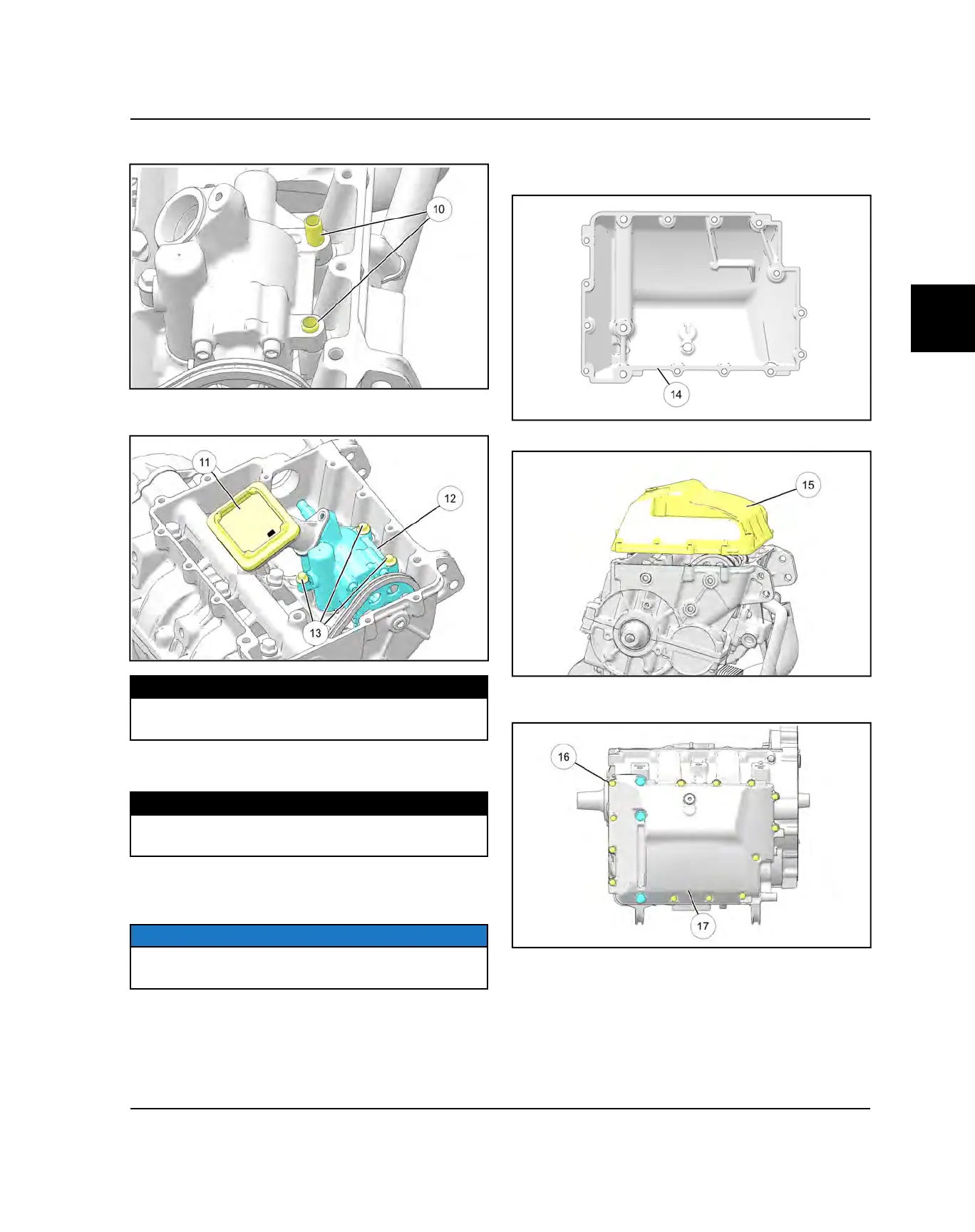

17. Install dowel pins
a
into oil pump mounting holes.
18. Install the three bolts
f
that retain oil pump
d
to the
crankcase. Torque mounting bolts to specification.
TORQUE
Oil Pump Mounting Bolts:
7 ft-lbs (10 N·m)
19. Reinstall oil pump pick-up
s
. Torque mounting
screws to specification.
TORQUE
Oil Pump Pick-Up Retaining Screws:
7 ft-lbs (10 N·m)
20. Clean the gasket sealing surfaces on oil sump cover
and crankcase to remove old gasket material and
any oil.
NOTICE
Gasket surfaces must be DRY and oil free. Use care
upon assembly to keep oil away.
21. Apply a thin, continuous film of Crankcase Sealant
(PN 2871557) to sump cover mating surface
g
as
shown. Do not allow sealant to dry before assembly.
22. Install the oil sump cover
h
onto the crankcase.
23. Install the thirteen M6
j
and three M8 bolts that
retain the oil sump cover
k
to the crankcase.
ENGINE / COOLING SYSTEM
