FUEL TANK / PUMP

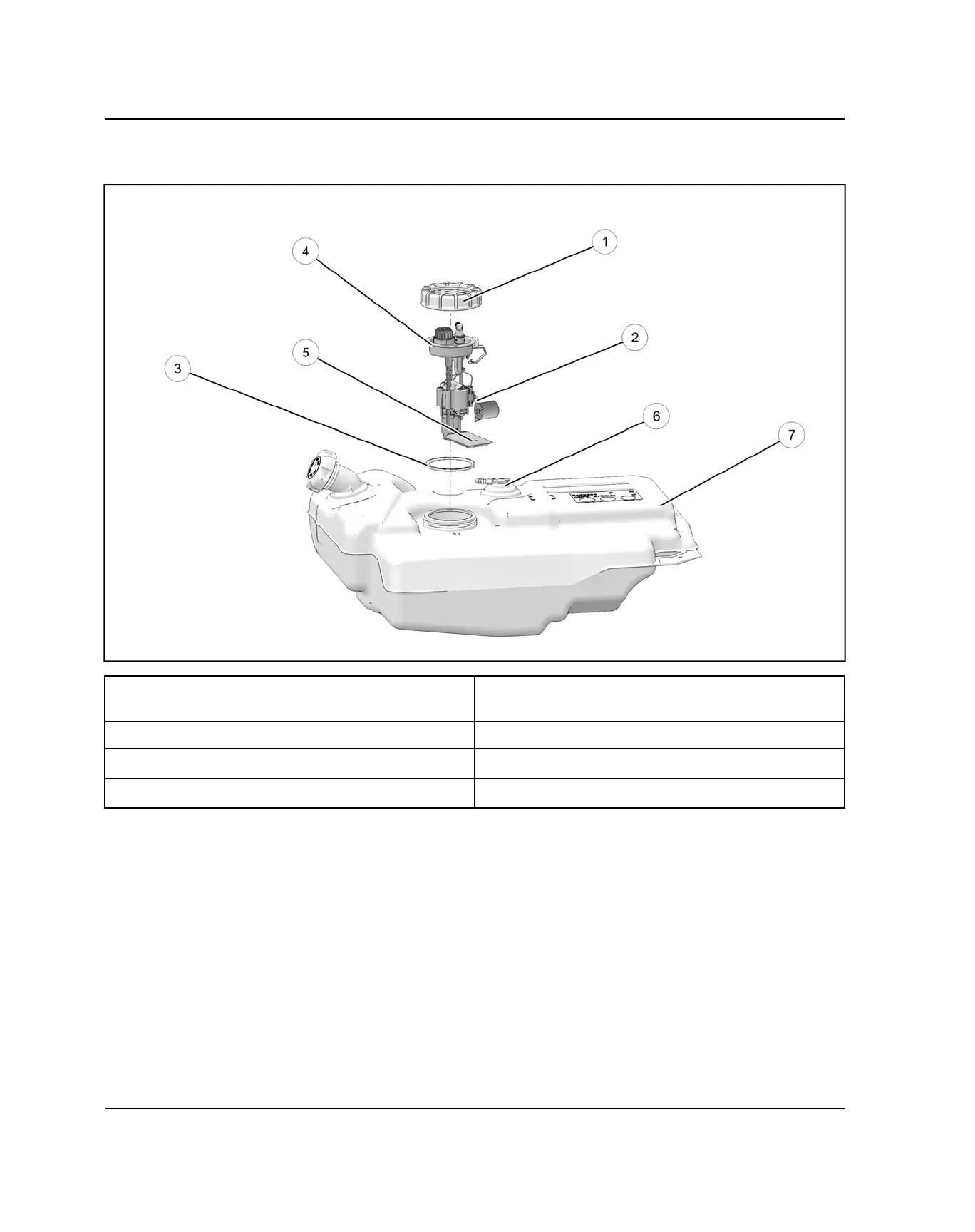

FUEL TANK ASSEMBLY VIEW
q
PFA Nut
70 ft-lbs (95 Nm)
t
Preliminary Filter
w
Fuel Sender Float Arm
y
Fuel Tank Vent
e
PFA Gasket (*replace if removed)
u
Fuel Tank Assembly
r
Fuel Pump/Regulator
FUEL SYSTEM
