PVT SYSTEM SERVICE

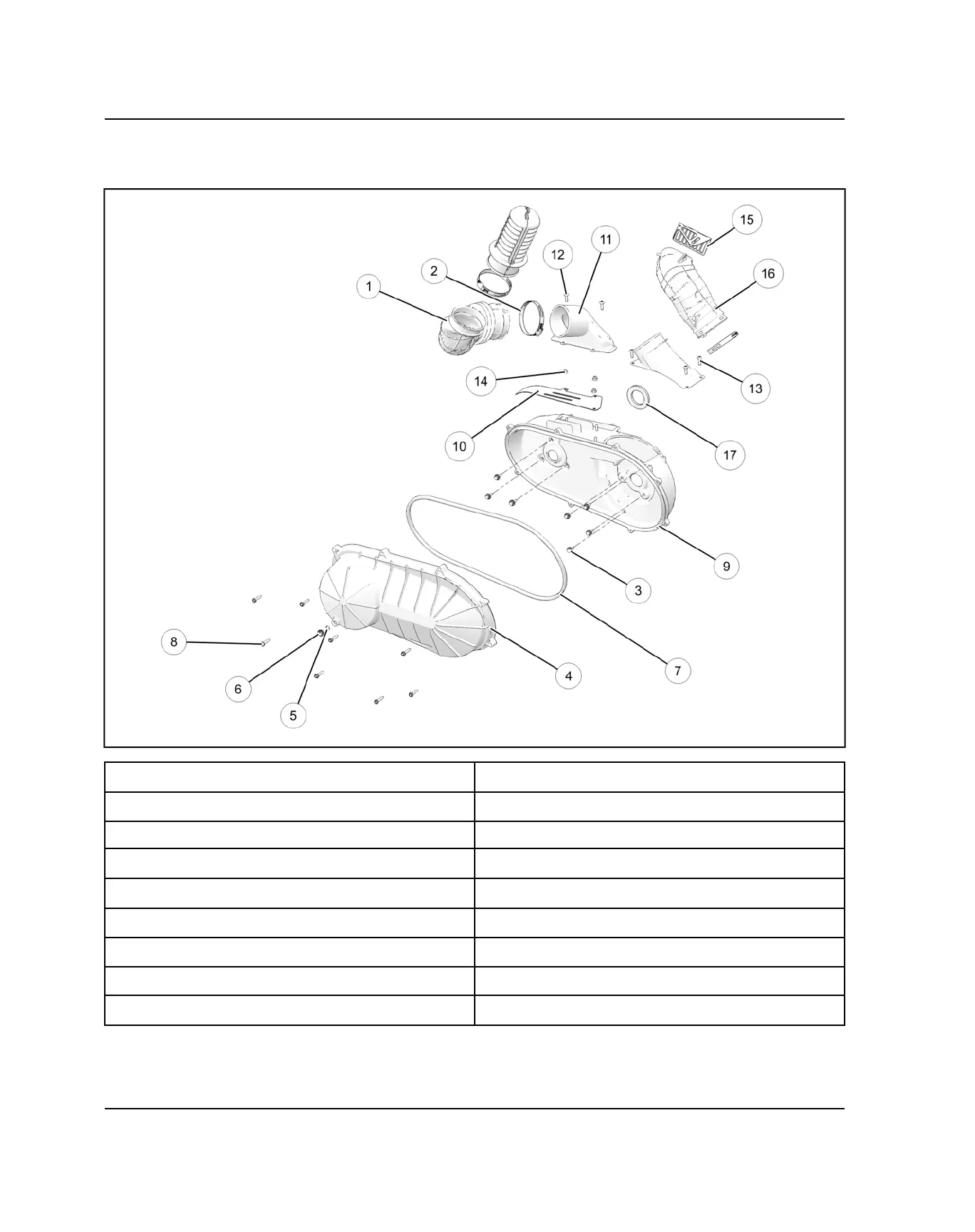

PVT COVERS AND DUCTING COMPONENTS
q
Clutch Duct Intake Assembly
a
Bracket, Cover Guard
w
Clamp, Worm
s
Air Inlet Duct
e
Bolt and Washer
d
Screw
r
Cover Assembly, Outer
f
Screw
t
O-Ring
g
Nut, Nylok
y
Drain Plug, Cover
h
Bracket, Belt Screen
u
Seal, Cover
j
Hose, Air Outlet
i
Screw
k
Seal, Cover
o
Cover Assembly
