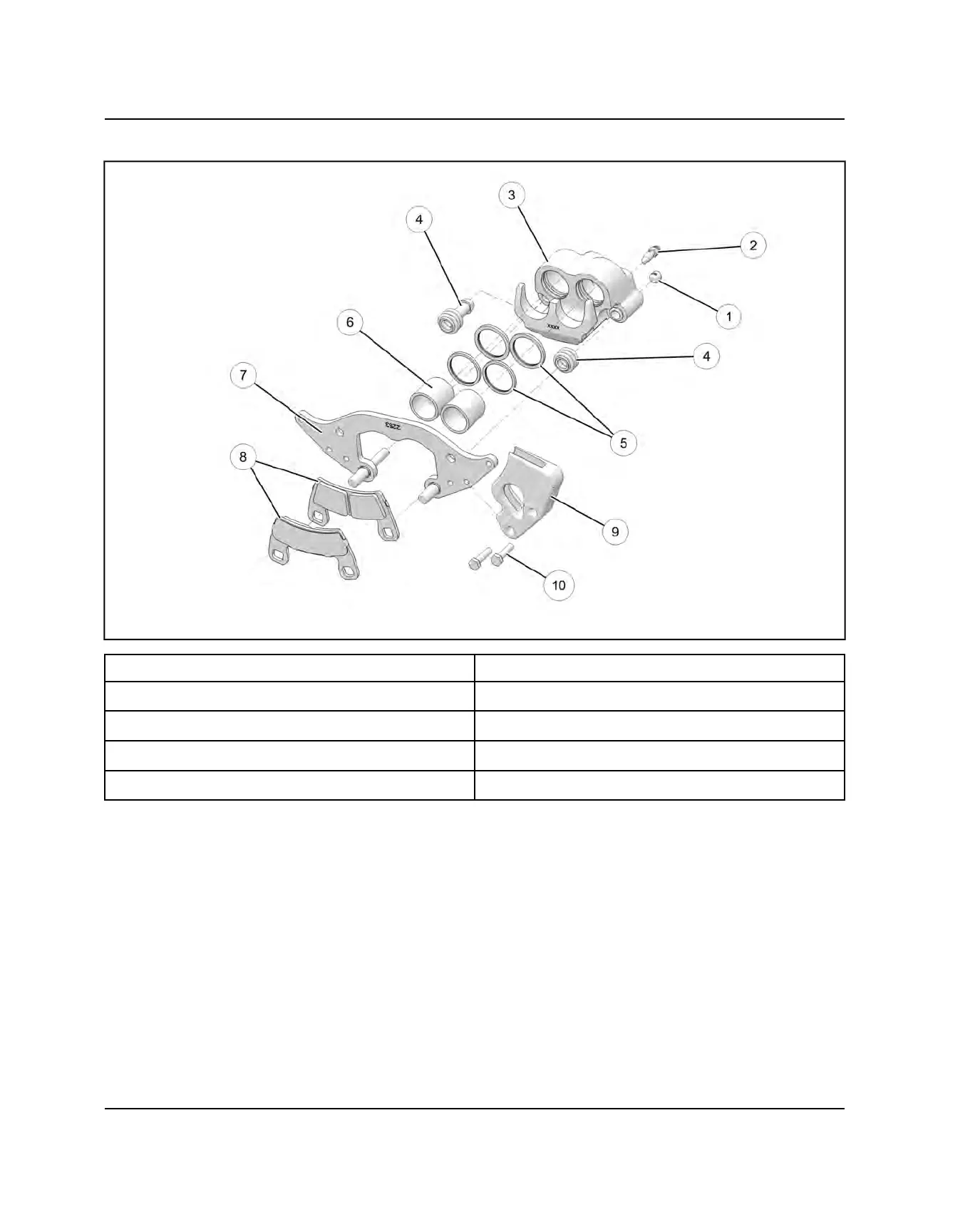

FRONT CALIPER ASSEMBLY VIEW
q
Socket Set Screw
y
Pistons
w
Bleeder Screw 48 in-lb (5 Nm)
u
Caliper Mount
e
Caliper Assembly
i
Brake Pads
r
Boots
o
Brake Scraper
t
Square O-Rings
a
Bolts
BRAKE SYSTEM
