CPS REPLACEMENT

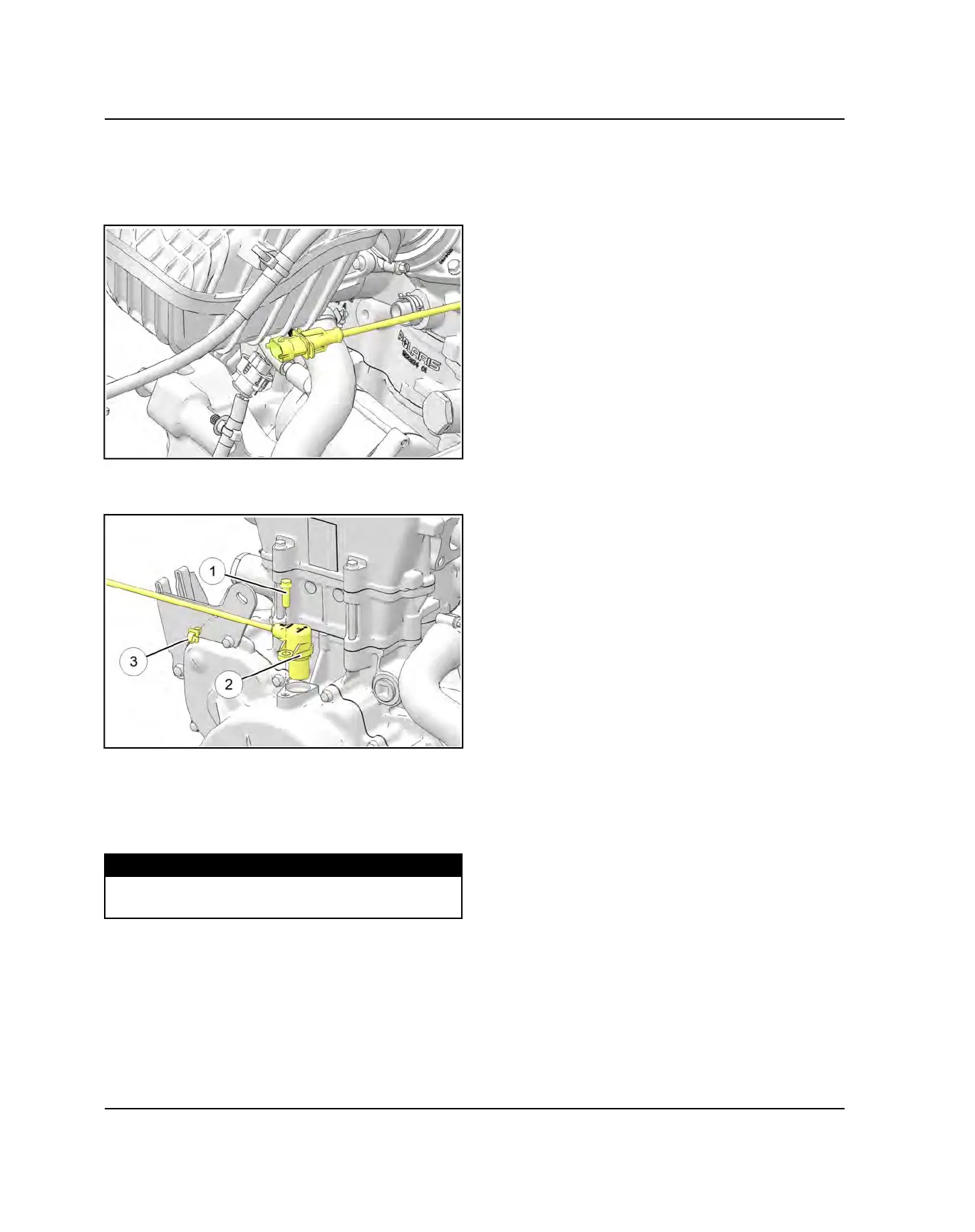

1. Access the CPS harness from the right rear side of
the vehicle.
2. Disconnect the CPS harness connector.
3. Remove CPS retaining bolt
q
and remove the sensor
w
from the stator cover.
4. Remove CPS wire lead from wire clip
e
.
5. Install new sensor using a light coating of oil on the
O-ring to aid installation.
6. Torque CPS retaining bolt to specification.
TORQUE
CPS Retaining Bolt:
9 ft-lb (12 Nm)
7. Route CPS wire lead through wire clip and reconnect
CPS harness connector.
ENGINE ELECTRICAL
