Polaris S100 - 4-1 Bluetooth RTK Rover with App-Built-In NTRIP Client

11
4-1 Bluetooth RTK Rover to Work with App-Built-In NTRIP Client
The S100 RTK Receiver, when configured as a Bluetooth RTK Rover, can receive RTK correction data from
RTK correction service, going through Polaris Connect app, as previously shown in Figure 4-1.
Follow below steps to configure S100 to receive correction data via Bluetooth interface with built-in
NTRIP client of the Polaris Connect app.
1. Switch to Rover tab in the app. See Figure 4-2 a
2. Click Settings (Figure 4-2 b) and configure NTRIP log-in information (Figure 4-2 c). The log-in
information should be obtained from RTK correction service provider.
3. Select Normal in Operation Mode, Normal + Log NMEA and Debug Mode are used for
troubleshooting, refer to Appendix A-3.
a b c

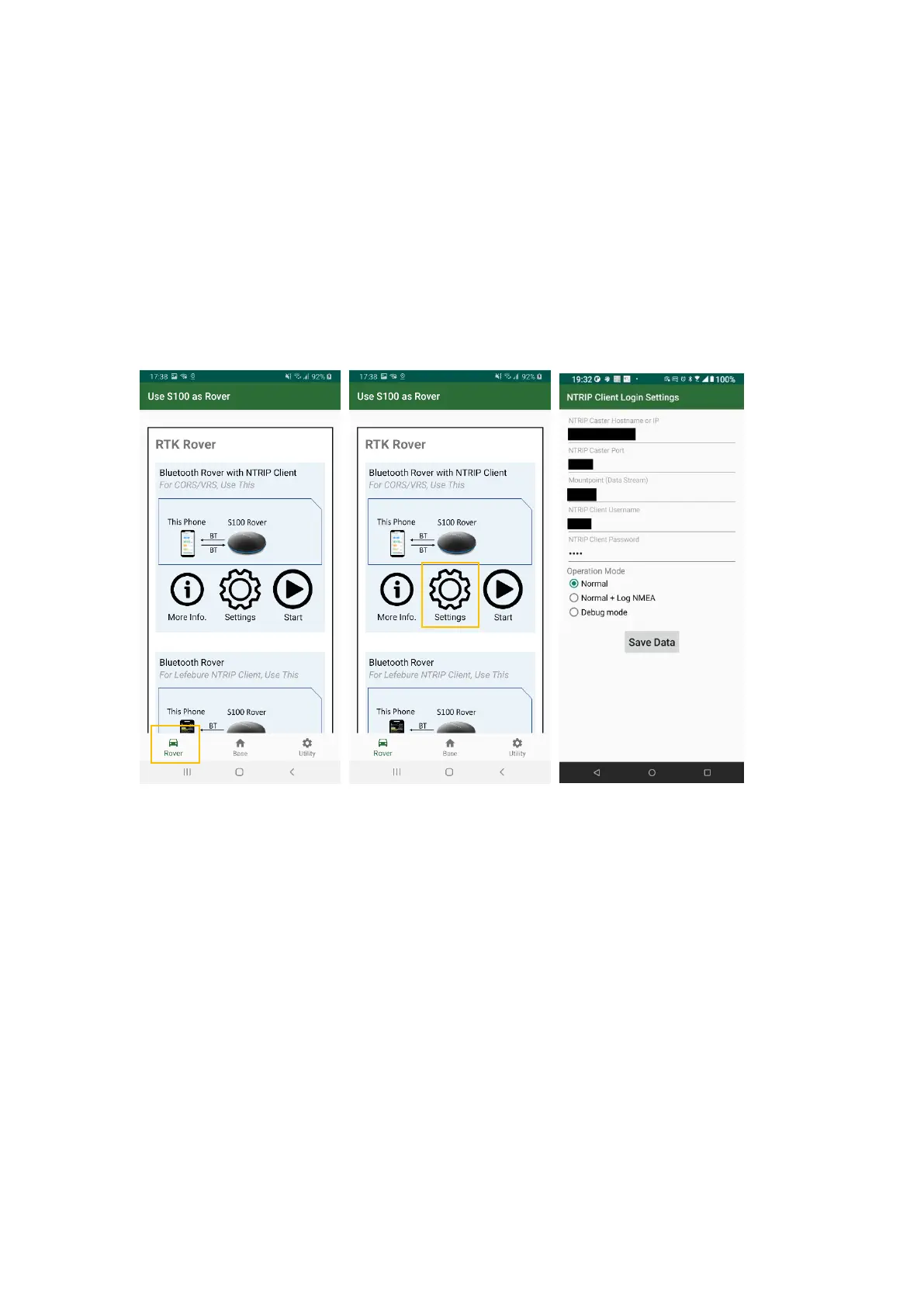

Figure 4-2
