Polaris S100 - USB Interface

6
2 USB Interface
a b
c d

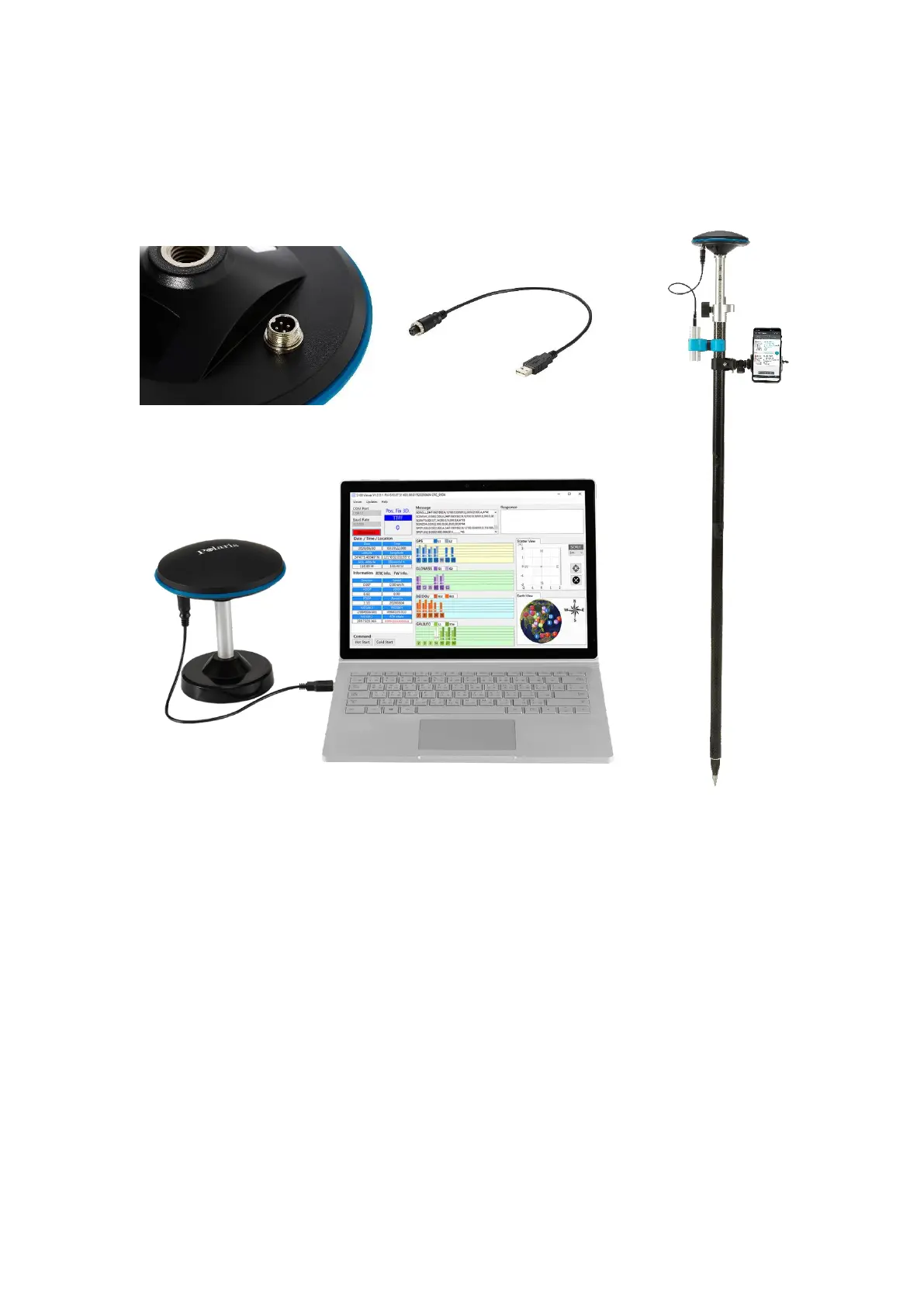

Figure 2-1
Connect S100’s 4-pin socket (Figure 2-1 a) with the included accessory USB cable (Figure 2-1 b). The S100
USB cable is used for
1. Supplying power from power bank (Figure 2-1 d)
2. Firmware update using Windows PC (Figure 2-1 c)
