39
A-2-2 USB RTK Base

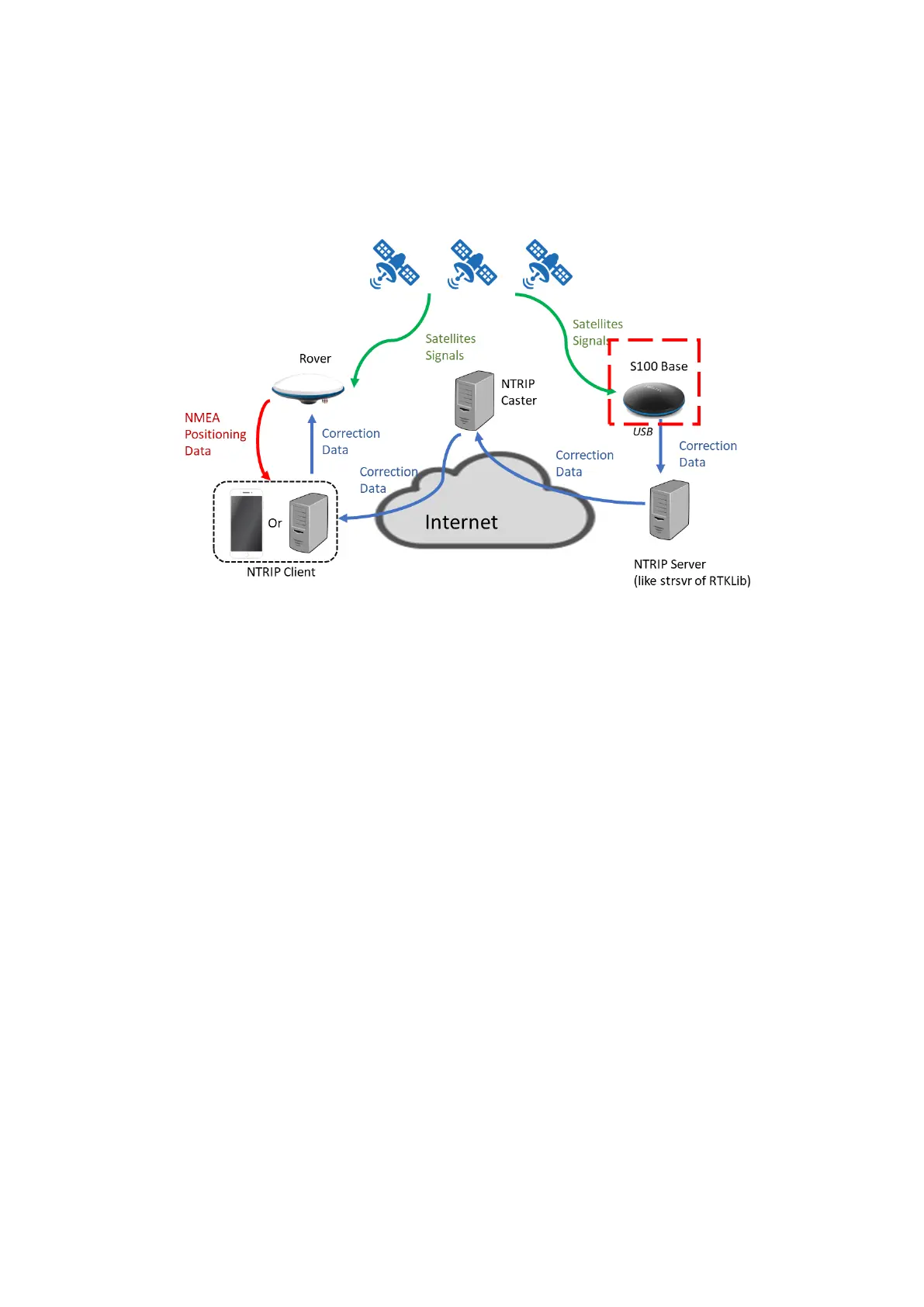

The S100 RTK Receiver, when configured as a USB RTK Base, can send out RTK correction data to a
connected PC’s NTRIP server software, e.g. strsvr of RTKLIB, as shown in Figure A-8.
Figure A-8
Follow below steps to configure S100 to send out RTK correction data via USB. The app closes when
S100 starts to work as USB RTK base.
1. Connect S100 with PC using the USB cable.
2. Click Base tab, select USB interface. See Figure A-9 a
3. Click Start of “USB Base”; the Polaris Connect app will close. See Figure A-9 b.
4. Start third-party NTRIP server tool, e.g. strsvr of RTKLIB, to send out RTK correction data. See
Figure A-9 c.
