21

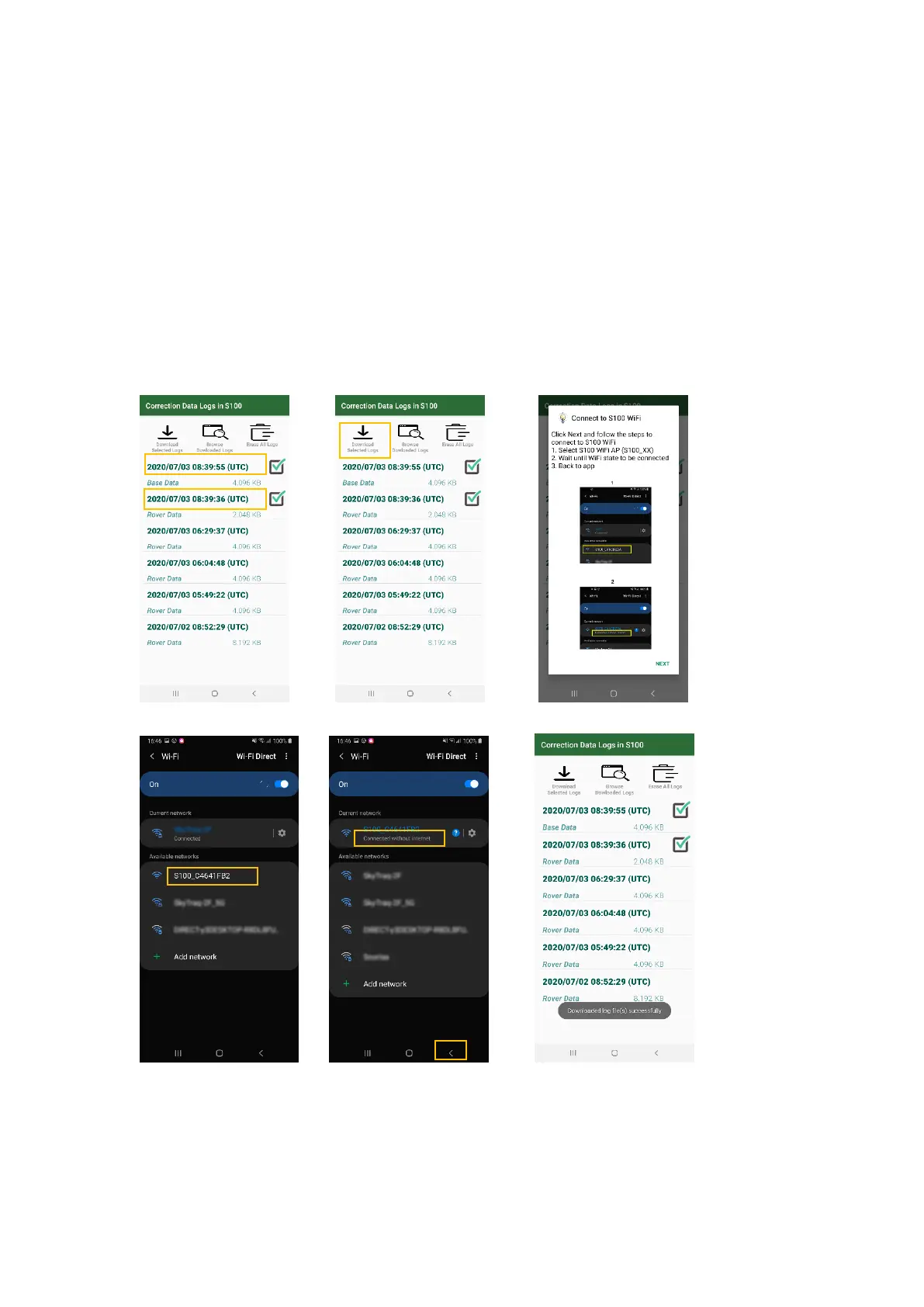

To download the log data to smartphone, follow below steps.
1. Select the log data to download by clicking its date field. The selected files are then marked. See
Figure 7-6 a.
2. Click “Download Selected Logs”. See Figure 7-6 b.
3. A pop-up window shows how to connect to S100 via WiFi connection. Read the instructions and click
Next. See Figure 7-6 c.
4. You’ll be brought to system’s WiFi configuration screen. Select the WiFi AP whose name starts with
“S100” and make sure the phone is connected with it (no Internet capability during log file transfer).
See Figure 7-6 d.
5. Click Back button. See Figure 7-6 e.
6. The file transfer starts, and you will be prompted when it finishes. See Figure 7-6 f.
a b c
d e f
Figure 5-6
