System Event Shutter Behavior
The system receives an incoming call If the shutters are closed, they remain closed until the call is
answered
The system is sending video Shutters are open
The system is in an active call and the video is muted Shutters are open
LED Status Indicators
The following topics list the LED behavior for your system. The tables list each LED indicator and its
associated status.
LED Status Indicators for the G7500 System

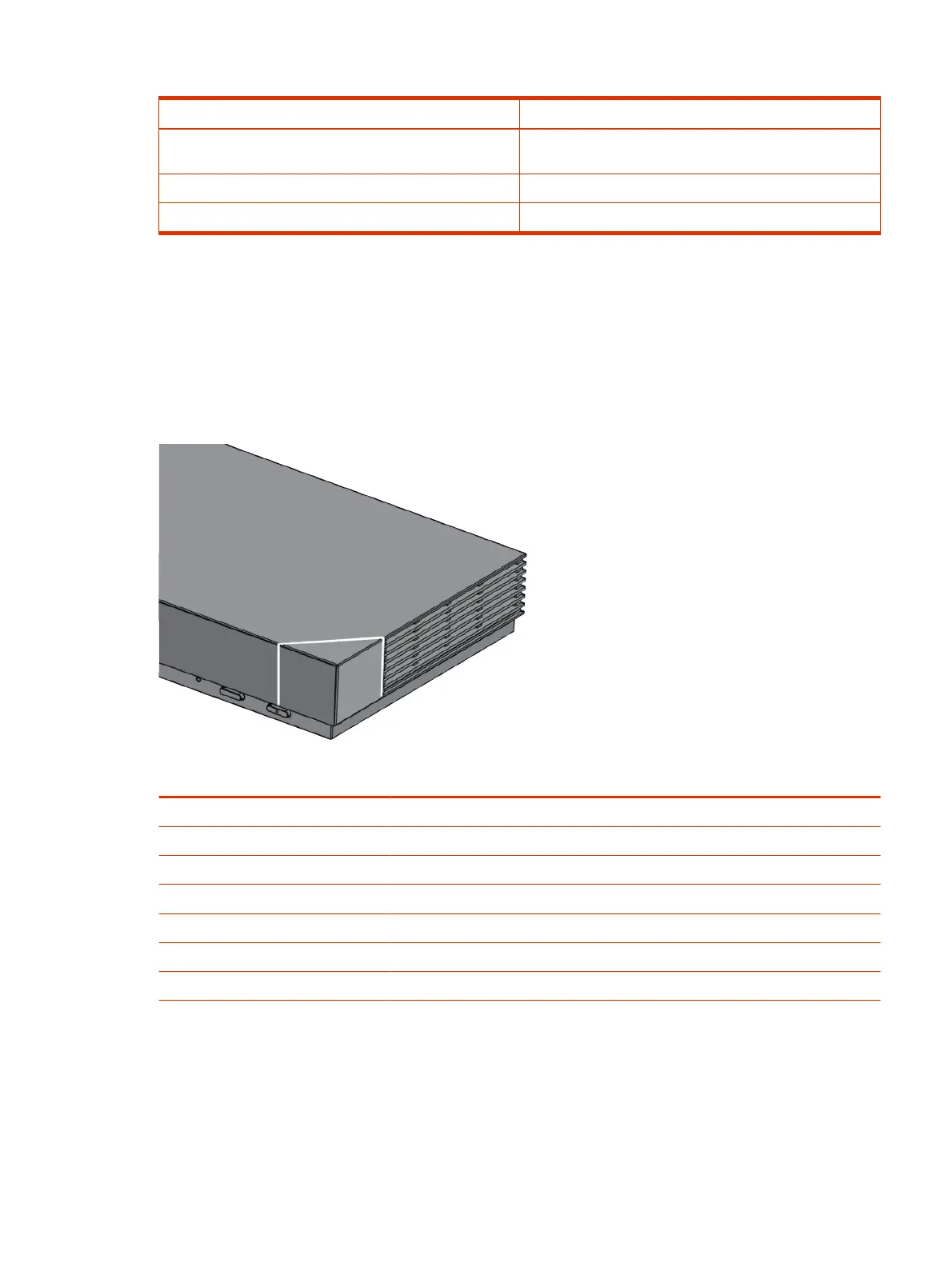

Use the LED on the front right corner of the codec to get information on the state of your system.
Table 2-15
G7500 System LED Status Indicators
Indicator Status
Blinking white Powering on
Solid white Working normally
Solid green In a call
Blinking amber Update in progress.
Solid amber Sleeping
Blinking red Error preventing normal operation
Solid red Muted microphone
LED Status Indicators for the Studio X70 System
Use the LED on the right side of the system to help you understand the system's behaviors.
LED Status Indicators
19
