15
OWNER’S MANUAL
22
25
23
24

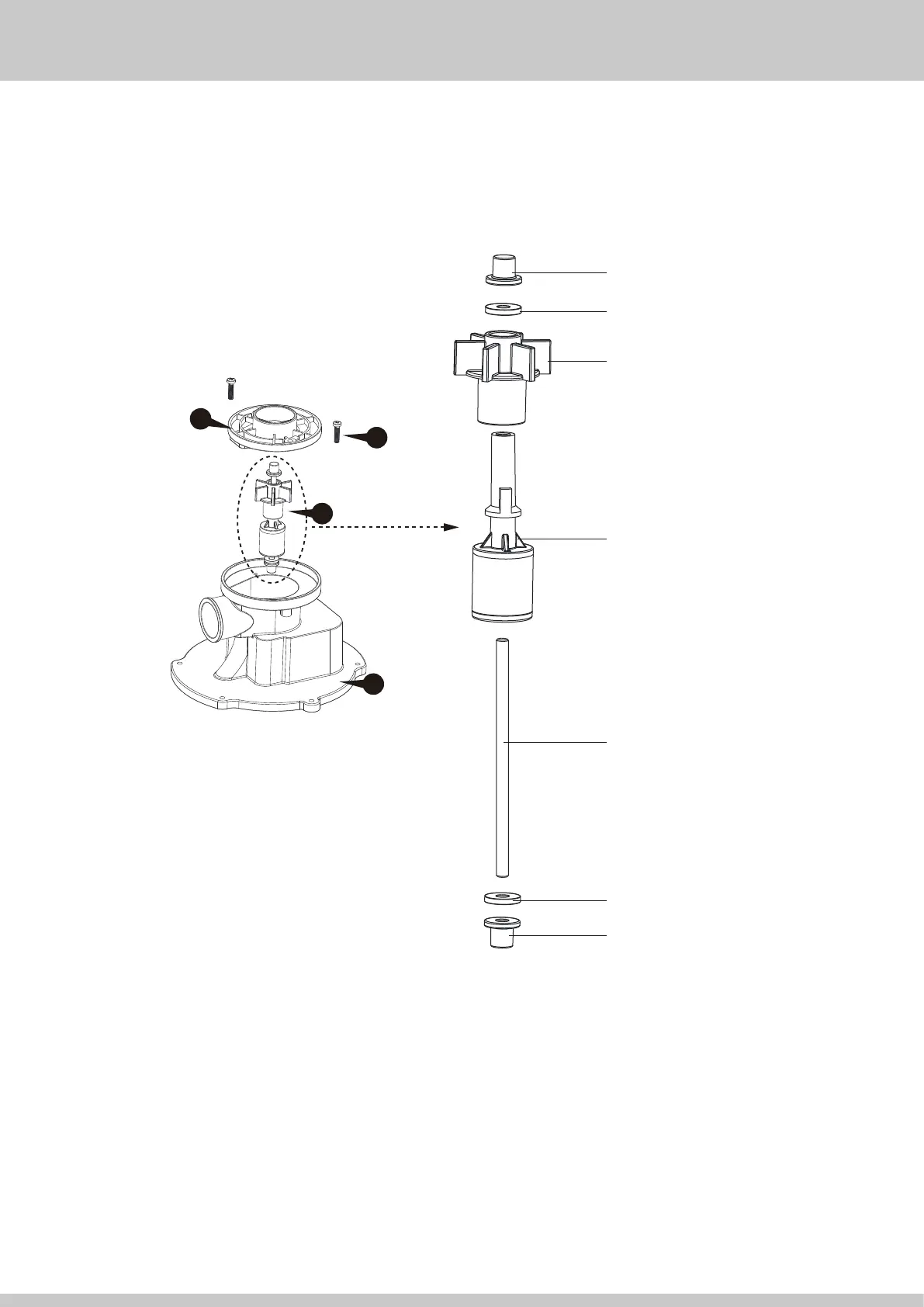

Rotor Assembly Parts
Shaft End Cap
Washer
Impeller
Magnet Axle
Washer
Shaft End Cap
STEP 2: Rotor Inspection/Replacement
1. To take out the Rotor Assembly
f
, simply remove the Volute Cover Screws
h
and pull it out from the Pump Body
d
.
2. Inspect the Rotor (see image below) to make sure that the Rotor Shaft, Magnet Axle, Impeller and other parts are intact. If either of them is broken, you can
purchase a new Rotor Assembly from polygroupstore.com without having to replace the whole Pump.
For more details, please see Pool Support – Filtration System Troubleshooting – RX System at support.polygroupstore.com
3. Once the inspection or replacement is done, carefully insert the Rotor Assembly back into the Pump Body. The force of the magnet will pull the Rotor down in place.
4. Align the Volute Cover with the top Shaft End Cap, then tighten with the Volute Cover Screws.
Rotor Shaft
(This shaft should go
through all the parts and
into both Shaft End Caps)
To Next Page
