7
NOTE:
1. The actual battery DoD (Depth of Discharge) is at 80%.
2. Slight weight deviation for each device.
3. V
mpp
@NOCT (Nominal Operating Cell Temperature)of solar panel string
should be greater than the minimum voltage of MPPT voltage. Refer to solar
panel specification for the data of V
mpp
at NOCT condition.
4.4 Parts and Functions
NOTE: The images shown in this User Manual are for reference only and may
slightly differ from the actual product, and the actual product appearance
depends on your option.
(1) Top-level

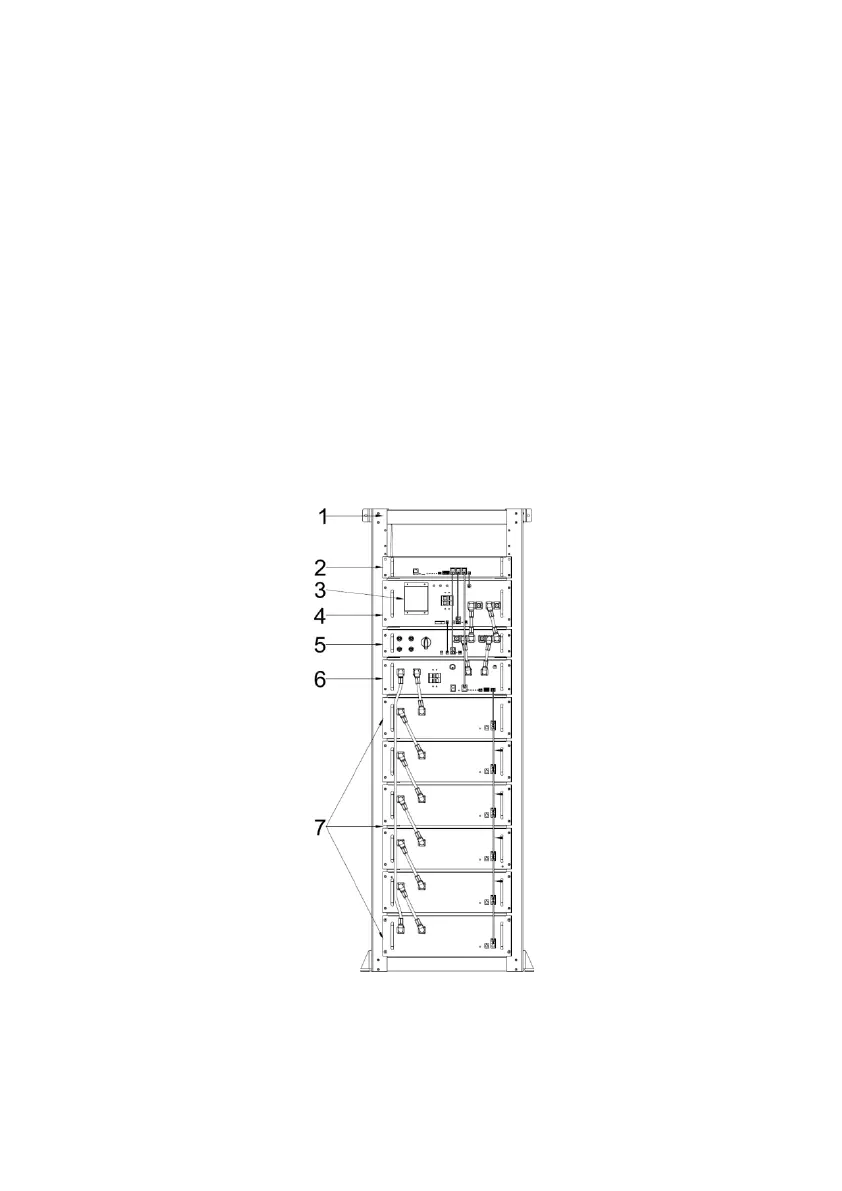

Figure 4.4.1: NetZero Front View
