POMCube iCAN NetZero - EMS Module Overview

8
Table 4.4.1: Top-level Parts
No.
Parts
Functions
1
Rack
Mechanical support.
2
EMS Module
Manage the whole system.
3
Protection Cover
Protect the AC input/output connector.
4
PCSModule
Convert the power from AC to DC or from
DC to AC.
5
Solar Controller
Track the Max. Power Point of solar power,
charge the battery, power the load.
6
BCMS Module
Manage and protect all battery modules.
7
BatteryModule
Store electric energy.
(2) EMS Module

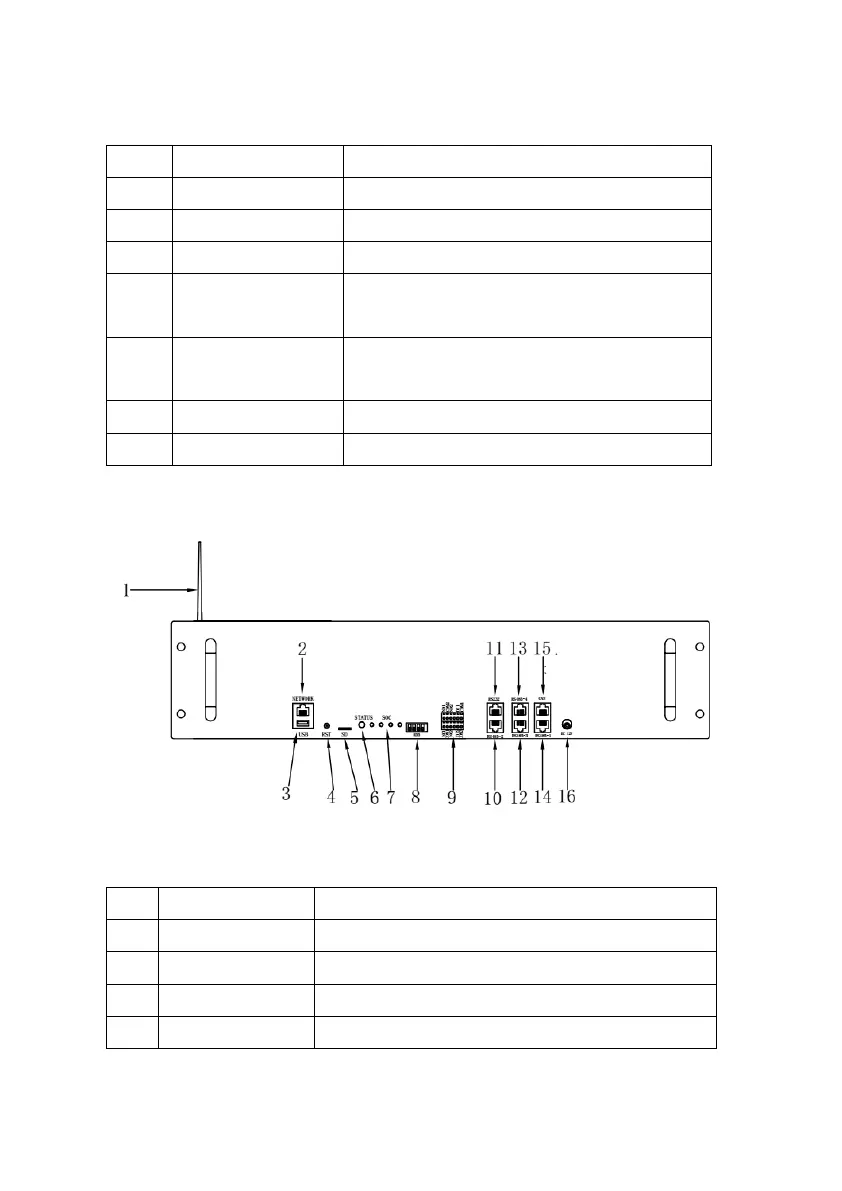

Figure 4.4.2: EMS Front View
Table 4.4.2: EMS Parts
No.
Parts
Functions
1
Wi-Fi Antenna
Enhance Wi-Fi signal.
2
NETWORK
RJ45 port, connect to the router/Internet.
3
USB
USB flash drive for storage of operation data.
4
RST
Wi-Fi reset button.
