POMCube iCAN NetZero - PCS Module Overview

10
Others: Reserved.
10
RS485-2
Communicate with solar controller.
11
RS232
For the manufacturer’s debugging.
12
RS485-3
Communicate with PCS module.
13
RS485-4
Reserved, RJ45 port, follow RS485 protocol.
14
RS485-1
Reserved, RJ45 port, follow RS485 protocol.
15
CAN
Communicate with BCMS module.
16
DC-12V
DC12V power supply input.
NOTE: Either the USB flash drive or the SD card is provided to the device.
Removing it will cause the operation data lost.
(3) PCS Module

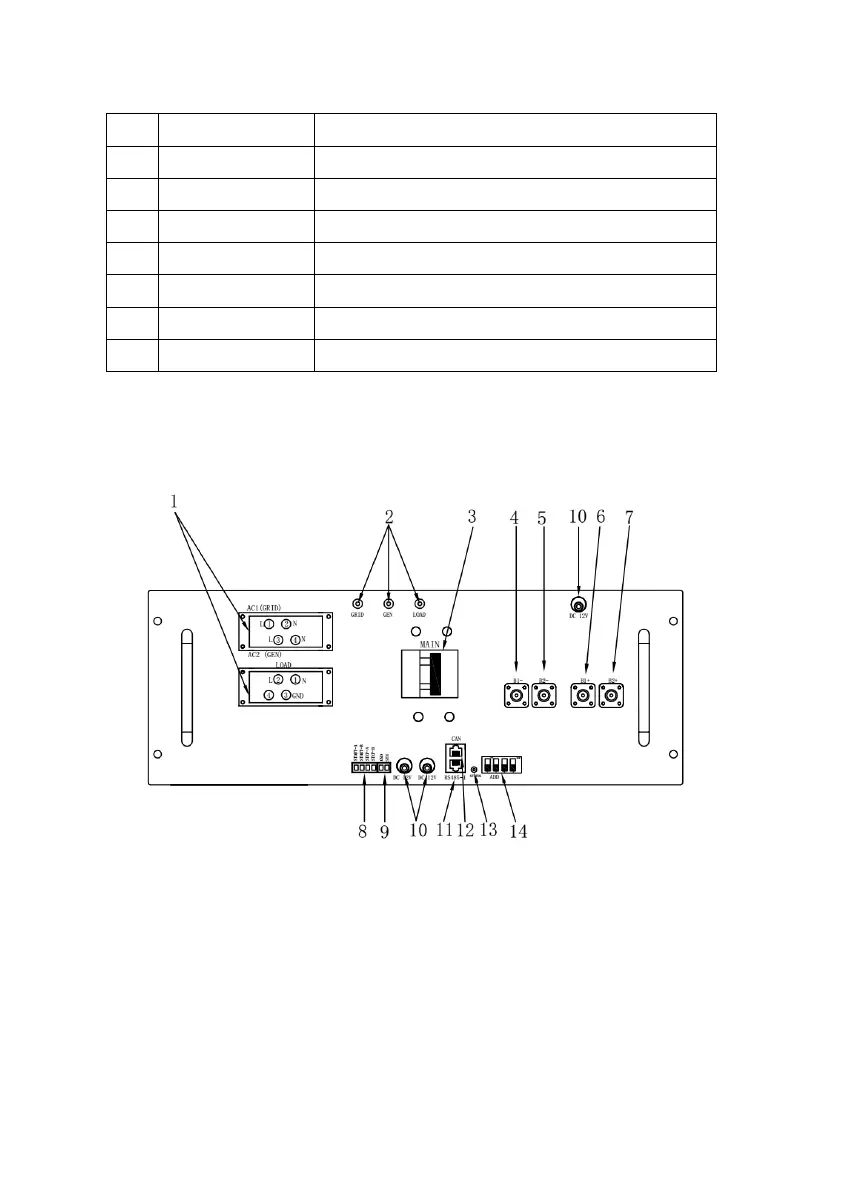

Figure 4.4.3: PCS Front View
