7/ Insert the chlorine probe in the measuring
chamber.
8/ To screw the nut of the chlorine probe until
the blocking.
CHLORINE PROBE (Ampero model)
1/ Put the filtration in MANU position and you have to shut down salt chlorinator.
2/ Remove the protection cover of chlorine probe and think of keeping it
for the wintering period.
Make the maintenance operation describe in § 6.5
4/ Connect the cable from the probe to the salt chlorinator (DIN jack 4 pins)
ORP PROBE (PRO model)

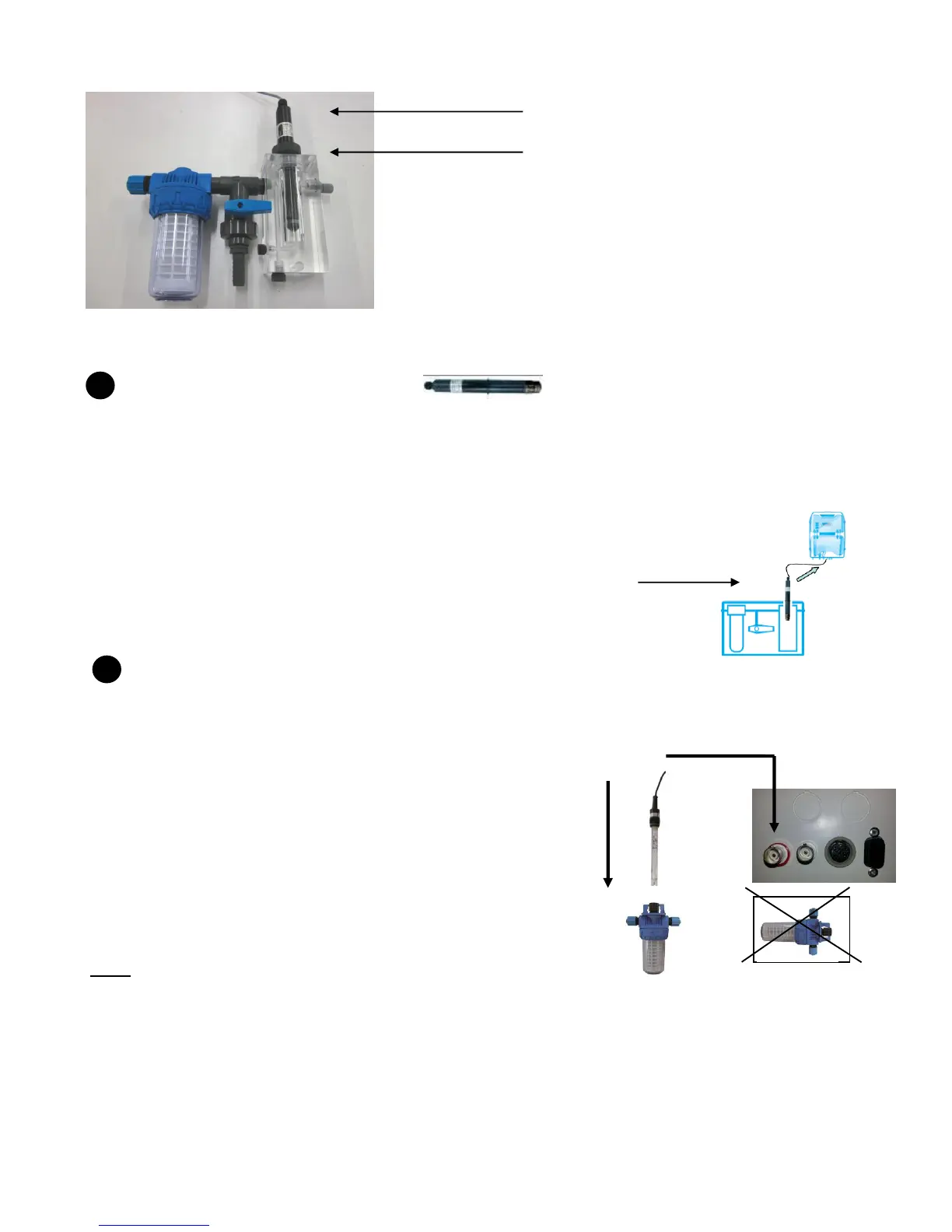

As you can see on installation diagram, ORP probe has to be assembly to expected
analysis chamber (see §3.8).
1/ You have to place analysis chamber. Orifice has to be angled
upward.
2/ Remove plastic protection from ORP probe then you have to be
assembly it on analysis chamber.
3/ Connect the cable of the ORP probe (BNC jack) under the controller
box with red ring.
Note: The probe must be installed vertically on analysis
chamber.
A different fitting will modifies the measurement exactness of probe (can become ineffectiveness).
