Pool Technologie Poolsquad - USE AND OPERATION; Control Panel and Pad Overview

AUTOSALT®/POOLSQUAD®/POOLSQUAD® AMPERO/PRO - PAPI004082 – FR/EN/ES/DE - Rev.03.16
11
PROD
ON
100%▼
pH
ON
7.0◄
ll►
Cl
ON
1.0 ppm
pH
ON
7.0 ◄
►
25
°C
◄►
PROD
ON
100%▼
☺
4/ USE

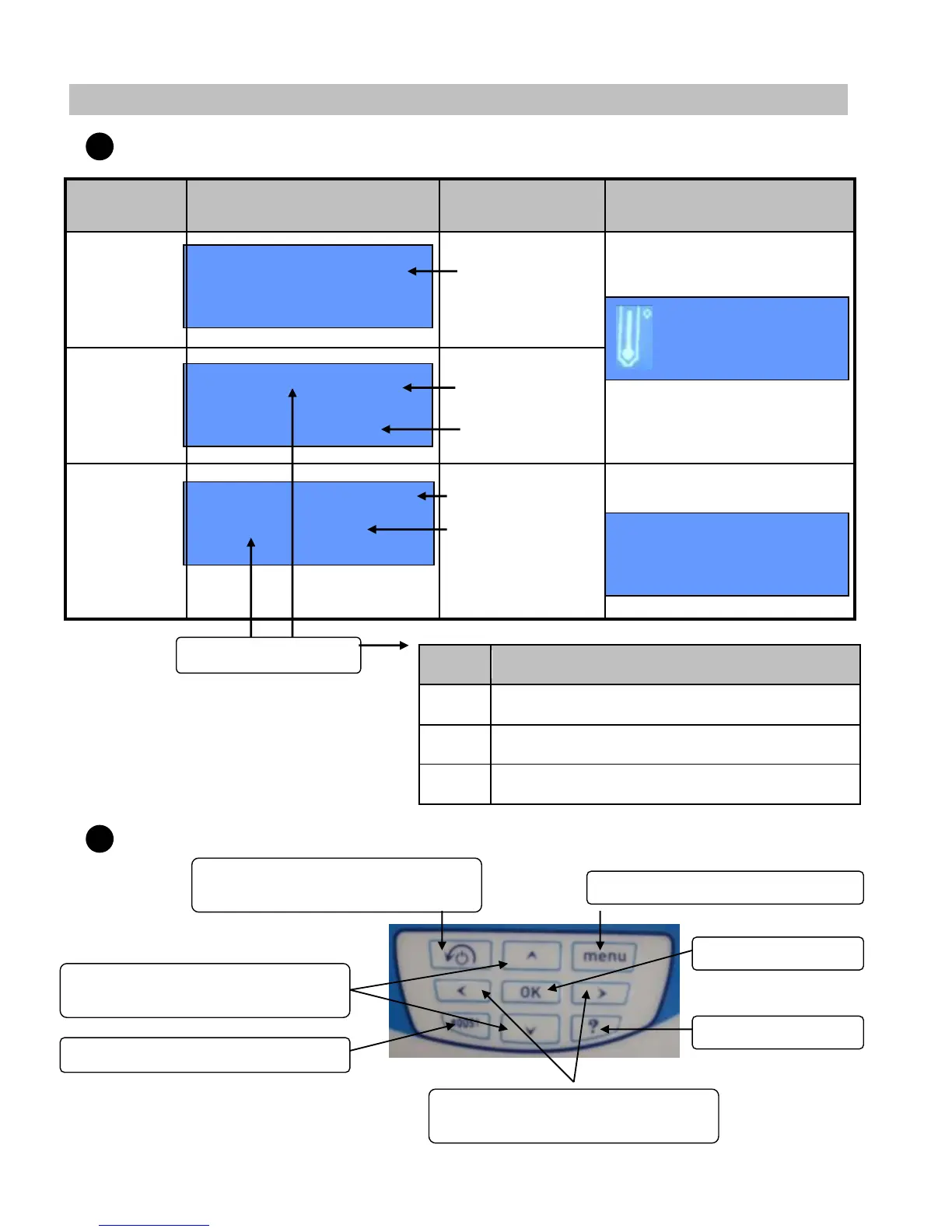

CONTROL PANEL
Code
Etat
OFF
Deactivated function
STOP
An alarm put in safety the function
ON
Activated function, stopped chlorine production
CONTROL PAD
1
Setting of chlorine production %/
Navigation in menus
2
Validation Key
Access Key to the setting menu
Help Key
Overproduction release Key
Pool parameters display /
Navigation in menus
Return key to the previous screen /
stand-by mode of the device
pH value
Functions statement
% of chlorine
production
Free chlorine value
Ph value
After 5 minutes without action,
the device will go in sleep mode
Poolsquad ®
2G
Amperometric
chlorine probe
% of chlorine
production
Poolsquad®
After 5 minutes without action,
the device will go in sleep mode
Autosalt®
Sleep mode screen
Detail of display
Screen
Model
