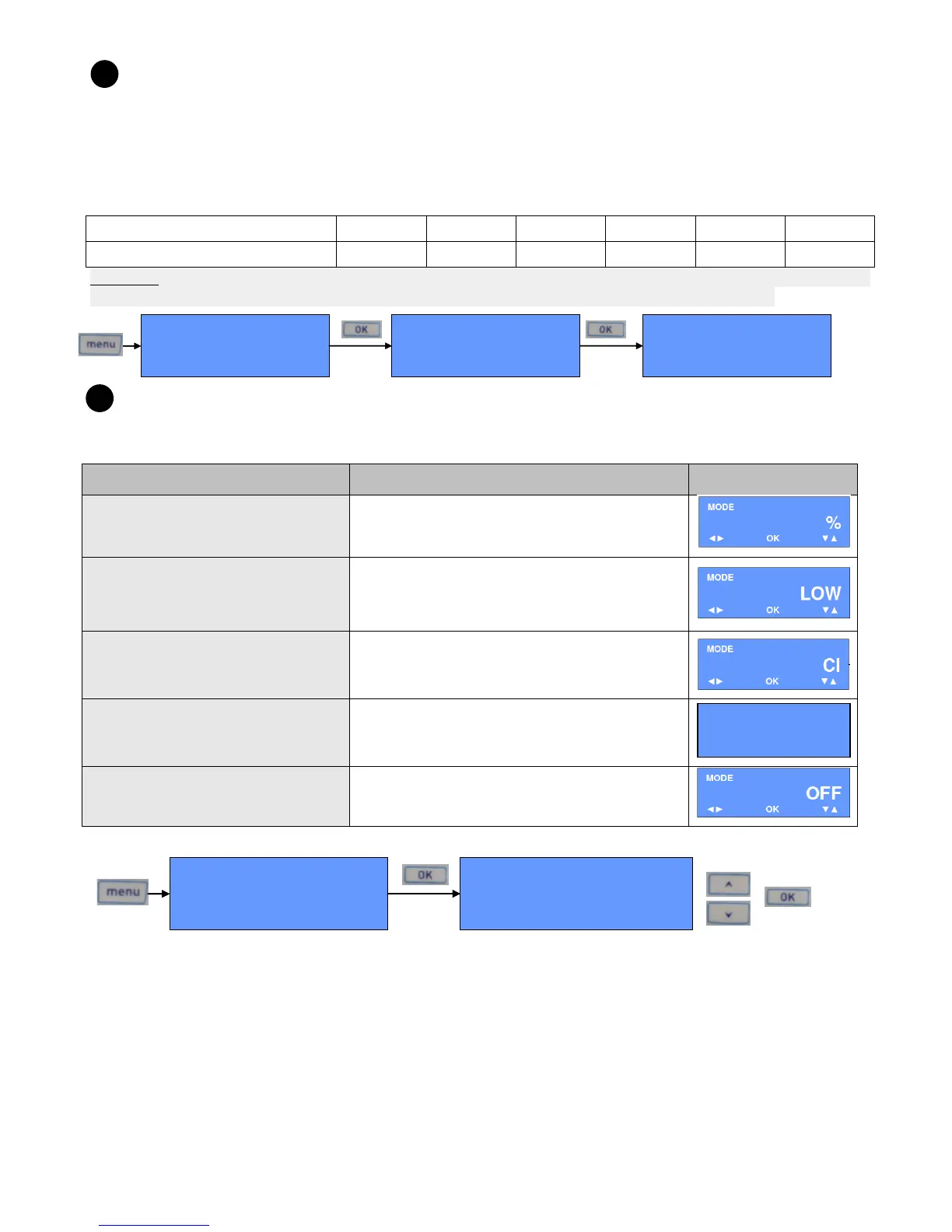

SELF-CLEANING OF THE CELL
This device is equipped with an automatic cleaning of the chlorination cell by a polarity inversion of the cell’s
poles. For an optimum cleaning of the chlorinator cell, these inversion frequencies must be adjusted
depending on the water hardness of your water.
✓ Measure the water hardness (TH) with a supplied tongue.
✓ Adjust your inversion frequencies in the setting menu according to the following board :
TH (°f)
0 - 5
5 - 12
12 - 20
20 - 40
40 - 60
> 60
Inversion frequency (hours)
16
10
8
6
4
2
Important: the automatic cleaning of the cell does not have authority to compensate a hardness of very high water.
Beyond a TH of 60°f, it is imperative to act first of all on the balance of the water to lower its hardness.
CHLORINE PRODUCTION AND MODE OF OPERATION
✓ According to its configuration, the device has several modes of operation. The chlorine production will
depend on the activated mode of operation :
Mode
Configuration
Setting
Standard
Continuous Production of chlorine by
regulation of a percentage
Pool equipped with a pool cover
Reduced production when the pool cover is
closed (in case the cable was settled, see
§3.7, p.8).
Free chlorine regulation option
(Poolsquad ®Ampéro)
Setting of a free chlorine instruction and
regulation by amperometric probe.
Free chlorine regulation option
(Poolsquad ®Pro)
Setting of a free chlorine instruction and
regulation by ORP probe.
OFF
To deactivate the chlorination salt function
✓ Change the mode to reach the setting menu :
5
INVERSION TIME
6H00
◄► OK ▼▲
CHLORINATION SALT
◄► OK
INVERSION TIME
VALID
INVERSION TIME
6H00
◄► OK ▼▲
CHLORINATION SALT
◄► OK
INVERSION TIME
VALID
CHLORINATION SALT
◄► OK
MODE
% / LOW / Cl / OFF
◄► OK ▼▲
CHLORINATION SALT
◄► OK
MODE
% / LOW / Cl / OFF
◄► OK ▼▲
4
MODE
Rx
◄► OK ▼▲
