POOLEX MAG - Exploded View

FR | 9
EN
2. DESCRIPTION

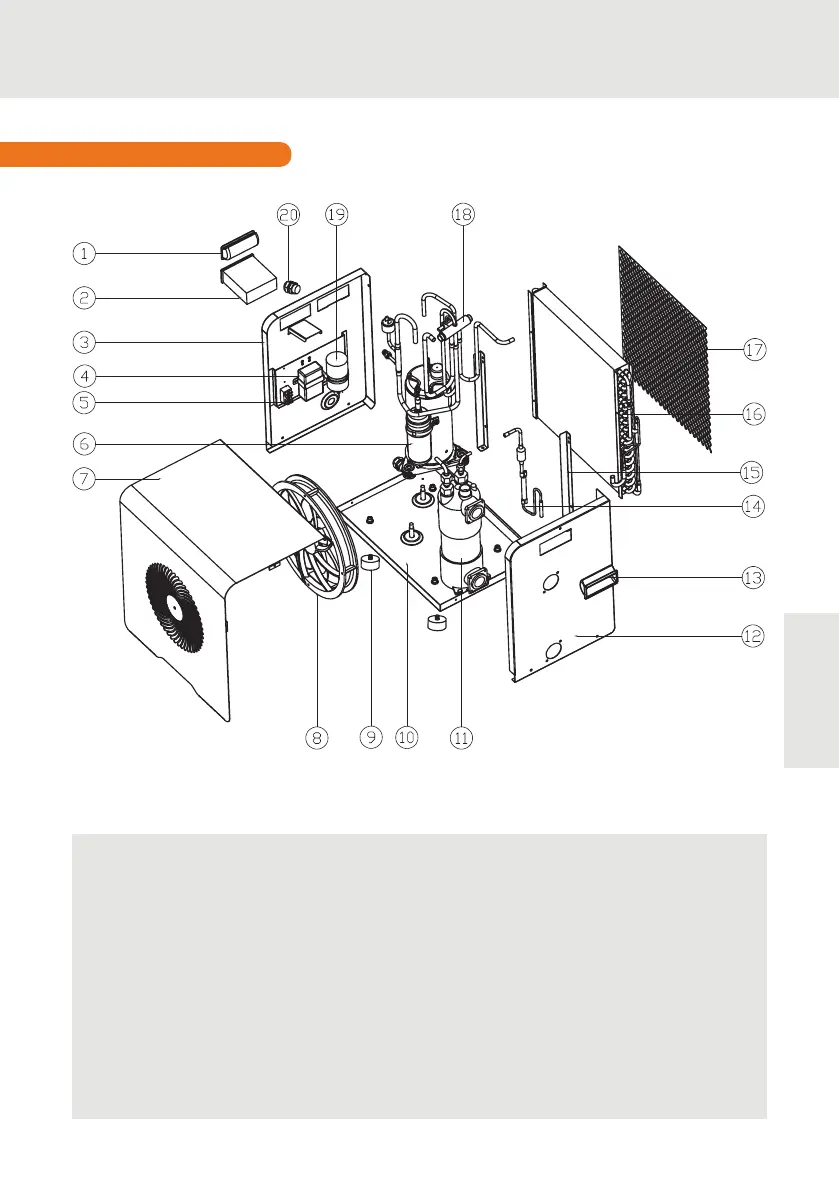

2.5 Exploded view
1. Left hand grip
2. Control panel
3. Left side panel
4. Electric transformer
5. Electrical control box
6. Compressor
7. Front panel
8. Fan and motor
9. Rubber Feets
10. Bottom panel
11. Heat exchanger
12. Right side panel
13. Right hand grip
14. gas pipe
15. Right side Panel
16. Evaporator
17. Protective grill
18. 4-way valve
19. Compressor capacitor
20. Electrical terminal block
