POOLEX Silverline MINI - Exploded View

11

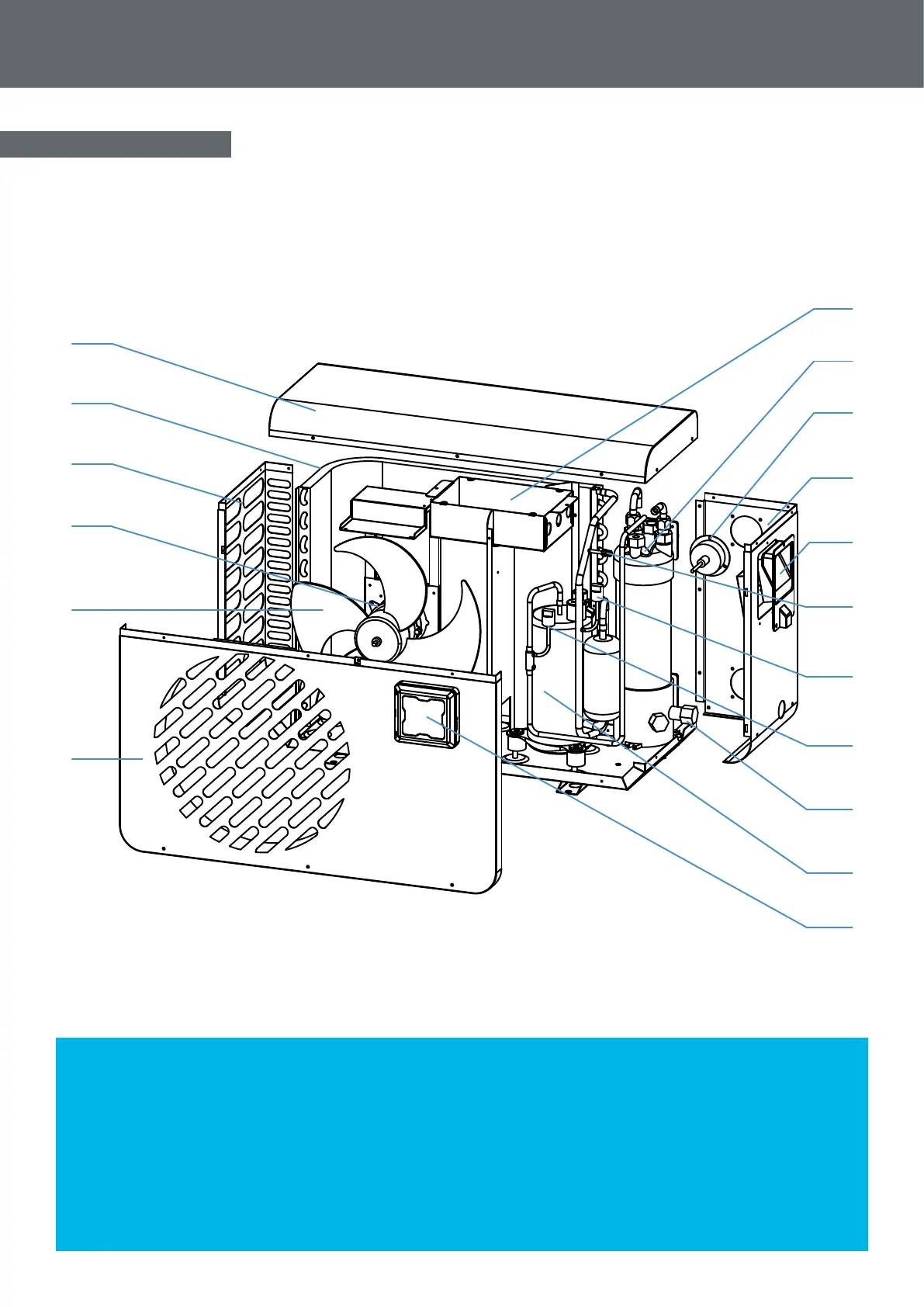

2.5 Exploded view
2. Description
1. Front panel
2. Fan blade
3. Fan motor
4. Left side panel
5. Evaporator
6. Top panel
7. Electrical control box
8. Heat exchanger
9. Pressure gauge
10. Right side panel
11. Couvercle du boîtier électrique
12. Service valve
13. Low pressure sensor
14. High pressure sensor
15. Drain plug
16. Compresseur
17. Sealed enclosure for remote control
6
1
2
3
5
4
8
7
9
10
11
12
13
14
15
16
17
