6 - ENG
SAVE THESE INSTRUCTIONS
NAIL SPECIFICATIONS
PIN138
Nails 23 gauge wire (headless or slight head pins)
Lengths 5/8" (16 mm) –1-3/8" (35mm)
Air Inlet 1/4" NPT (6.4mm)
NOTE: Use only PORTER-CABLE approved fasteners

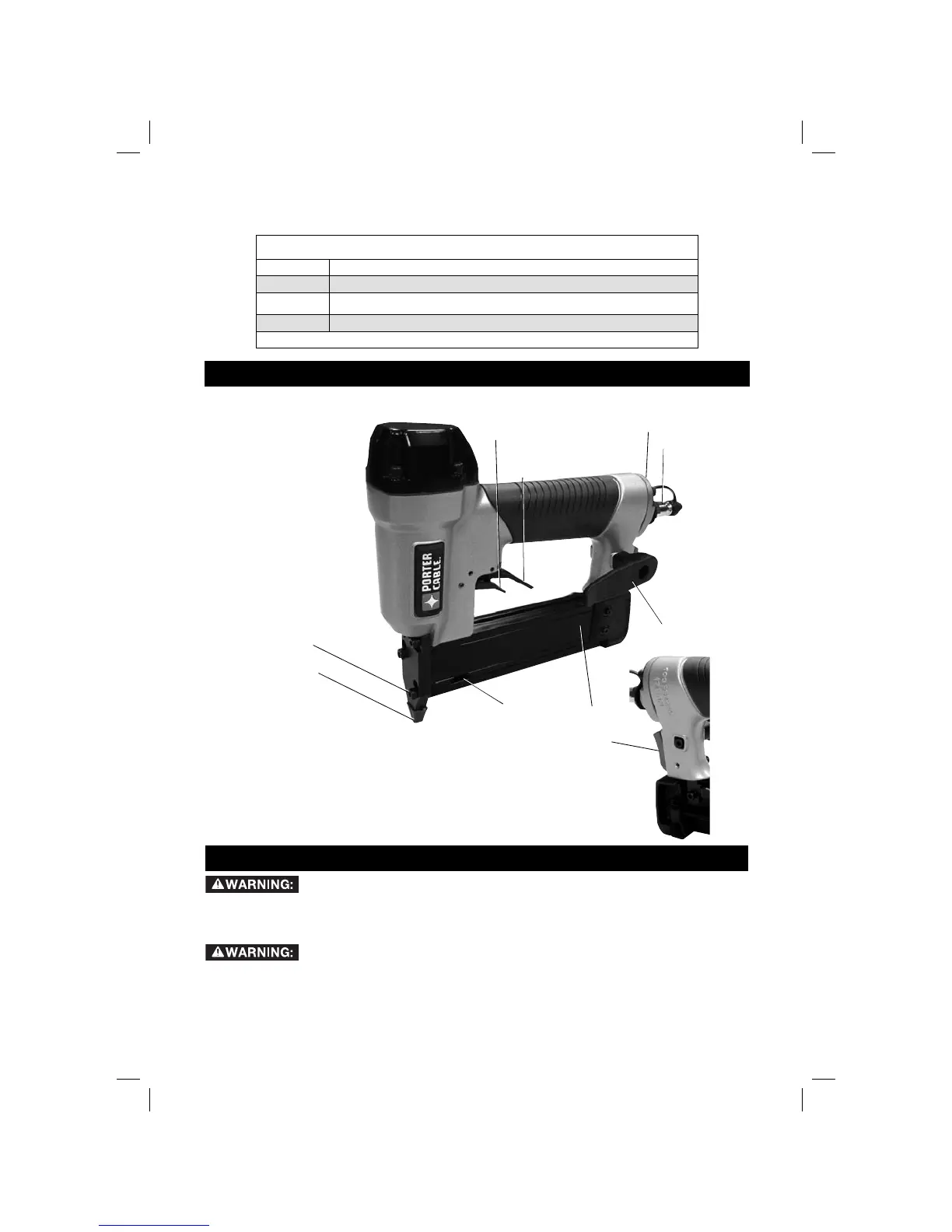

TOOL PARTS
A
H
C
B
F
Fig. 1
A. Trigger
B. Safety trigger
C. Air Inlet with quick
connect coupler
D. Rear exhaust
E. Magazine release
F. Magazine
G. Low nail indicator
window
H. Nosepiece
I. No-Mar pad
J. Belt hook
J
G
D
I
E
ASSEMBLY
Disconnect air line from tool and remove fasteners from magazine
before making adjustments or personal injury may result.
TRIGGER
Keep fingers AWAY from trigger when not driving fasteners to avoid
accidental firing. Never carry tool with finger on trigger.
The tool is shipped from the factory with a dual trigger actuation system.
