POS-X EVO-TP4 - VFD Installation

10
VFD Installation
4-2.

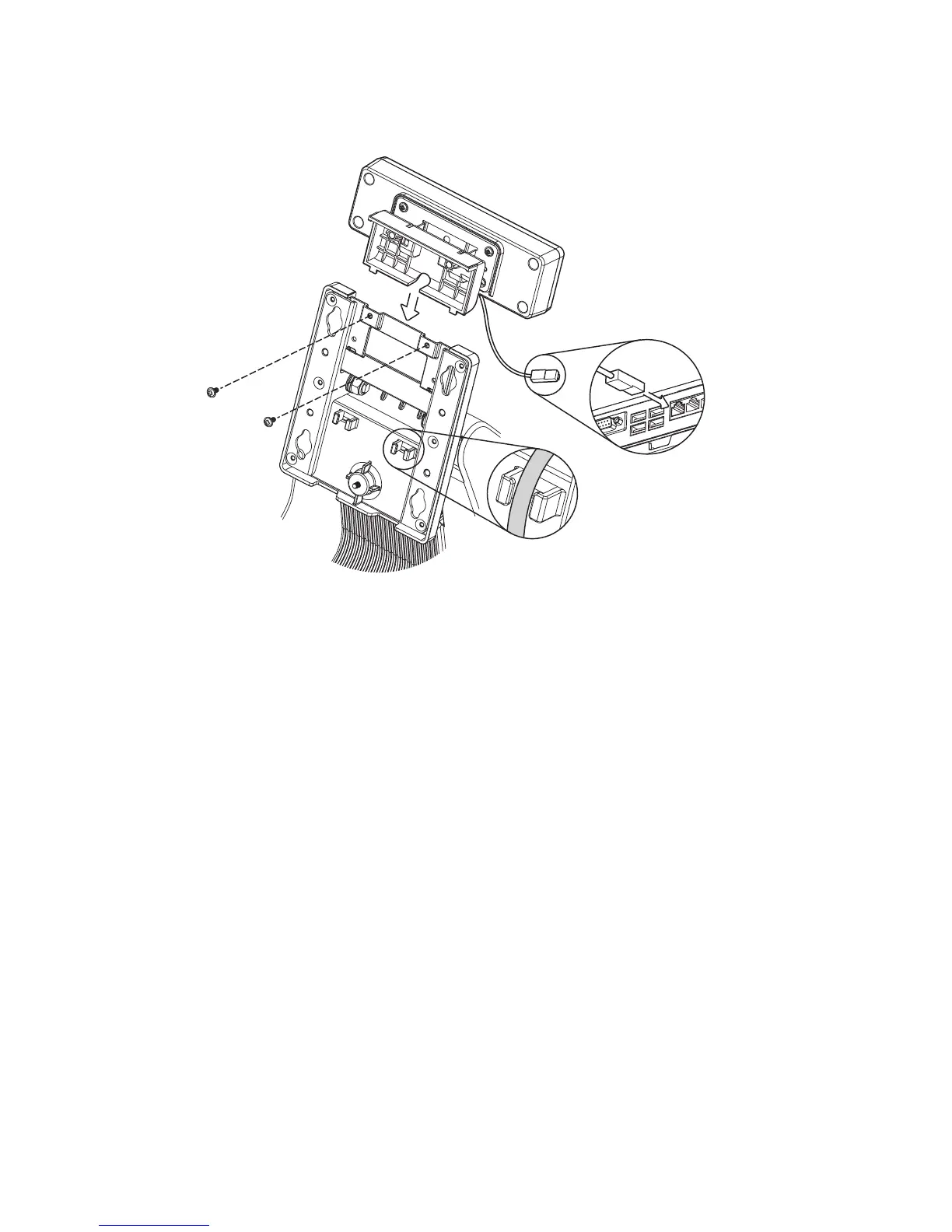

Follow steps in Chapter 3-1 to disassemble the system stand.1.
Attach the VFD module to system by fastening the screws (x2).2.
Route the cable through cable mangement on the system stand.3.
Connect the RJ-45 cable to COM 4 on the systems IO panel. Make sure the 4.
system is powered off.
