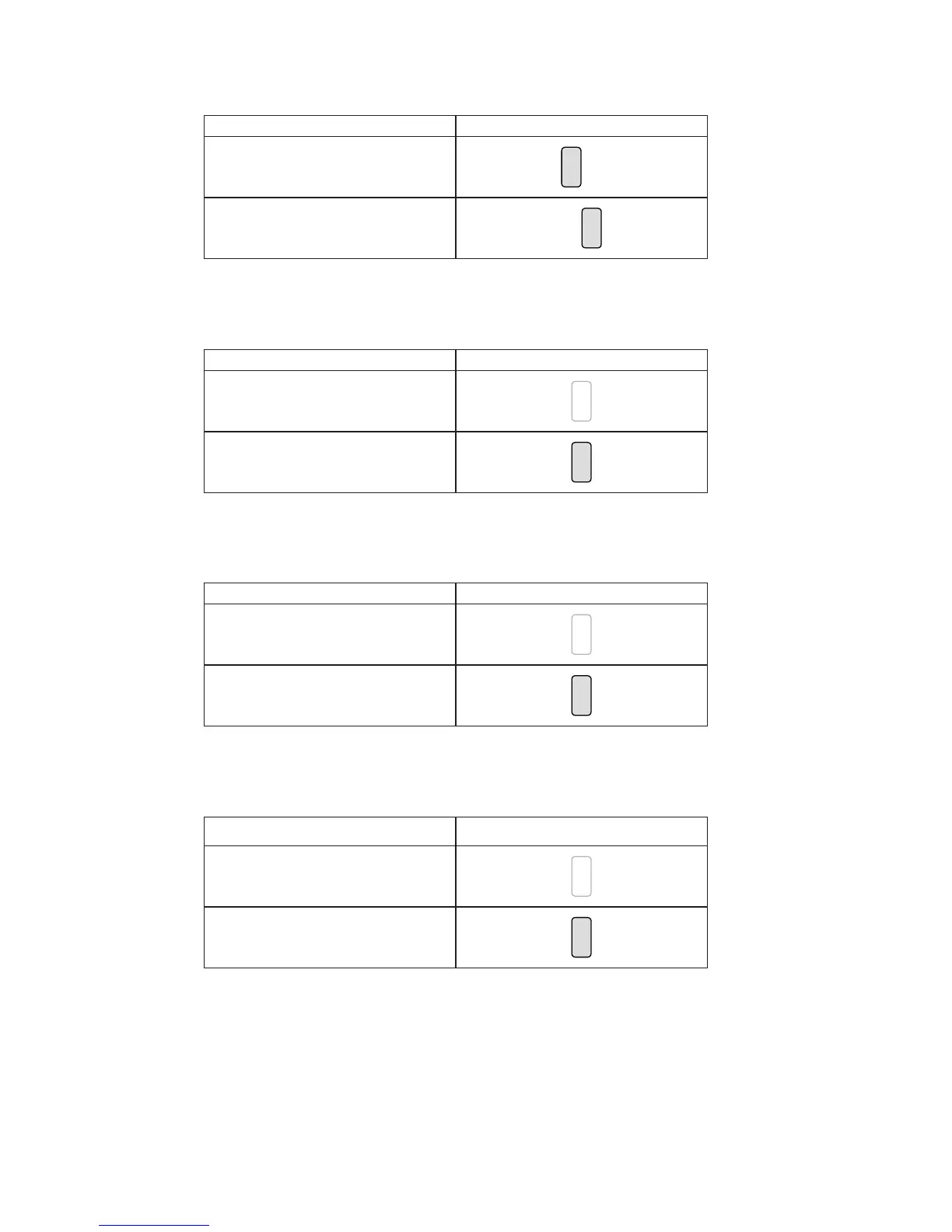

Cash Drawer Power Setting
Function JP11
+12V
2
1 3
4
▲+19V
(for 24V Cash Drawer)
2
1 3
4
Power Mode Setting
Function JP9
▲ATX Power
2
1
AT Power
2
1
VGA Power Setting
Function JP4
▲No Power
2
1
+12V
2
1
System Reset
Function JP12
▲System Normal
2
1
System Reset
2
1
▲ = Manufacturer Default Setting
