PRK-8000 Operation Manual
- 3 -
3. Description

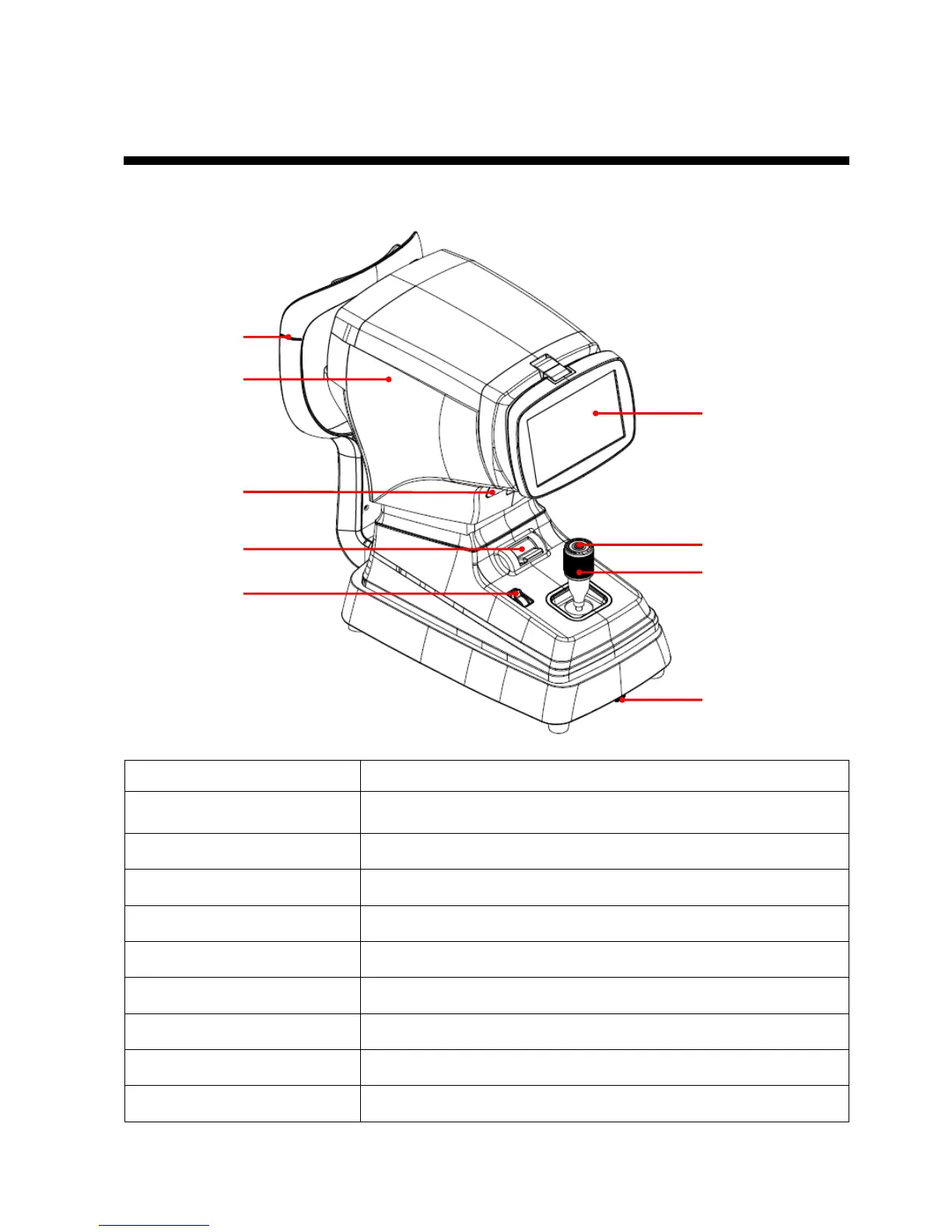

3.1 Main Unit
Name Function
① Height Adjustment mark
Align the height of the examinee’s eye with this mark by adjusting
the height of chin rest.
② Measurement Head
Unit that performs measurement.
③ Printer Print the measured result.
④ Stage Holding Lever
Holds the movement of stage (sliding table).
⑤ Chinrest Lever Align the height of chin rest up and down.
⑥ Monitor Monitor that displays Measurement and SET Modes displays.
⑦ Measuring button
Press this button for measurement.
⑧ Operation Lever
Use this lever for alignment and focusing.
⑨ Clamping bolt
Makes the system stage fixed.
②
③
①
⑤
④
⑦
⑥
⑧
⑨
To Next Page
