5.10 Gas valve

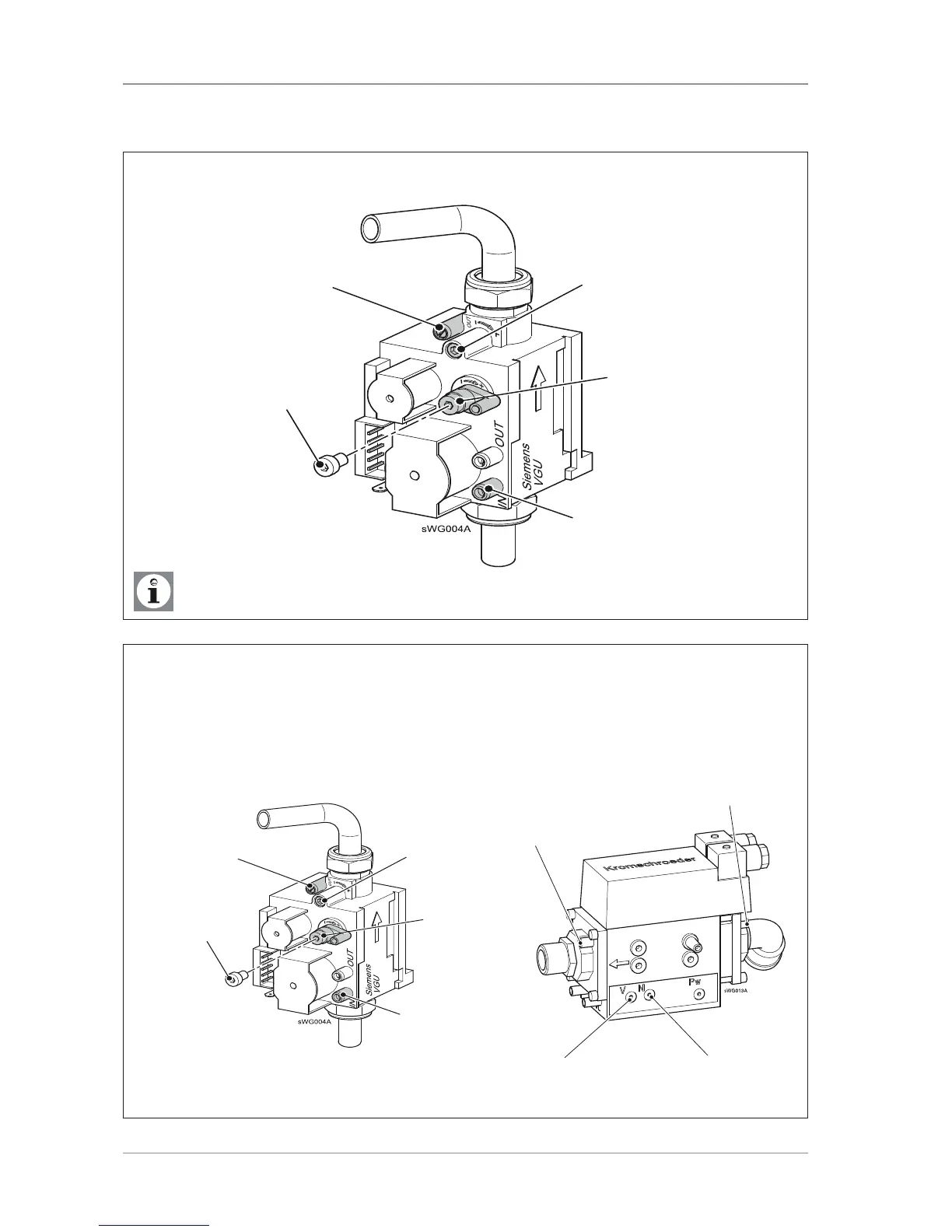

Fig. 5: Gas valve (setting for injector pressure with key Torx T15)
Measuring nozzle for
connecting pressure
Setting for full load
Setting for lowl load (please
remove protective cap)
Measuring nozzle for
injector pressure
Protective cap
The Torx-key is attached.
PARAMOUNT two 30 / 40
(Fa. Siemens VGU)
Fig. 6: Gas valve (setting for injector pressure with Allen-key SW 2.5)
Setting for
full load
Setting for
low load
Measuring nozzle for
injector pressure
Measuring nozzle for
connecting pressure
PARAMOUNT two 60
(Fa. Siemens VGU)
PARAMOUNT two 80
(Fa. Kromschroeder CG 120 R01)
Measuring nozzle
for connecting
pressure
Setting for
full load
Setting for low
load (please
remove
protective cap)
Measuring nozzle for
injector pressure
Protective cap
