Power Master PM-6000LC - Operation Modes of the Solar Inverter

18
No. SOLAR INVERTER STATUS POSSIBLE CAUSE ACTION
6
AC utility power fails .The
load is supplied by battery
power. Buzzer alarm
sounds every 4 seconds.
1. AC utility
power failure.
2. AC input
connection
may be not
correct.
1. Reduce the less
critical load in
order to extend
backup time.
2. Please check
the rated input or
connected line.
7
AC utility fails. Solar Inverter
is in battery backup mode.
Buzzer alarm beeps every
second.
Battery power is
approaching low
level.
Solar Inverter will
shut down
automatically.
Please save data
or turn off the
loads soon.
8
AC utility power fails. Solar
Inverter has shut down
automatically.
Battery runs out Solar Inverter will
restart up when
AC utility power is
restored.
19
7. OPERATION MODES OF THE SOLAR INVERTER

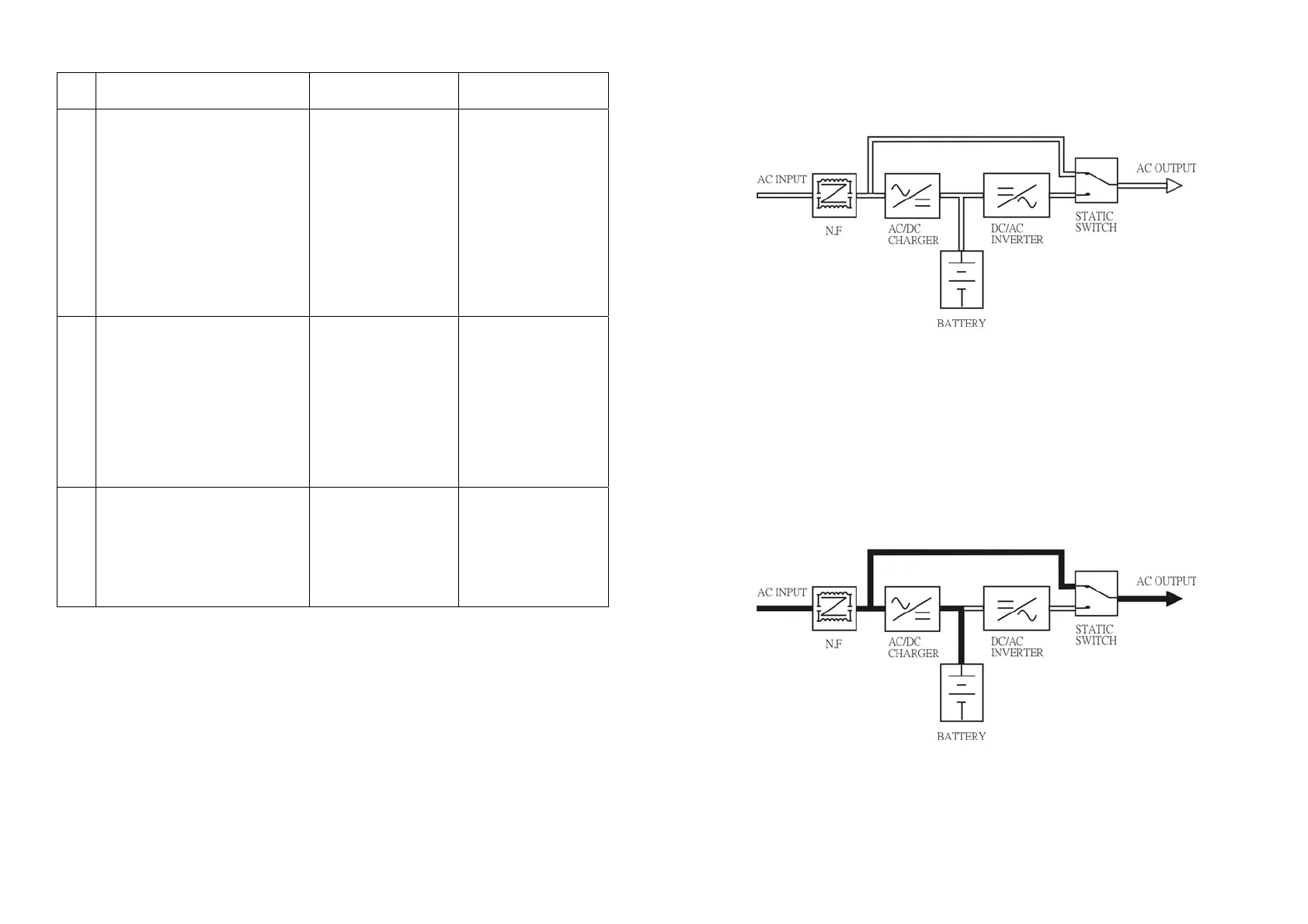

7.1 Solar Inverter System Block Diagram
7.2 Normal Operation
There are two main loops when AC utility is normal: the AC loop and the
battery charging loop. The AC output power comes from AC utility input and
passes through static switch to support power to load. The battery charging
voltage comes from AC utility input and converted by AC/DC charger to
support battery-charging power.
