45

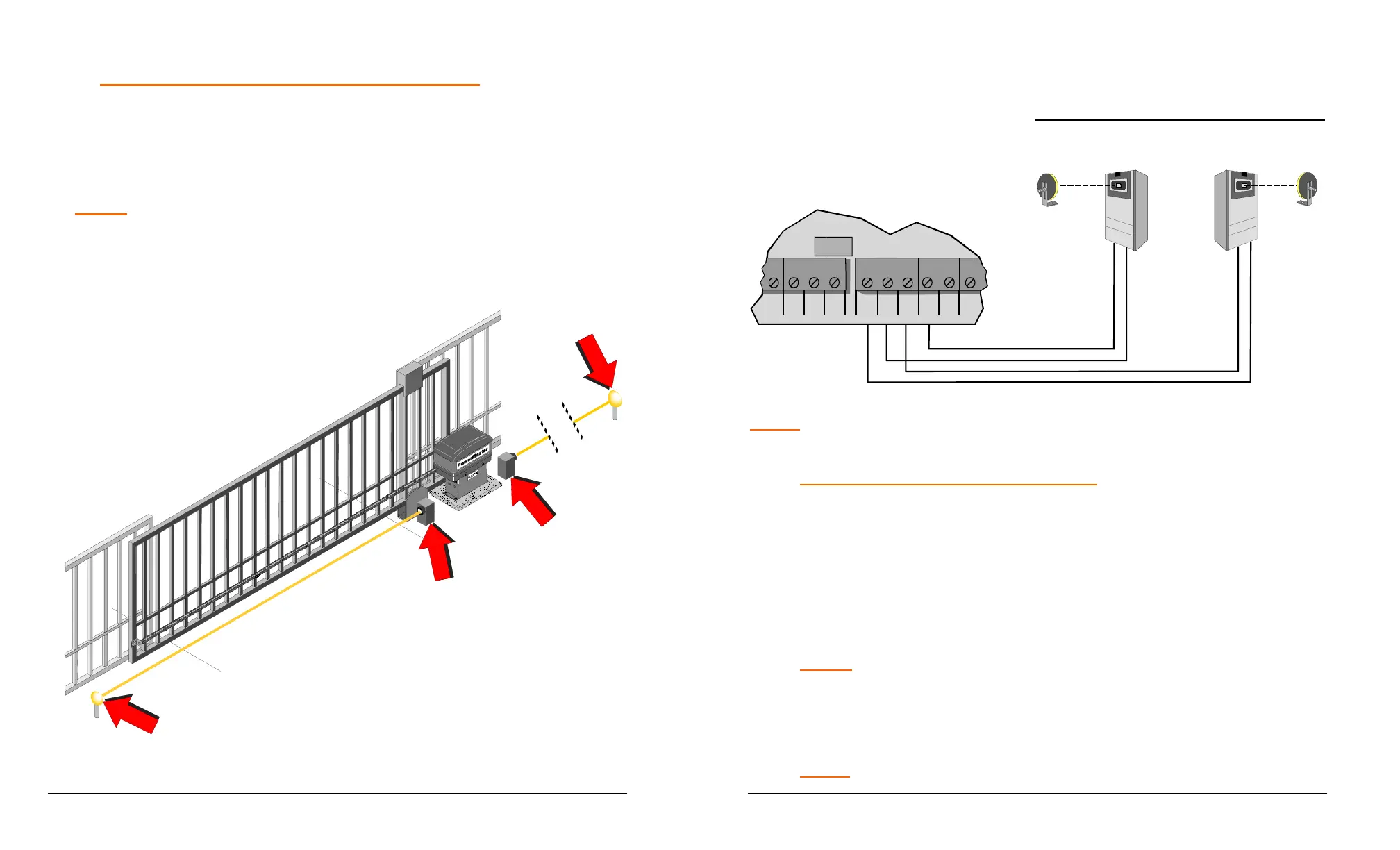

NON-CONTACT SENSOR INSTALLATION
1. Install photoelectric cell as close to inside of gate as possible.
2. Photocells should be installed across the gate opening and behind the
gate (as shown below) at least 10 inches above ground.
NOTE:
A separate pedestrian gate must be installed if there is no other entry access
but the vehicular gate.
Photo Electric Reflector
(Mount Past Gates Full
Close Position )
Photo Electric Cell
(For Close Direction)
Photo Electric Reflector
(Mount Past Gates Full
Open Position)
Photo Electric Cell
( For Open Direction)
46
3. Connect NON-CONTACT sensors to the control board as shown below.
NOTE: Close photocell is connected to “CLO PHO” and “COM” terminals. Open
photocell is connected to “OPN PHO” and “COM” terminals.
AFTER SENSORS ARE CONNECTED:
1. Turn on power.
2. Make sure the photo-beams are properly aligned per the
manufacturer’s specifications.
3. Test the CLOSE obstruction sensing system for proper operation, by
blocking the beam across the gate opening while the gate is running
closed.
NOTE: The gate should stop and reverse a short distance and then stop.
4. Run operator to close limit.
5. Test the OPEN obstruction sensing system by blocking the beam
mounted at the back area of the gate while the gate is running open.
NOTE:
The operator should repeat the stop and reverse procedure.
TB2
NON CONTACT SENSOR CONNECTION
Close Photocell
Sensor
Open Photocell
Sensor
Reflector
Reflector
OPN
CLO
STO
COM
COM
COM
OPN
PHO
CLO
PHO
SHW
