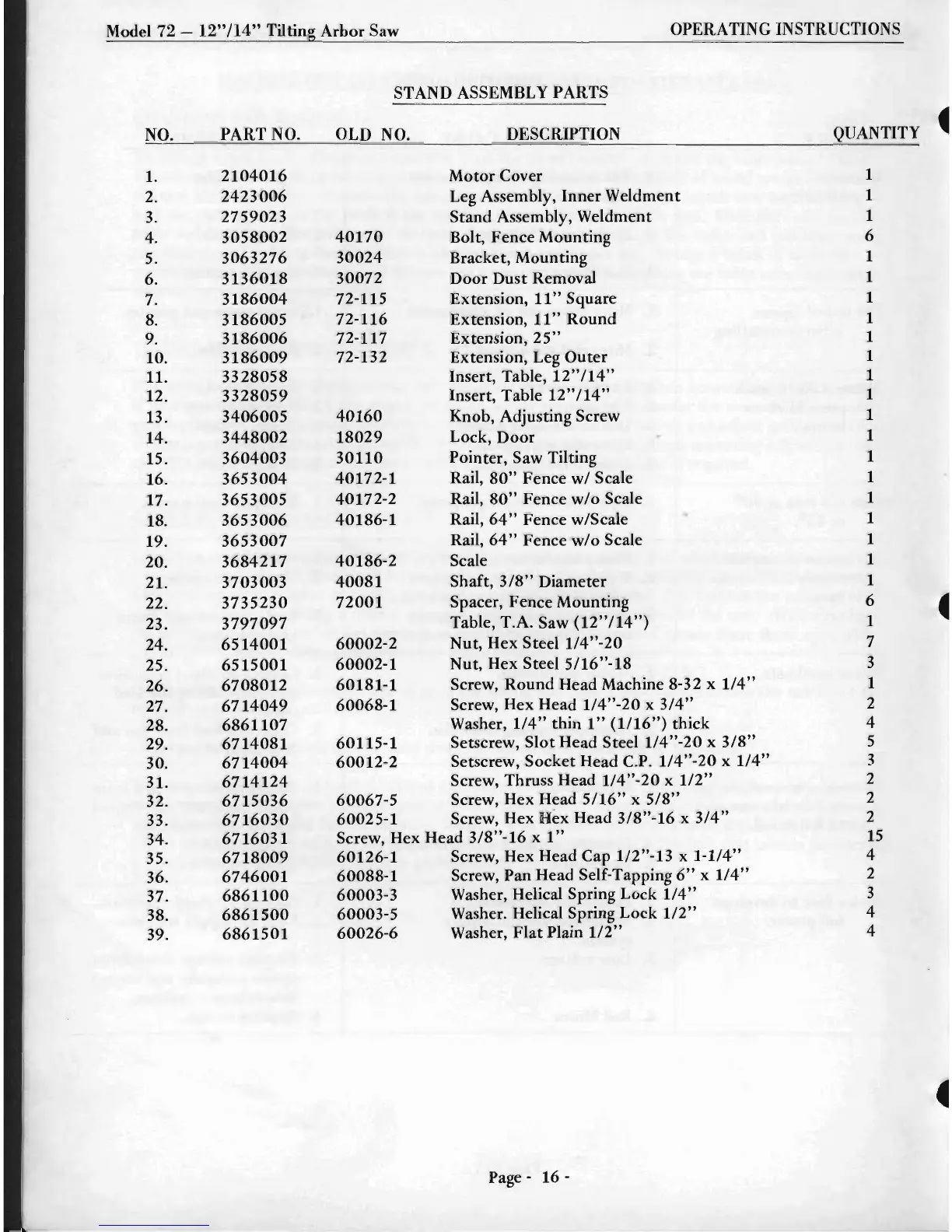

Powermatic 72 - Stand Assembly Parts

Model 72 - 12"/14" Tilting Arbor Saw
OPERATING INSTRUCTIONS
STAND ASSEMBLY PARTS
NO.
PART NO.
OLD NO.
DESCRIPTION
QUANTITY
4
1.
2104016
Motor Cover
1
2.
2423006
Leg Assembly, Inner Weldment
1
3.
2759023
Stand Assembly, Weldment
1
4.
3058002
40170
Bolt, Fence Mounting
6
5.
3063276
30024
Bracket, Mounting
1
6.
3136018
30072
Door Dust Removal
1
7.
3186004
72-115
Extension,
11" Square
1
8.
3186005
72-116
Extension,
11" Round
1
9.
3186006
72-117
Extension,
25"
1
10.
3186009
72-132
Extension, Leg
Outer
1
11.
3328058
Insert, Table, 12"/14"
1
12.
3328059
Insert, Table 12"/14"
1
13.
3406005
40160
Knob, Adjusting Screw
1
14.
3448002
18029
Lock, Door
1
15.
3604003
30110
Pointer, Saw Tilting
1
16.
3653004
40172-1
Rail,
80" Fence wI Scale
1
17.
3653005
40172-2
Rail,
80" Fence wlo Scale
1
18.
3653006
40186-1
Rail,
64" Fence wlScale
1
19.
3653007
Rail, 64" Fence wlo Scale
1
20.
3684217
40186-2
Scale
1
21.
3703003
40081
Shaft, 3/8" Diameter
1
22.
3735230
72001
Spacer, Fence Mounting
6
23.
3797097
Table, T.A. Saw (12"/14")
1
24.
6514001
60002-2
Nut, Hex Steel 114"-20
7
25.
6515001
60002-1
Nut, Hex Steel 5116"-18
3
26.
6708012
60181-1
Screw,
Round Head Machine 8-32 x 114"
1
27.
6714049
60068-1
Screw, Hex Head 114"-20 x
3/4"
2
28.
6861107
Washer, 114" thin 1" (1116") thick
4
29.
6714081
60115-1
Setscrew,
Slot Head Steel 114"-20 x 3/8"
5
30.
6714004
60012-2
Setscrew,
Socket Head c.P. 114"-20 x 114"
3
31.
6714124
Screw, Thruss Head 114"-20 x 1/2"
2
32.
6715036
60067-5
Screw, Hex Head
5/16" x 5/8"
2
33.
6716030
60025-1
Screw, Hex Hex Head 3/8"-16 x
3/4"
2
34.
6716031
Screw, Hex Head 3/8"-16 xl"
15
35.
6718009
60126-1
Screw, Hex Head Cap 112"-13 x 1-114"
4
36.
6746001
60088-1
Screw, Pan Head Self-Tapping
6" x 114"
2
37.
6861100
60003-3
Washer, Helical Spring
Lock 114"
3
38.
6861500
60003-5
Washer. Helical Spring
Lock 112"
4
39.
6861501
60026-6
Washer,
Flat Plain 112"
4
