Model 72 -
12"/14"
.Tilting Arbor Saw
OPERATING INSTRUCTIONS

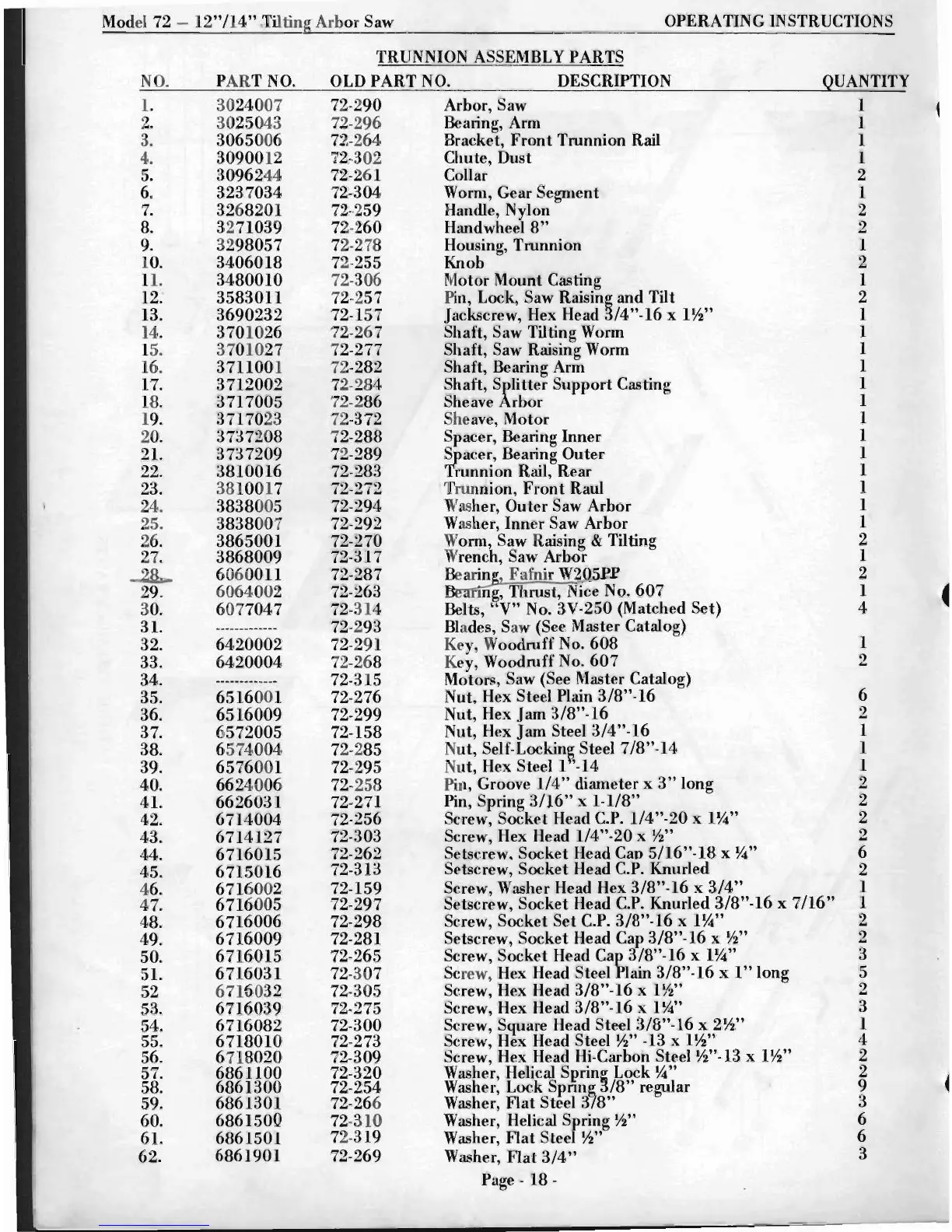

TRUNNION ASSEMBLY PARTS
NO.
PART
NO.
OLD PART
NO.
DESCRIPTION
QUANTITY
l.
3024007 72-290 Arbor, Saw
1
2.
3025043 72-296 Bearing, Arm
1
3. 3065006 72-264 Bracket,
Front
Trunnion Rail 1
4.
3090012 72-302 Chute, Dust 1
5.
3096244
72-261 Collar
2
6.
3237034 72-304 Worm, Gear Segment 1
7.
3268201 72-259
Handle, Nylon 2
8.
3271039
72-260
Handwheel8" 2
9.
3298057 72-278
Housing, Trunnion 1
10. 3406018
72-255 Knob
2
11.
3480010 72-306 Motor Mount Casting 1
12. 3583011 72-257
Pin, Lock, Saw Raisin§ and Tilt
2
13. 3690232 72-157
Jackscrew, Hex Head /4"-16 x
1W'
1
14.
3701026 72-267 Shaft, Saw Tilting Worm
1
15.
3701027 72-277 Shaft, Saw Raising Worm
1
16.
3711001
72-282 Shaft, Bearing Arm 1
17. 3712002
72-284
Shaft,
Stitter
Support Casting
1
18. 3717005 72-286
Sheave rbor 1
19. 3717023 72-372
Sheave, Motor
1
20.
3737208
72-288 Spacer, Bearing Inner
1
2l.
3737209
72-289
~acer,
Bearing Outer
1
22. 3810016
72-283 runnion Rail, Rear
1
23.
3810017
72-272 Trunnion, Front Raul
1
24. 3838005 72-294
Washer, Outer Saw Arbor
1
25. 3838007
72-292 Washer, Inner Saw Arbor
1
26. 3865001
72-270
Worm, Saw Raising
& Tilting
2
27.
3868009
72-317 Wrerich, Saw Arbor
1
-2L
6060011
72-287
~~'
Fafnir
W2Q5EP
2
29.
6064002
72-263
n~,
Thrust, Nice No.
607
1
30. 6077047
72-314
Belts, ' V" No. 3V-250 (Matched Set) 4
3l.
-------------
72-293
Blades, Saw (See Master Catalog)
32.
6420002 72-291 Key, Woodruff No. 608
1
33.
6420004 72-268 Key, Woodruff No.
607
2
34.
-------------
72-315
Motors, Saw (See Master Catalog)
35. 6516001
72-276
Nut, Hex Steel Plain 3/8"-16
6
36. 6516009 72-299
Nut, Hex Jam 3/8"-16
2
37. 6572005 72-158
Nut, Hex Jam Steel 3/4"-16
1
38. 6574004 72-285
Nut, Self-Lockinr, Steel 7/8"-14
1
39. 6576001
72-295
Nut, Hex Steel 1 '-14
1
40. 6624006 72-258
Pin, Groove
1/4"
diameter x
3"
long
2
4l.
6626031 72-271
Pin, Spring
3/l6"
x 1-1/8"
2
42.
6714004
72-256
Screw, Socket Head C.P. 1/4"-20 x
1~"
2
43.
6714127 72-303
Screw, Hex Head 1/4"-20 x
W'
2
44. 6716015
72-262
Setscrew. Socket Head
CaD
5/16"-18 x
~"
6
45. 6715016
72-313
Setscrew, Socket Head
C.P.
Knurled
2
46. 6716002 72-159
Screw, Washer Head Hex 3/8"-16 x
3/4"
1
47.
6716005
72-297
Setscrew, Socket Head
C.P.
Knurled 3/8"-16 x 7/16"
1
48. 6716006 72-298
Screw, Socket Set
C.P.
3/8"-16 x
1~"
2
49. 6716009 72-281
Setscrew, Socket Head Cap 3/8"-16 x
Yz"
2
50. 6716015
72-265 Screw, Socket Head
Ca~
3/8"-16 x
1~"
3
51. 6716031
72-307
Screw, Hex Head Steel lain 3/8"-16 x
1"
long
5
52 6716032
72-305
Screw,
Hex Head 3/8"-16 x
1Yz"
2
53. 6716039
72-275
Screw, Hex Head 3/8"-16 x
1~"
3
54. 6716082
72-300
Screw, Square
Head Steel 3/8"-16 x
2Yz"
1
55.
6718010
72-273
Screw, Hex Head Steel
Yz"
·13 x
1Yz"
4
56. 6718020 72-309
Screw, Hex Head Hi-Carbon Steel
Yz"-13
x
1Yz"
2
57.
6861100
72-320 Washer, Helical Sprin§ Lock
W'
2
58. 6861300 72-254 Washer, Lock
Spnn~
/8"
regular
9
59.
6861301
72-266
Washer, Flat Steel 3
8"
3
60. 6861500 72-310
Washer, Helical Sfring
Yz"
6
6l.
6861501
72-319
Washer, Flat Stee
Yz"
6
62.
6861901 72-269
Washer,
Flat
3/4"
3
Page
-
18-
