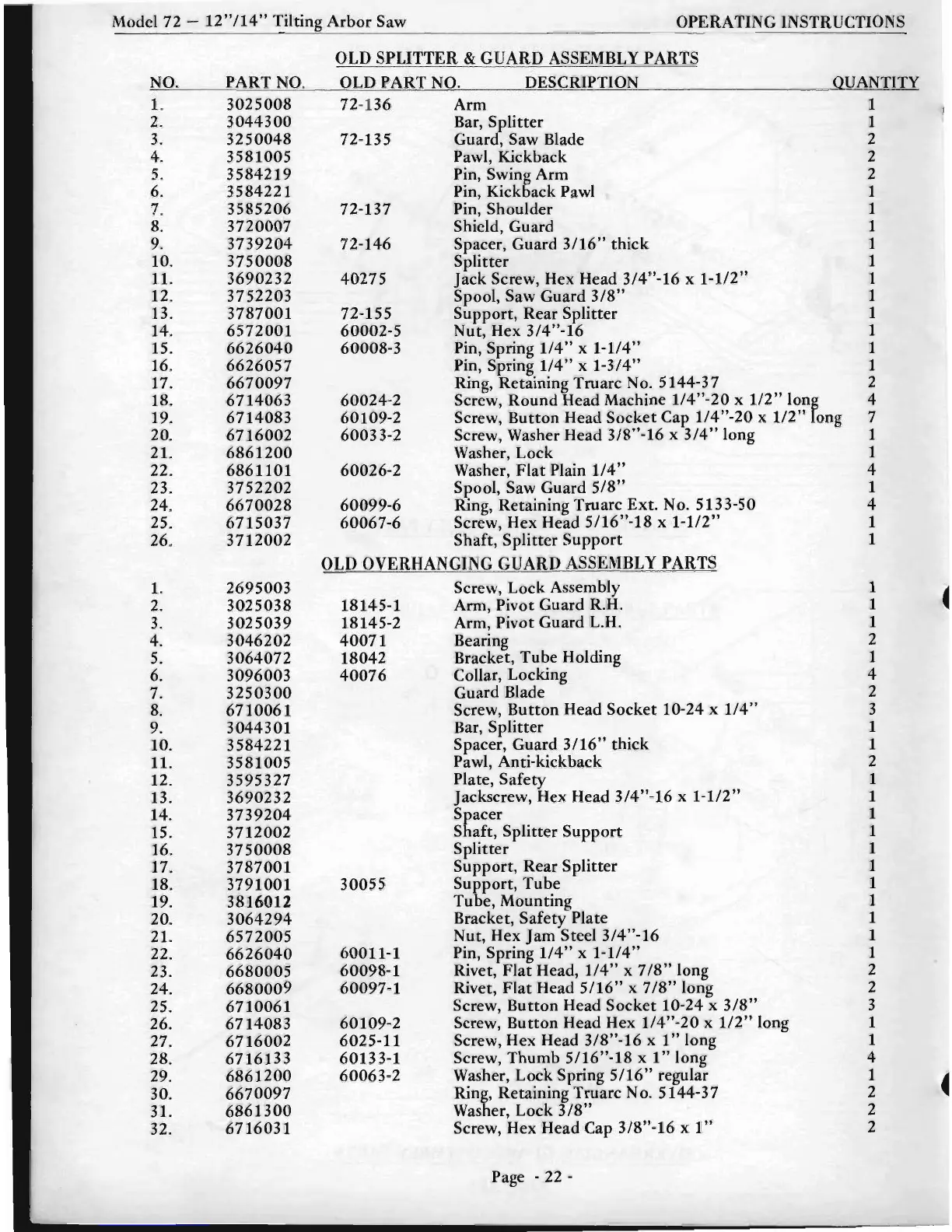

Model 72 -
12"/14"
Tilting Arbor Saw
OPERATING INSTRUCTIONS
OLD SPLITTER
& GUARD ASSEMBLY PARTS
NO. PART NO. OLD PART NO. DESCRIPTION
QUANTITY
I.
3025008 72-136
Arm
1
2.
3044300
Bar, Splitter
1
3.
3250048 72-135
Guard, Saw Blade 2
4. 3581005 Pawl, Kickback
2
5. 3584219
Pin, Swing Arm
2
6. 3584221
Pin, Kick ack Pawl
1
7. 3585206 72-137 Pin, Shoulder
1
8. 3720007 Shield, Guard
1
9. 3739204
72-146 Spacer, Guard
3/16"
thick
1
10. 3750008
Splitter 1
II.
3690232
40275
Jack Screw, Hex Head 3/4"-16 x 1-112"
1
12.
3752203 Spool, Saw Guard
3/8"
1
13. 3787001 72-155
Support, Rear Splitter 1
14. 6572001
60002-5 Nut, Hex 3/4"-16
1
15.
6626040
60008-3 Pin, Spring 114" x 1-114"
1
16.
6626057
Pin, Spring 114" x 1-3/4"
1
17.
6670097
Ring, Retaining Truarc No. 5144-37 2
18.
6714063
60024-2
Screw,
Round
Head Machine 114"-20 x 112" lonE 4
19. 6714083
60109-2 Screw, Button Head Socket Cap 114"-20 x 112" ong
7
20.
6716002
60033-2 Screw, Washer Head 3/8"-16 x
3/4"
long
1
2I.
6861200
Washer, Lock
1
22.
6861101 60026-2 Washer,
Flat
Plain 114" 4
23. 3752202 Spool, Saw Guard
5/8"
1
24.
6670028
60099-6
Ring, Retaining Truarc Ext. No. 5133-50
4
25
.
6715037
60067-6 Screw, Hex Head 5/16"-18 x 1-112"
1
26. 3712002 Shaft, Splitter
Support
1
OLD OVERHANGING GUARD ASSEMBLY PARTS
I.
2695003 Screw, Lock Assembly
1
2.
3025038
18145-1 Arm, Pivot Guard R.H. 1
3. 3025039
18145-2 Arm, Pivot Guard L.H. 1
4.
3046202
40071
Bearing
2
5.
3064072
18042 Bracket, Tube Holding 1
6. 3096003
40076
Collar, Locking 4
7.
3250300 Guard Blade
2
8.
6710061
Screw,
Button
Head Socket 10-24 x 114"
3
9.
3044301
Bar, Splitter
1
10. 3584221
Spacer, Guard
3/16"
thick
1
II.
3581005
Pawl, Anti-kickback
2
12.
3595327
Plate, Safety
1
13. 3690232
Jackscrew, Hex Head 3/4"-16 x 1-112"
1
14. 3739204
Sh
acer
1
15.
3712002 S aft, Splitter
Support
1
16. 3750008 Splitter
1
17.
3787001
Support
, Rear Splitter
1
18. 3791001 30055
SubPort, Tube
1
19.
3816012
Tu e, Mounting
1
20. 3064294
Bracket, Safety Plate
1
2I.
6572005
Nut, Hex
Jam
Steel 3/4"-16
1
22.
6626040
60011-1
Pin, Spring 114" x 1-114"
1
23
.
6680005 60098-1
Rivet,
Flat
Head, 114" x
7/8"
long
2
24.
6680009
60097-1
Rivet,
Flat
Head
5/16"
x
7/8"
long
2
25. 6710061
Screw,
Button
Head Socket 10-24 x
3/8"
3
26. 6714083
60109-2
Screw,
Button
Head Hex 114"-20 x 112" long 1
27.
6716002
6025-11 Screw, Hex Head 3/8"-16 x
1"
long
1
28.
6716133
60133-1
Screw,
Thumb
5/16"-18 x
1"
long 4
29.
6861200
60063-2 Washer, Lock Spring
5/16"
regular
1
30. 6670097
Rin~
Retaining Truarc No. 5144-37
2
3I.
6861300
Was
er, Lock
3/8"
2
32. 6716031
Screw, Hex Head Cap 3/8"-16 x
I"
2
Page - 22 -
