Model 72 -
12"/14"
Tilting
Arbor
Saw
OPERATING
INSTRUCTIONS

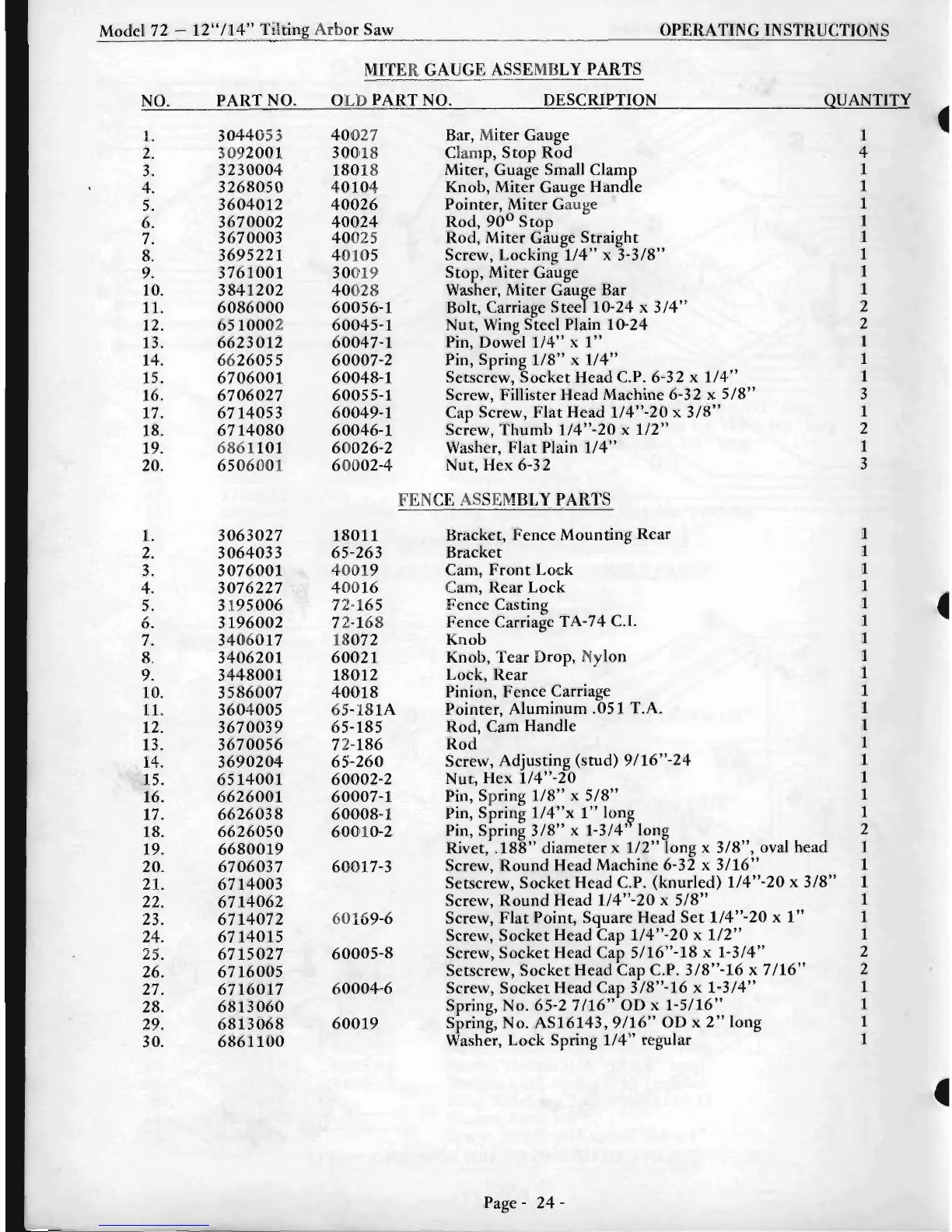

MITER
GAUGE
ASSEMBLY
PARTS
NO. PART NO. OLD PART NO.
DESCRIPTION QUANTITY
1.
3044053
40027
Bar, Miter Gauge
1
2.
3092001 30018 Clamp,
Stop
Rod
4
3.
3230004
18018
Miter, Guage Small Clam
t
1
4.
3268050
40104
Knob, Miter Gauge Hand e
1
5.
3604012
40026
Pointer, Miter Gauge 1
6. 3670002
40024
Rod,
90
0
Stop
1
7.
3670003
40025
Rod, Miter Gauge Straight 1
8.
3695221
40105
Screw, Locking 114" x
3-3/8"
1
9.
3761001
30019
Stop, Miter Gauge
1
10.
3841202
40028
Washer, Miter Gaufe Bar
1
11.
6086000
60056-1
Bolt, Carriage Stee 10-24 x
3/4"
2
12.
6510002
60045-1
Nut, Wing Steel Plain 10-24
2
13.
6623012
60047-1
Pin, Dowel 114"
xl"
1
14.
6626055
60007-2 Pin, Spring 118" x 114" 1
15.
6706001
60048-1
Setscrew,
Socket
Head
c.P.
6-32 x 114"
1
16.
6706027
60055-1
Screw, Fillister Head Machine 6-32 x
5/8"
3
17.
6714053
60049-1
Cap Screw,
Flat
Head 114"-20 x
3/8"
1
18.
6714080
60046-1
Screw,
Thumb
114"-20 x 112"
2
19.
6861101
60026-2
Washer,
Flat
Plain 114"
1
20.
6506001
60002-4 Nut, Hex 6-32 3
FENCE
ASSEMBLY
PARTS
1.
3063027 18011
Bracket, Fence Mounting Rear
1
2.
3064033
65-263
Bracket
1
3.
3076001
40019
Cam,
Front
Lock
1
4.
3076227
40016
Cam, Rear Lock
1
5.
3195006
72-165 Fence Casting
1
6. 3196002
72-168
Fence Carriage TA-74 c.1.
1
7.
3406017
18072 Knob
1
8.
3406201 60021
Knob, Tear Drop, Nylon
1
9.
3448001
18012
Lock, Rear
1
10. 3586007
40018
Pinion, Fence Carriage
1
11. 3604005
65-181A
Pointer, Aluminum .051 T.A.
1
12.
3670039
65-185 Rod, Cam Handle
1
13. 3670056
72-186
Rod
1
14.
3690204
65-260
Screw, Adjusting (stud)
9/16"-24
1
15.
6514001
60002-2
Nut, Hex 114"-20
1
16.
6626001
60007-1
Pin, Spring 118" x
5/8"
1
17.
6626038
60008-1 Pin, Spring 1I4"'x
I"
lon~
1
18.
6626050
60010-2
Pin, Spring
3/8"
x 1-3/4' long
2
19.
6680019
Rivet,
.188"
diameter x 112" long x
3/8",
oval head
1
20.
6706037
60017-3
Screw,
Round
Head Machine 6-32 x
3/16"
1
21.
6714003
Setscrew,
Socket
Head C.P. (knurled) 114"-20 x
3/8"
1
22.
6714062
Screw,
Round
Head 114"-20 x
5/8"
1
23.
6714072
60169-6
Screw,
Flat
Point, Square Head
Set
114"-20 x
I"
1
24.
6714015
Screw,
Socket
Head Cap 114"-20 x 112"
1
25.
6715027
60005-8
Screw,
Socket
Head Cap
5/16"-18
x
1-3/4"
2
26.
6716005
Setscrew,
Socket
Head Cap
c.P.
3/8"-16
x
7/16"
2
27.
6716017
60004-6
Screw,
Socket
Head Cap
3/8"-16
x
1-3/4"
1
28.
6813060
Spring, No. 65-2 7/,16" OD x
1-5/16"
1
29.
6813068
60019
Spring, No. AS16143,
9/16"
OD x
2"
long
1
30.
6861100
Washer, Lock Spring 114" regular
1
Page -
24-
