Model
72
-
12"/14"
Tilting Arbor Saw
OPERATING INSTRUCTIONS
A"
FEATHER BOARD" - ITS CONSTRUCTION
AND
USE
r
length
to
suit
"I
['
I
~
grain
line
LL
__
JllL:1
L
4"t08J

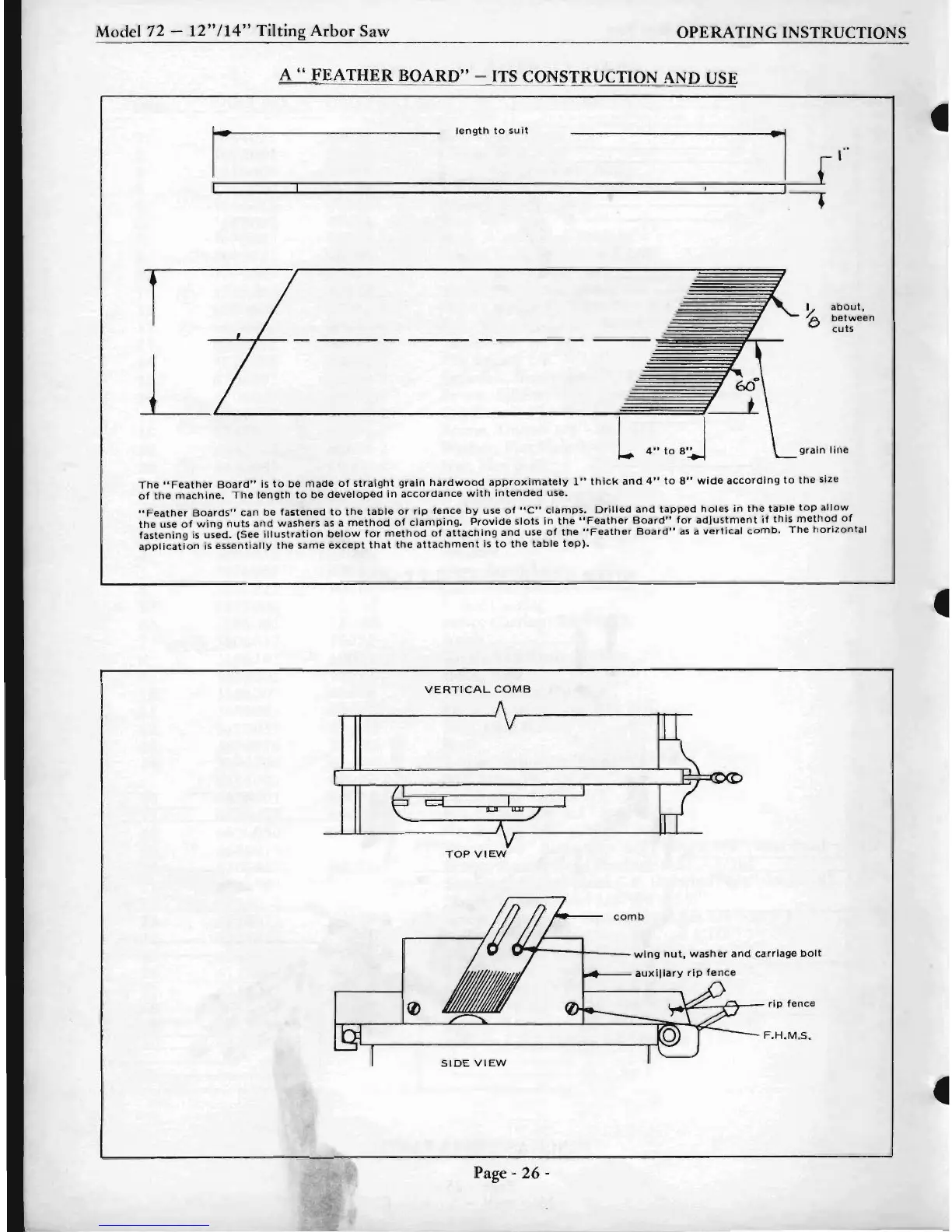

The
"Feather
Board"
Is
to
be
made
of
straight
grain
hardwood
approximately
I"
thick
and
4"
to
8"
wide
according
to
the
size
of
the
machine.
The
length
to
be
developed
in
accordance
with
intended
use.
"Feather
Boards"
can
be
fastened
to
the
table
or
rip
fence
by
use
of
"C"
clamps.
Drilled
and
tapped
holes
In
the
table
top
allow
the
use
of
wing
nuts
and
washers
as
a
method
of
clamping.
Provide
slots
In
the
"Feather
Board"
for
adjustment
if
this
method
of
fastening
is
used.
(See
illustration
below
for
method
of
attaching
and
use
of
the
"Feather
Board"
as
a
vertical
comb.
The
horizontal
application
Is
essentially
the
same
except
that
the
attachment
is
to
the
table
t",p).
VERTICAL
COMB
TOP
VIEW
comb
~""--~L--wlng
nut,
washer
and
carriage
bolt
1ooI~~--'I~--
rip
fence
F.H.M.S.
SIDE
VIEW
Page -
26-
